10A-86
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
K4M
10A

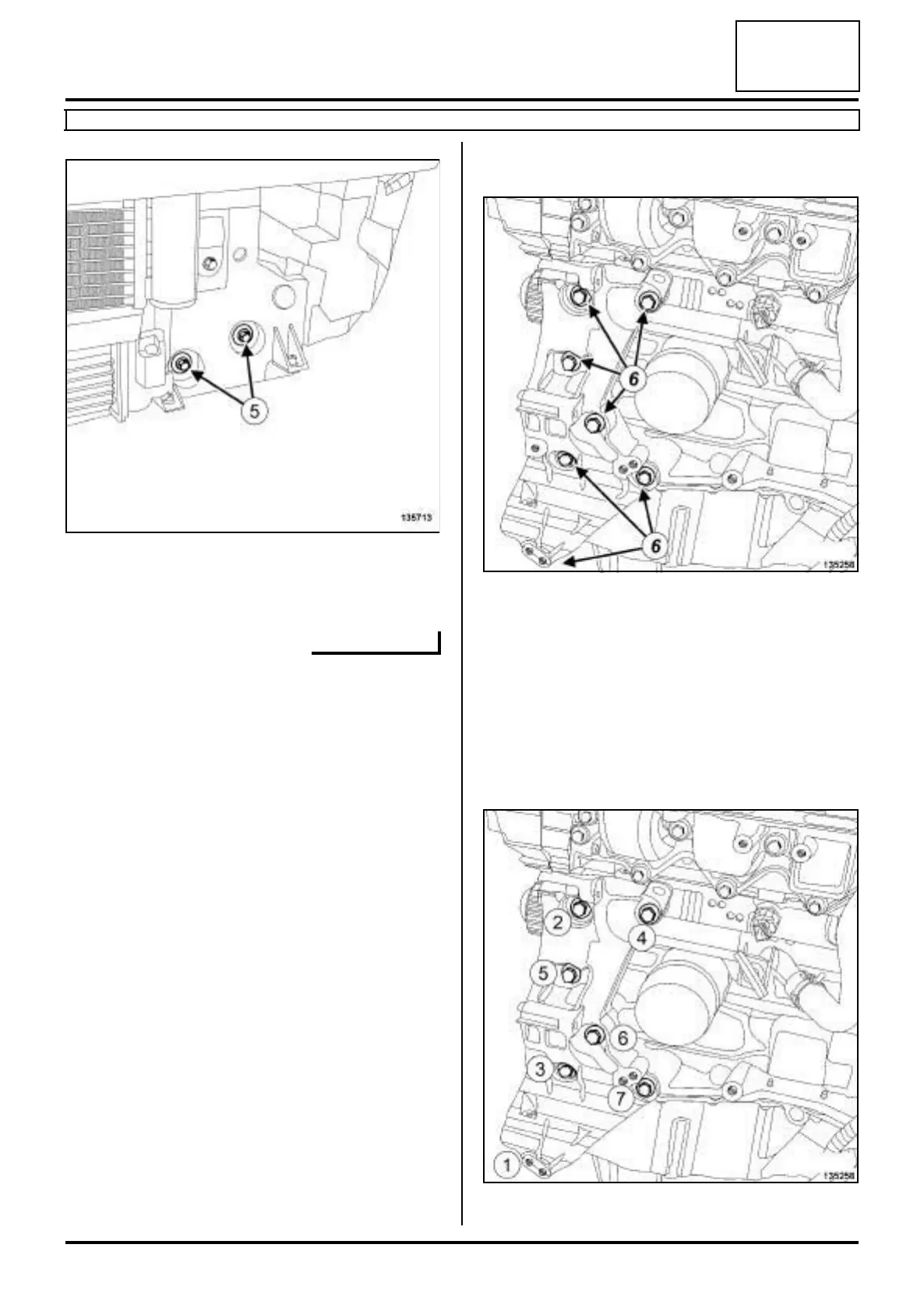

a Remove the lower bolts (5) from the front end panel.
a Move the front end panel aside.
a Remove:
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
-the air conditioning compressor (see Compressor:
Removal - Refitting) (62A, Air conditioning).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the multifunction support bolts (6) ,
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the multifunction support.
135713
135258
135258
