Renishaw XL-80 - Horizontal Axis

110 XL80 laser system
Linear
XL-80 Hardware
XL-80 Applications
Angular
Straightness
www�renishaw�com/xl80
Attach the straightness shutter to the laser in the
orientation shown�

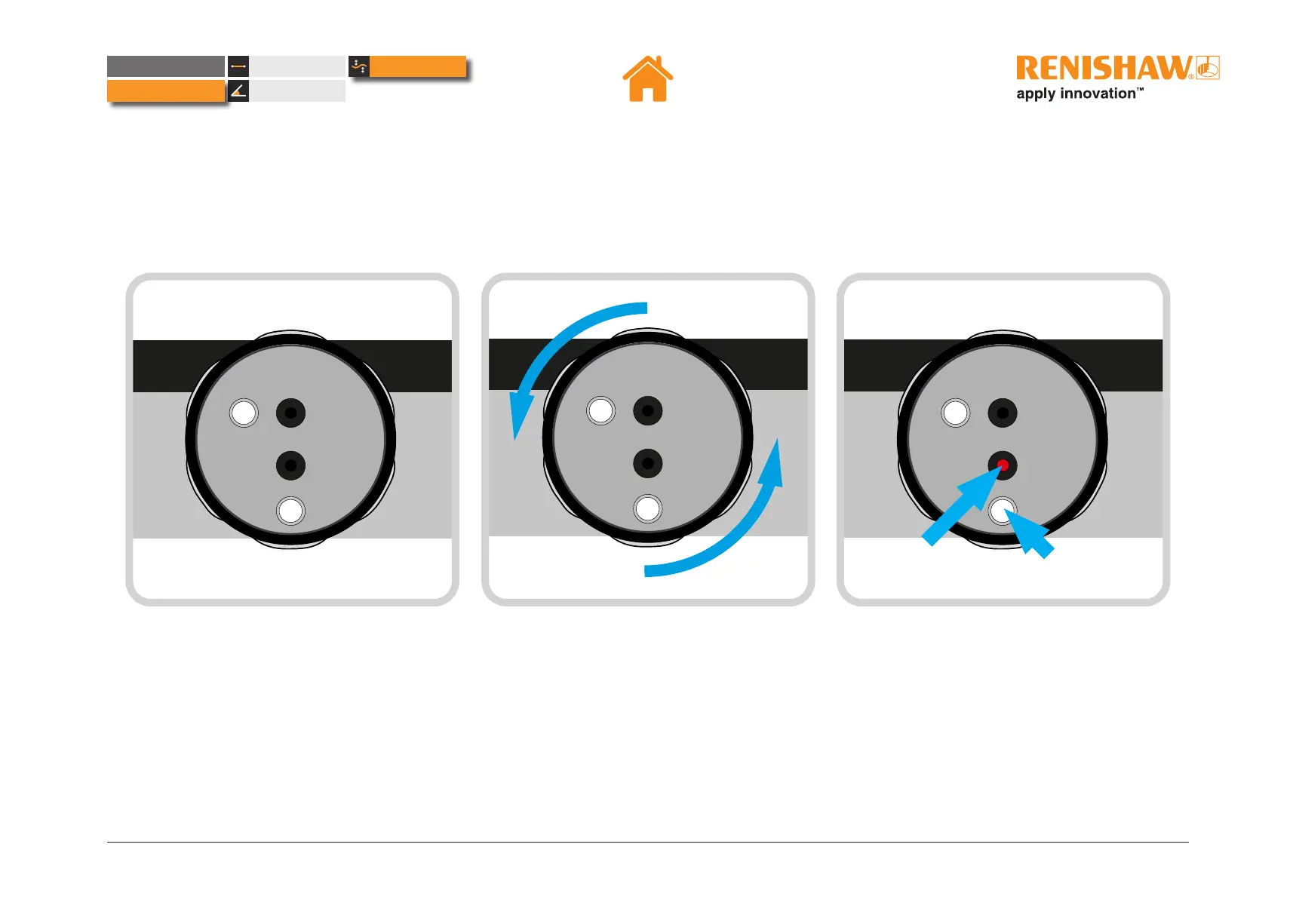

Rotate the black bezel of the laser shutter� Continue rotating until a reduced diameter beam
is emitted�
TargetReduced
beam aperture
Horizontal axis
Horizontal measurement plane
Straightness
XL-80 Applications
