XL80 laser system 12www.renishaw.com/xl80

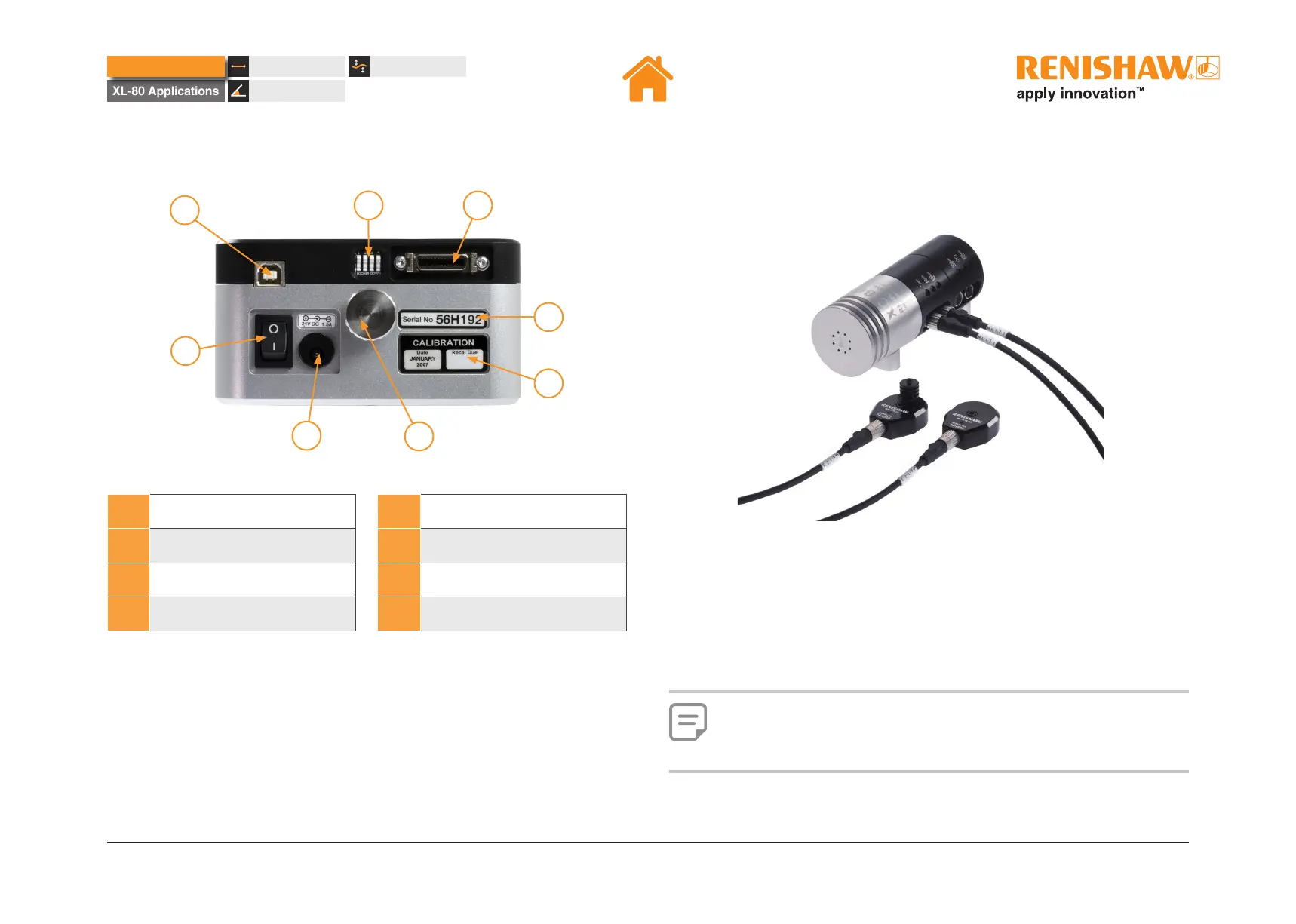

XL laser controls and indicators
2 3
4
5
6
7
8
1
1 USB socket
2 DIP switches
3 Auxiliary I/O
4 Serial number
5 Calibration due date
6 Pitch adjustment
7 24 Vdc power input socket
8 On/Off switch
XC-80 environmental compensator
The XL laser system specied accuracy for linear measurements is only valid
when used with a calibrated XC-80 environmental compensator�
Changes in air temperature, pressure and relative humidity affect the
wavelength of the laser light and subsequent measurement readings�
The XC-80 environmental compensator and its sensors very accurately
measure the environmental conditions and compensate the wavelength of the
laser beam for variations in air temperature, air pressure and relative humidity�
NOTE: For full details on XC-80 operation and specication, refer to
the XC-80 environmental compensator user guide (Renishaw part no�
F-9908-0294)�
