1.3 FlexiLogics Overview
1.3.1 What is a FlexiLogics series unit?
FlexiLogics Series units are compact, easy-handling block style programmable controller. It also has modular
expandability.
Configuration of FlexiLogics unit:
Each FlexiLogics base unit has to be configured using the FlexiSoft Software before connecting it to the system.
Normal Operation:
The FlexiLogics family is designed to offer practical PLC features in a compact and expandable design, and at the
same time offer a simple-to-use philosophy. An external powered FlexiLogics series base models by itself can be
used as a complete PLC system with optional built-in I/O points, or the system can be expanded with the addition of
up to eight I/O modules.
The FlexiLogics can be mounted in DIN rail plate. The base CPU and I/O modules are connected together via an
expansion port on the sides of the modules. A variety of I/O modules are available for flexible and optimal system
configuration.
R
H
F
L
0
1
0

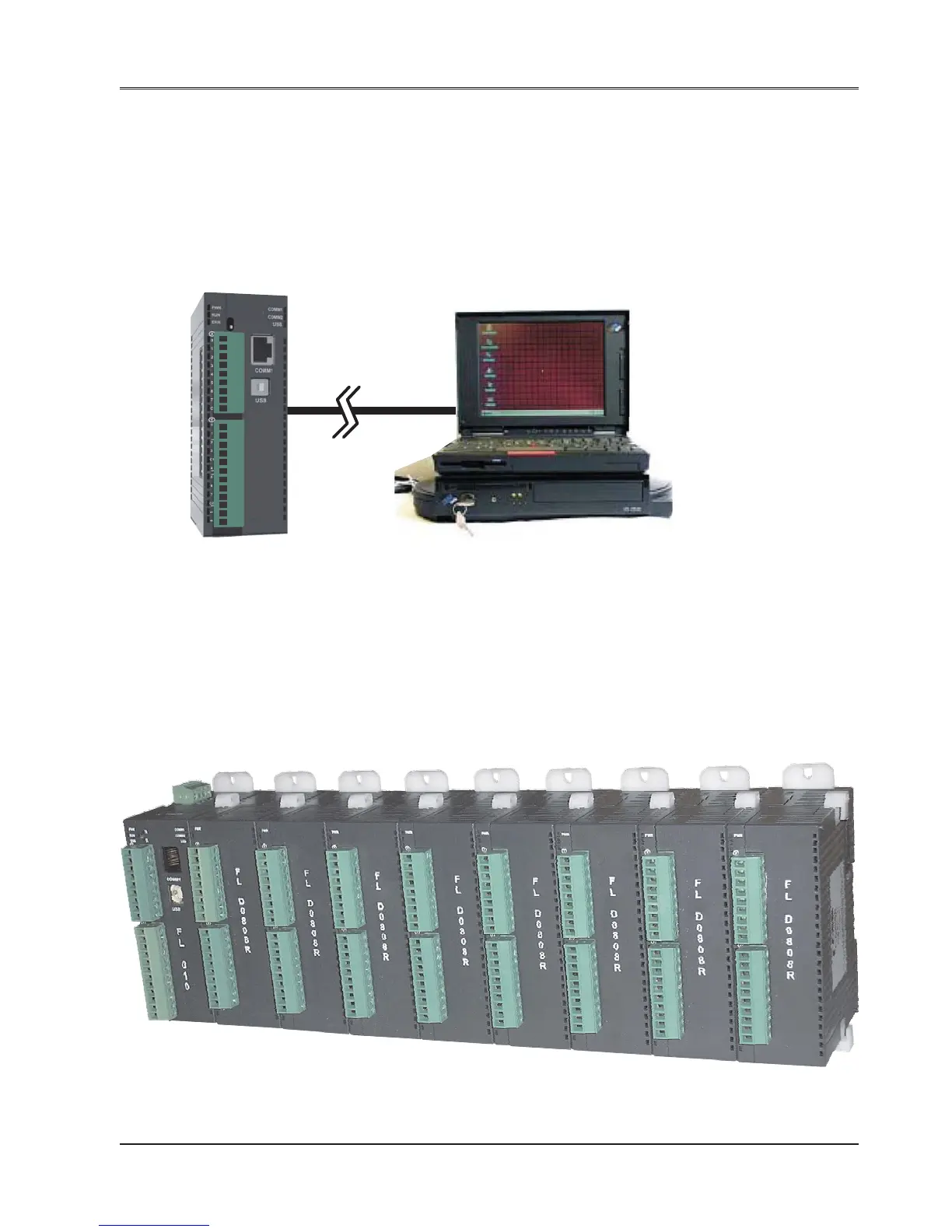

FIG-1: FlexiLogics Base with eight expansions
