Introduction
27
Doc No: UMAN\FL\0110
Rev. No.: 1.02B

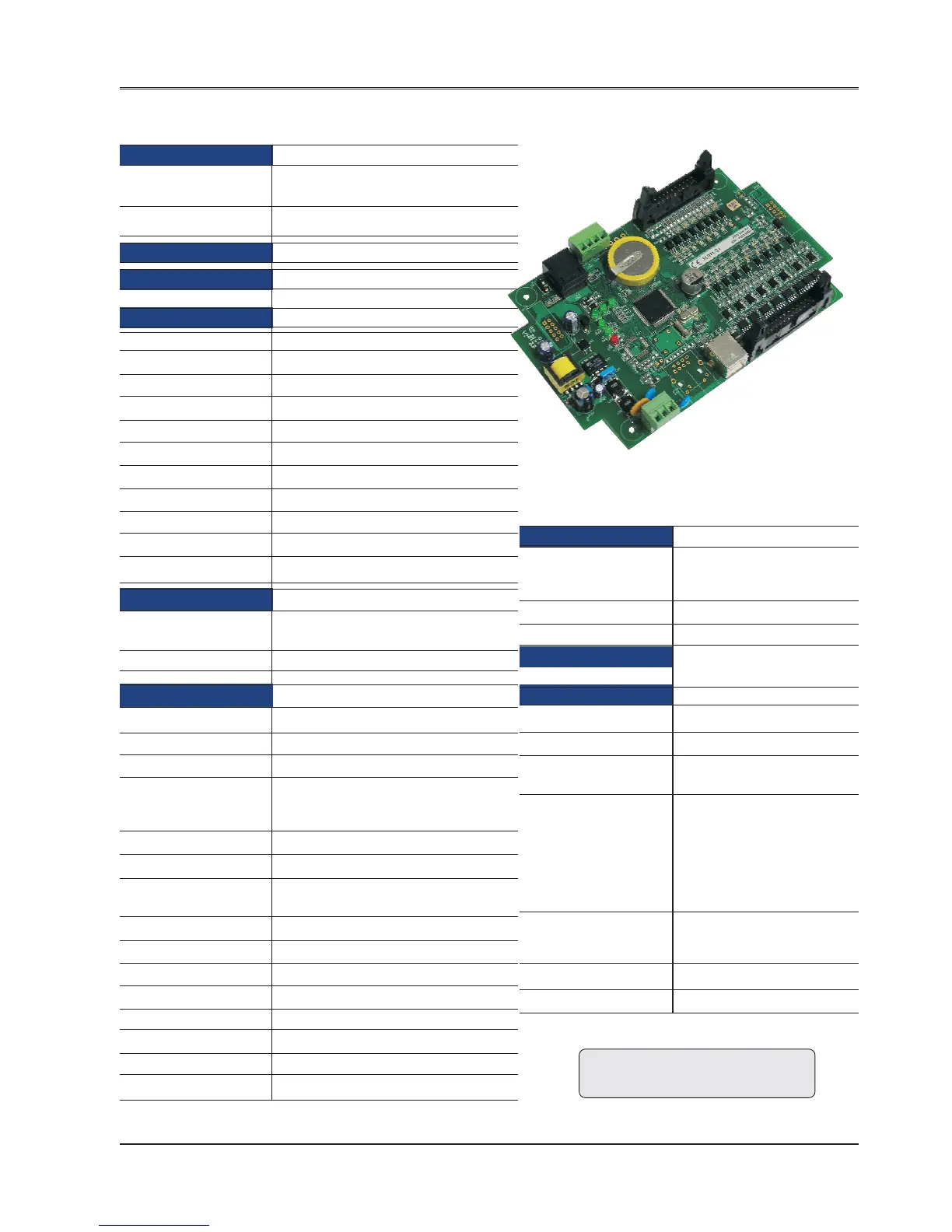

FL011
Power Supply 24VDC, 330mA
Input per channel 24 VDC, 5mA & 20mA for High Speed
inputs (CH1 & CH2)
Output per channel 24VDC; 0.5A
Approvals CE, UL
Memory
Total Program Memory 8K Steps
User Data
Input Registers 400 Words / 6400 pts. (Max.*)
Outout Registers 400 Words / 6400 pts. (Max.*)
Data Registers 4096 words
Retentive Registers 1400 words (EEPROM)
System Registers 256 words
Timer Registers 256 words
Counter Register 256 words
Timer Devices 256 points
System Devices 100 points
Counter Devices 256 points
Configuration Register 1600 Words / 25600 pts. (Max.*)
Communication Ports
2 COM Ports: COM1: RS232
COM2: 2-wire RS485
1 USB: For programming
Special Input Function
HS Counter 2HS Counter inputs, single
phase (50 KHZ), 32 Bit
Dual Phase 1X, 2X, 4X (5KHz)
Interrupt Input 2 Points
Connection method FRC Type
connector
General
Operating Temperature 0 to 55 deg.C.
Storage Temperature -20 to 85 deg.C.
Operating Humidity 10% to 90% (Non
condensing)
Vibration Tests Frequency 10Hz to 150hz
Displacement +/- 0.35mm
Crossover frequency 59Hz
Acceleration: 2g
Sweep rate : 1 octave per min
Duration : 20 Sweeps / Axis
app (2Hr 30min) Axis , X,Y, Z
Shock Test 25 g acceleration with 11 ms
3 Shocks each AXIS (a total
of 18 Shocks)
Mechanical Dimension 155mm X 102mm
Weight 180 gm
IO Specifications:
Expansion IO capacity None
Expansion Bus SPI (1 MHz)
Local IOs 32 (16 IN / 16 OUT)
Digital Inputs 16 Bidirectional Digital inputs (2 High
Speed inputs of upto 50KHz). 16 points
per common.
Rated Input voltage 24VDC
Rated Input Current Upto 5mA. (20mA for High Speed I/Ps)
Input Impedance 5.4Kohm (1.2Kohm for High Speed
i/ps)
Minimum ON voltage 9.6 VDC
Maximum OFF voltage 3.6 VDC
Turn ON time 10 msec
Turn OFF time 10 msec
Isolation Optically isolated from internal circuit
Digital outputs 16 PNP transistor outputs.
Output Capacity 0.5 A for transistor
Rated load 0.5 A at 24VDC for transistor
Note:
* : Depends upon I/O allocation.
