Renu Electronics FlexiLogics series - FLD0016 R (Relay Type Output)

Introduction
33
Doc No: UMAN\FL\0110
Rev. No.: 1.02B
FLD0016R (Relay Type output)
Digital Inputs 0
Digital outputs 16 Relay (Form A) output. 4
points per common
Rated load 230V / 2A, 30VDC / 2A
General
Mechanical Dimension 100mm X 35mm X 70mm
Weight Approx. 180 gm.

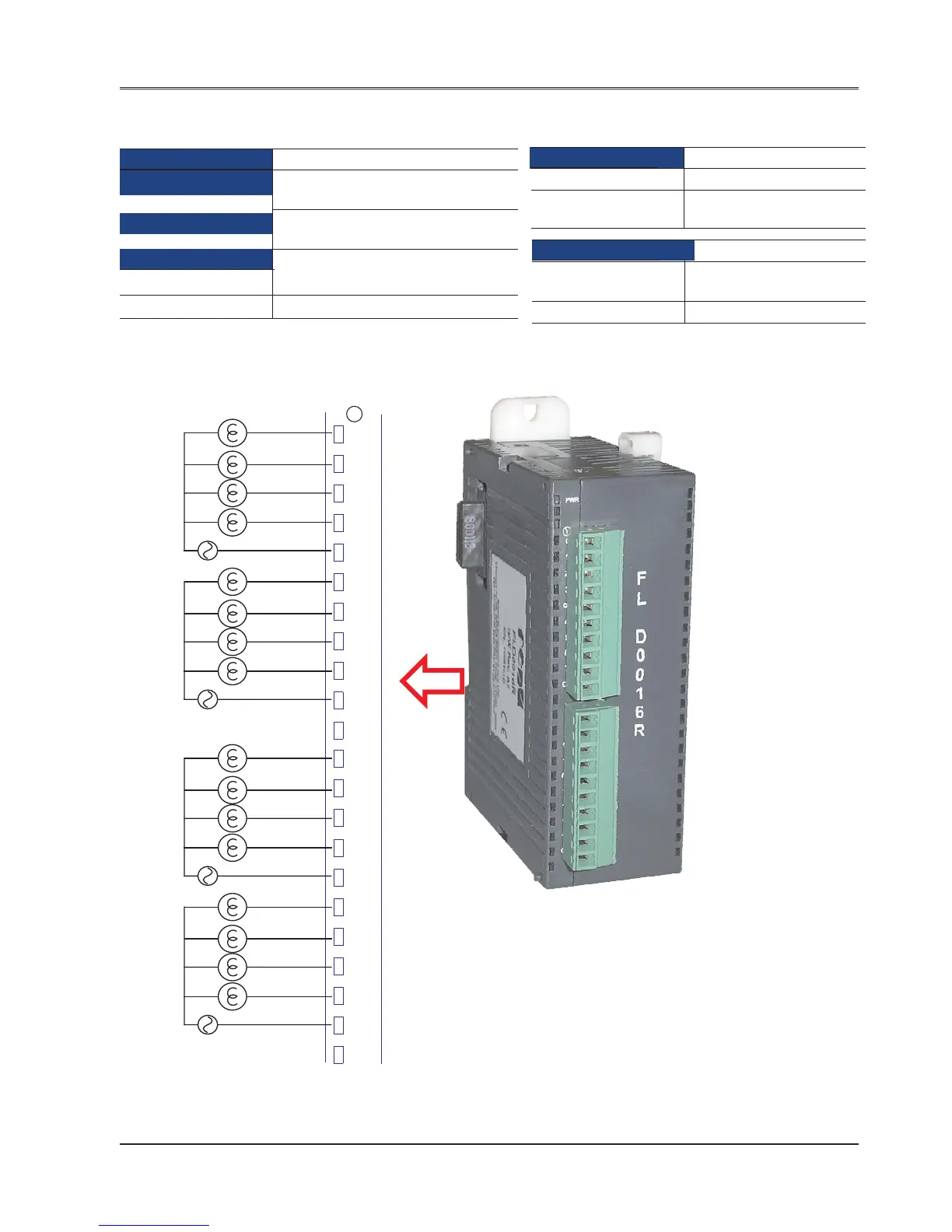

Wiring Diagram for FLD0016R
Power Rating (Back Plane)
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
Power Supply 24VDC, 300mA
Input per channel NA
Output per channel 230V, 2A / 30 VDC, 2A per
output
Y
0
1
2
3
C1
4
5
6
7
C2
8
9
10
11
C3
12
13
14
15
C4
L2
L4
L1
230 VAC
P
N
L3
L6
L8
L5
230 VAC
P
N
L7
L10
L12
L9
230 VAC
P
N
L11
L14
L16
L13
230 VAC
P
N
L15
*L1 to L16 are A.C. Load.
