Renu Electronics FlexiLogics series - FLD0016 N (NPN Type Transistor Output)

Introduction
32
Doc No: UMAN\FL\0110
Rev. No.: 1.02B
FLD0016N (NPN Type transistor output)
Digital Inputs 0
Digital outputs 16 NPN type Transistor output. 4
points per common
Rated load 500mA max for PNP and NPN type
transistor output
General
Mechanical Dimension 100mm X 35mm X 70mm
Weight Approx. 120 gm.

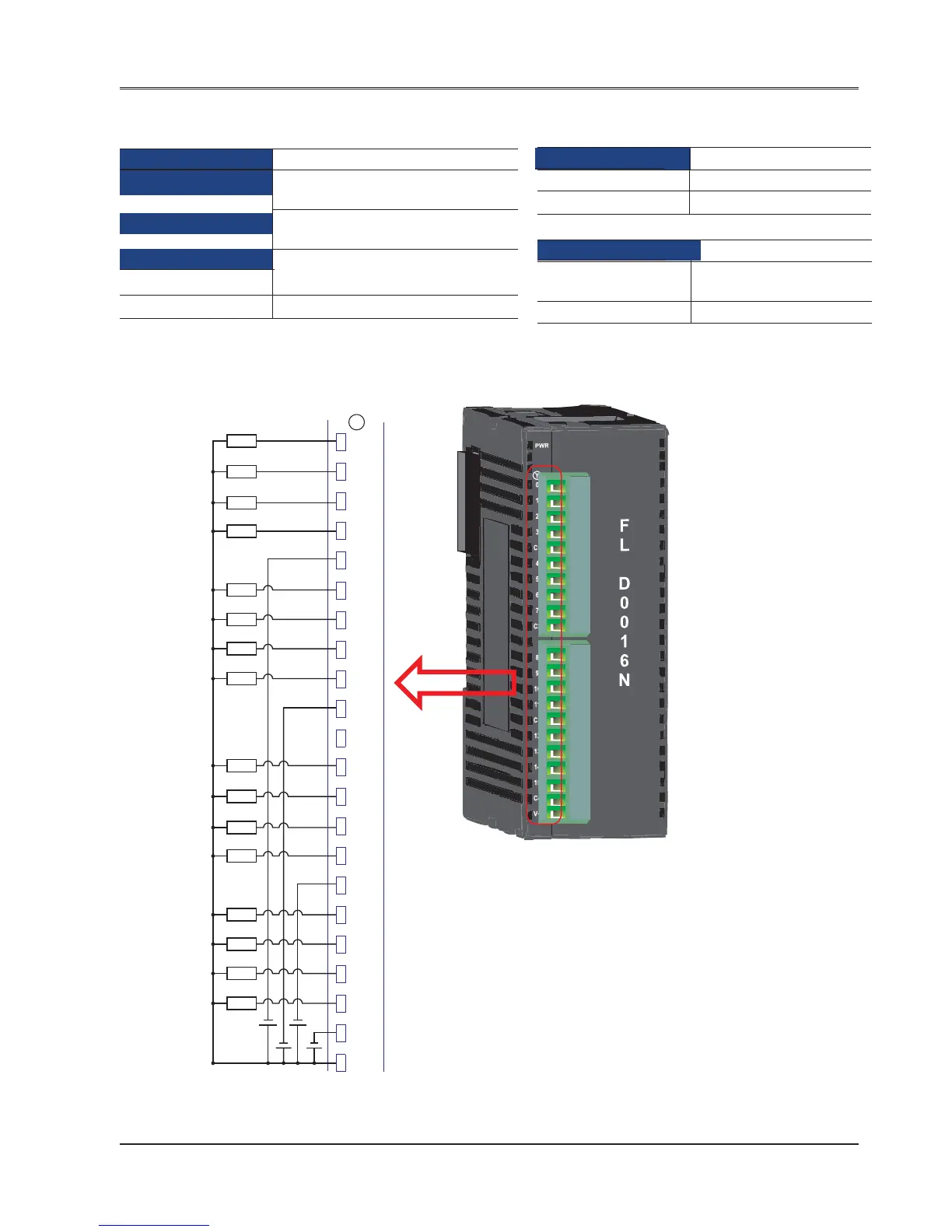

Wiring Diagram for FLD0016N
Y
0
1
2
3
C1
4
5
6
7
C2
L
L
L
L
L
L
L
L
8
9
10
11
C3
12
13
14
15
C4
+
+
-
+
-
L
L
L
L
L
L
L
L
+
-
+
-
Power Rating (Back Plane)
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
Power Supply 24VDC, 300mA
Input per channel NA
Output per channel 0.5A, 24VDC per output
