3.4 Procedure to launch ladder in FlexiSoft

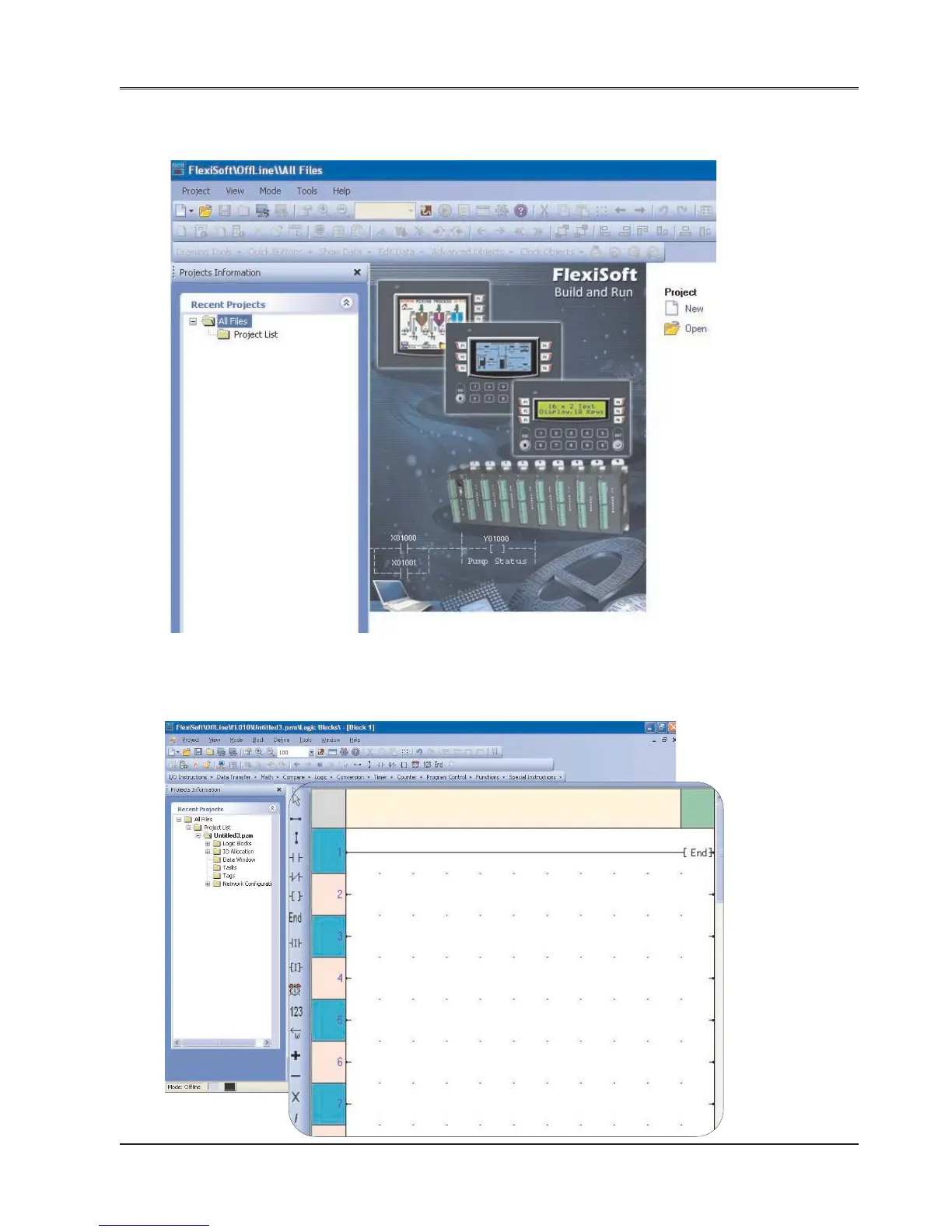

Launch FlexiSoft setup software on your PC. Below shown welcome screen will display.
To launch a ladder application either choose Project -> New option or click on New application icon.
Choose FlexiLogics unit and define “Project Configuration” window with the information required.
Click “OK”.
This will launch ladder editor to create an application as shown:
