Renu Electronics FlexiLogics series - Communication Cables

Hardware
58
Doc No: UMAN\FL\0110
Rev. No.: 1.02B
2.10 Communication Cables

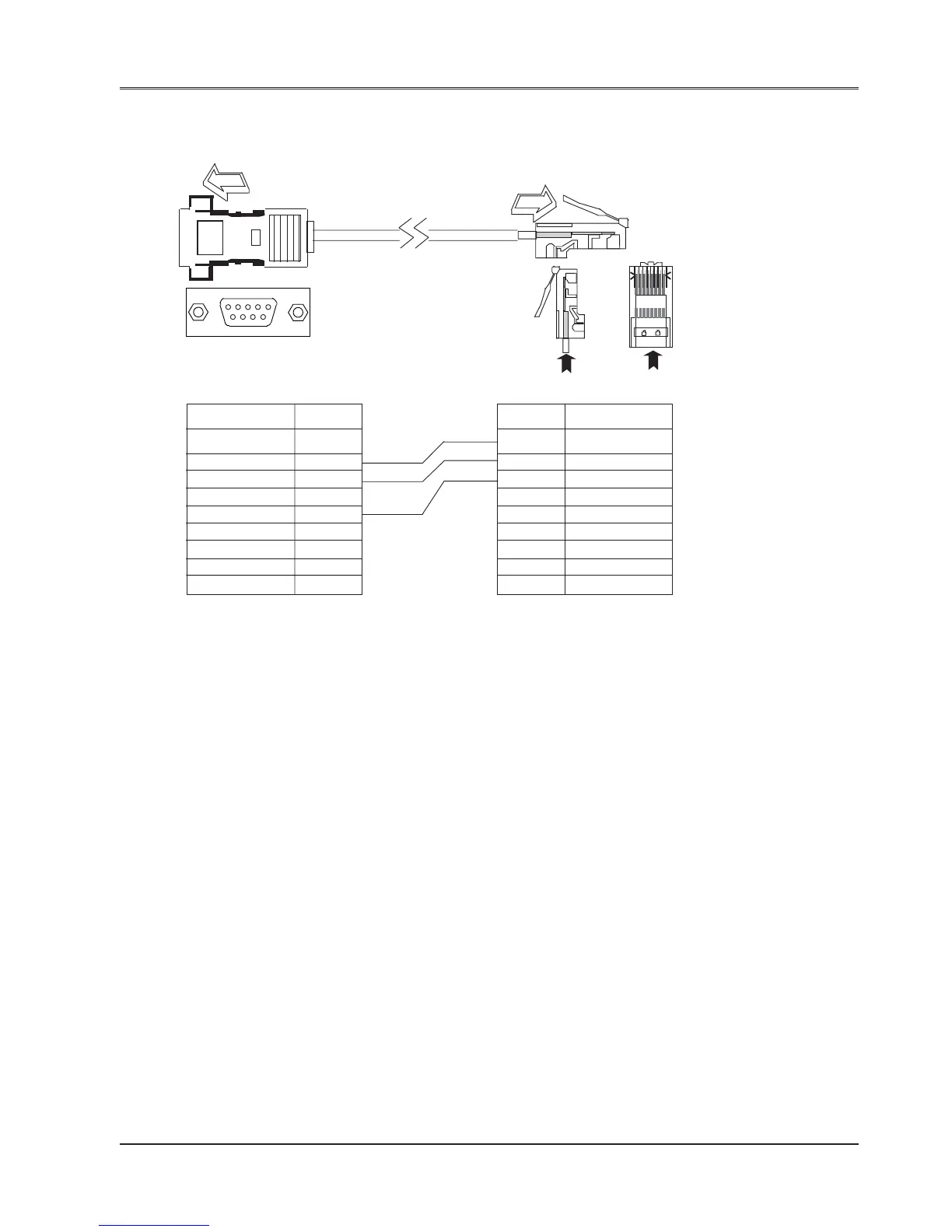

Programming cable for FlexiLogics units (IBM-H-005-00):
FlexiLogics SIDE
PC SIDE
2 mtr.
9
6
5
1
PC End
Pin 1
(Left side)
Pin 8
(Right side)
FRONT VIEW
R.H.S. VIEW
8 PIN MODULAR CONNECTOR
PINOUTS
DB9 FEMALE PINOUTS
Pin# Signals
1 TXD
2 RXD
3 SG & Shield
4
5
6
7
8
9
Signals Pin#
1
RXD 2
TXD 3
4
SG & Shield 5
6
7
8
9
