Introduction
42
Doc No: UMAN\FL\0110
Rev. No.: 1.02B

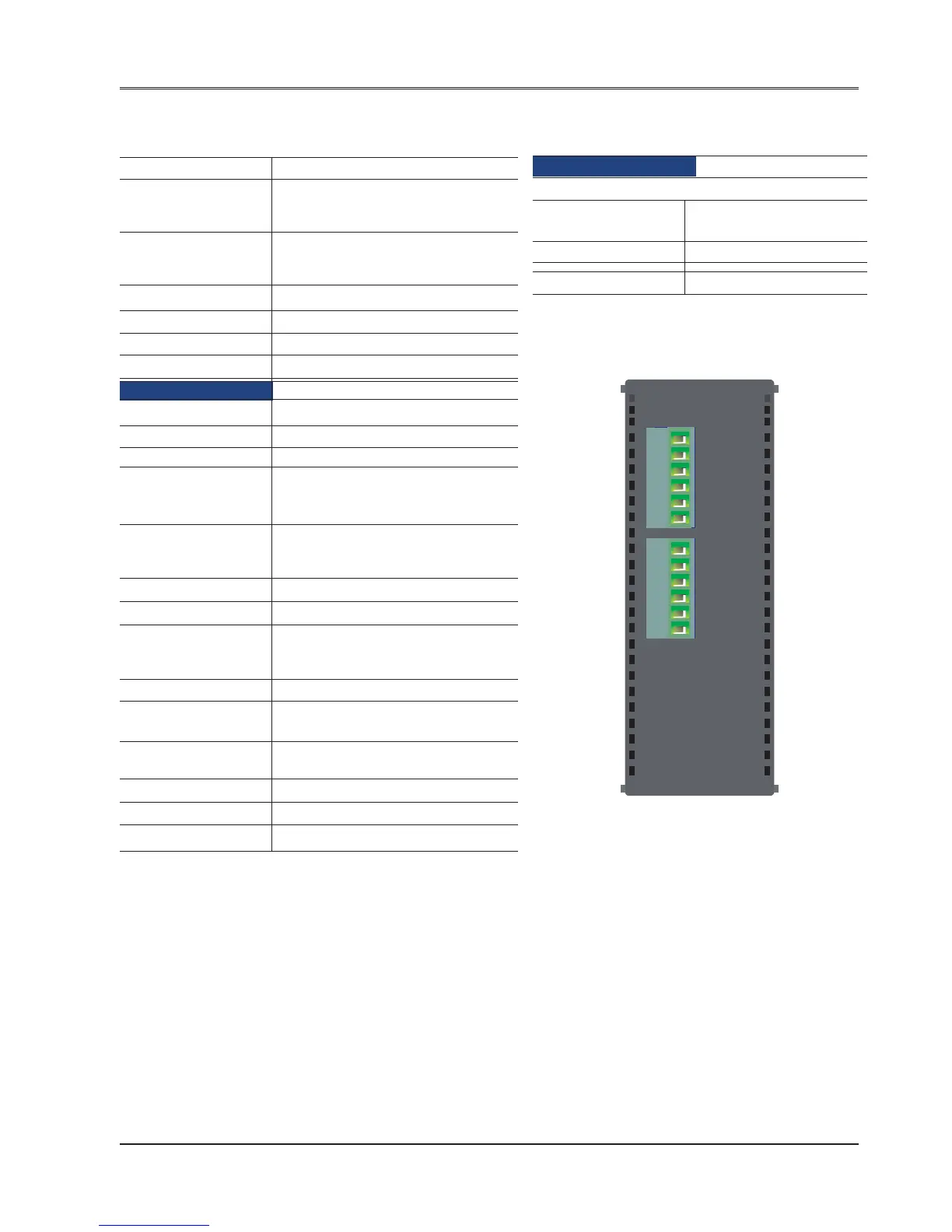

FLA0004
Analog Inputs 0
Analog Outputs 4 Output channels
Voltage 0 - 10 V (Min Load 1000 ohm)
Current 4 - 20 mA(Max load 500 ohm)
Isolation Isolation between analog and digital
section. No interchannel isolation.
Power supply is isolated
Connection method Removable terminals (3.81mm pitch)
Resolution 16 Bit
Accuracy 0.2 % of Full Scale
Nonlinearity 0.04% Max.
General
Operating Temperature 0 to 55 Degree.
Storage Temperature (-20) to 85 deg.C.
Operating Humidity 10 to 90 % (Non condensing)
Vibration 10Hz to 150Hz ,displacement of
0.2 mm (peak) (3 mutually
perpendicular axes)
Shock 490.5 m/s2,2 half-sine shocks per
axis, on 3 mutually perpendicular
axes)
Mechanical Dimension 100mm X 35mm X 70mm
Weight Approx. 155 gm.
FTB IEC61000-4-4 [2.2kV (Power- Direct
(Fast Transient / Burst) Injection), 1.2KV (I/O - Capacitive
clamp).]
Electrostatic discharge IEC61000-4-2 Level 3
Electromagnetic field IEC61000-4-3, 10 V/m AM modulation
(80 MHz to 1 GHz)
RF Immunity IEC61000-4-6, 10 V/m AM modulation
(0.15MHz to 80 MHz)
Dumped Oscillatory wave IEC61000-4-12
Surge Immunity IEC61000-4-5 Level 2
Radiated emission EN50081-2
Power Rating (Back Plane)
Digital Side: Power derived from expansion slot
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
Power Supply: 24VDC, 150mA
