Introduction
40
Doc No: UMAN\FL\0110
Rev. No.: 1.02B

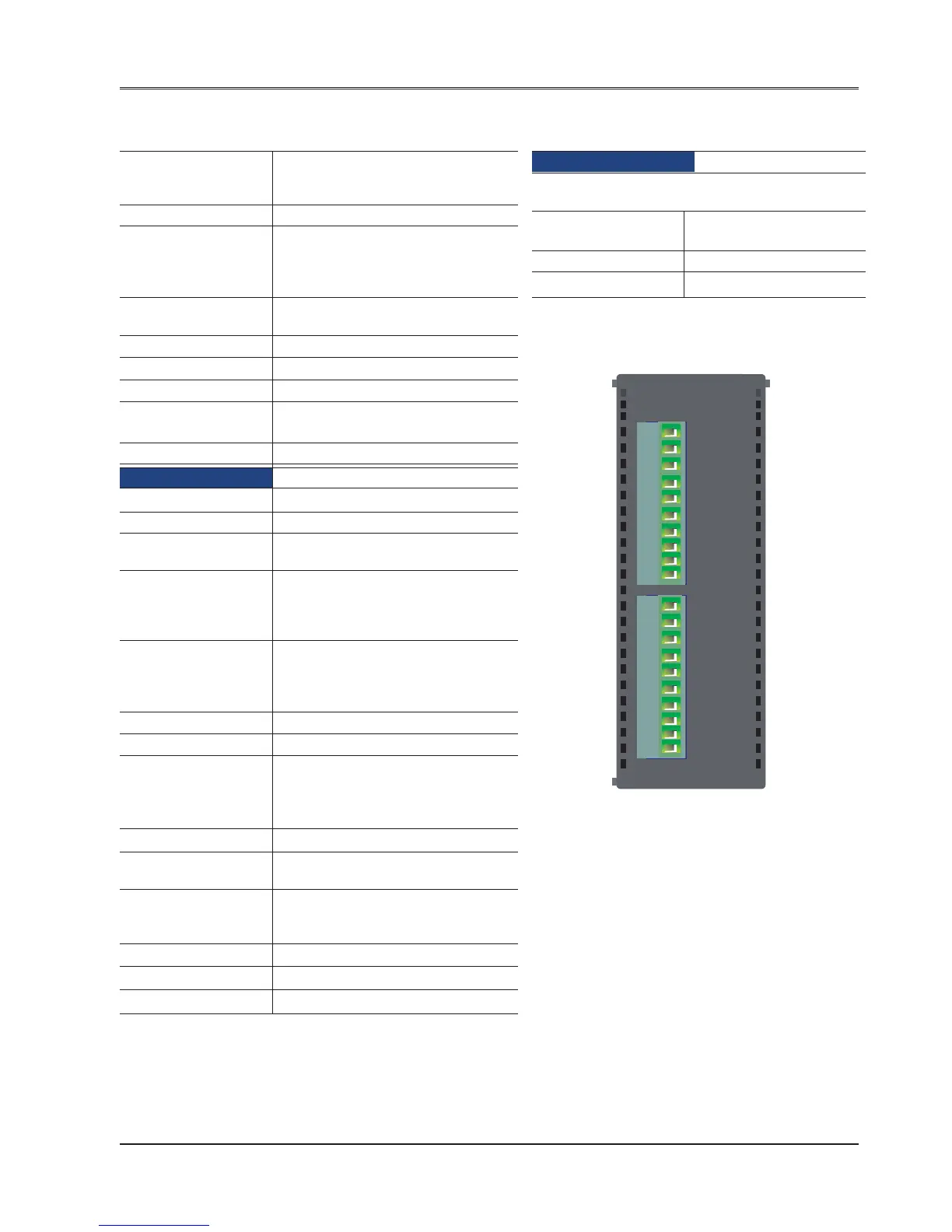

FLA0800R
Analog Inputs 8 input channels
RTD PT100
Analog Outputs 0
Isolation Isolation between analog
and digital section. No
interchannel isolation.
Power supply is isolated
Connection method Removable terminals
(3.81mm pitch)
Resolution 16 Bit
Accuracy 0.2 % of Full Scale
Nonlinearity 0.04% Max.
Input Impedence 470K ohm (voltage mode)
100 ohm (Current mode)
Temperatur Drift 60 ppm
General
Operating Temperature 0 to 55 Degree.
Storage Temperature (-20) to 85 deg.C.
Operating Humidity 10 to 90 %
(Non condensing)
Vibration 10Hz to 150Hz ,displace-
ment of 0.2 mm (peak) (3
mutually perpendicular
axes)
Shock 490.5 m/s2,2 half-sine
shocks per axis, on 3
mutually perpendicular
axes)
Mechanical Dimension 100mm X 35mm X 70mm
Weight Approx. 155 gm.
FTB IEC61000-4-4 [2.2kV (Fast
Transient / Burst) (Power- Direct Injection),
1.2KV (I/O - Capacitive
clamp).]
Electrostatic discharge IEC61000-4-2 Level 3
Electromagnetic field IEC61000-4-3, 10 V/m AM
modulation (80 MHz to 1 GHz)
RF Immunity IEC61000-4-6, 10 V/m AM
modulation (0.15MHz to 80
MHz)
Dumped Oscillatory wave IEC61000-4-12
Surge Immunity IEC61000-4-5 Level 2
Radiated emission EN50081-2
Power Rating (Back Plane)
Digital Side: Power derived from expansion slot
connector
Voltage Rating 3.75 VDC derived from
base model
Current Rating Upto 80mA
Power Supply: 24VDC, 100mA
