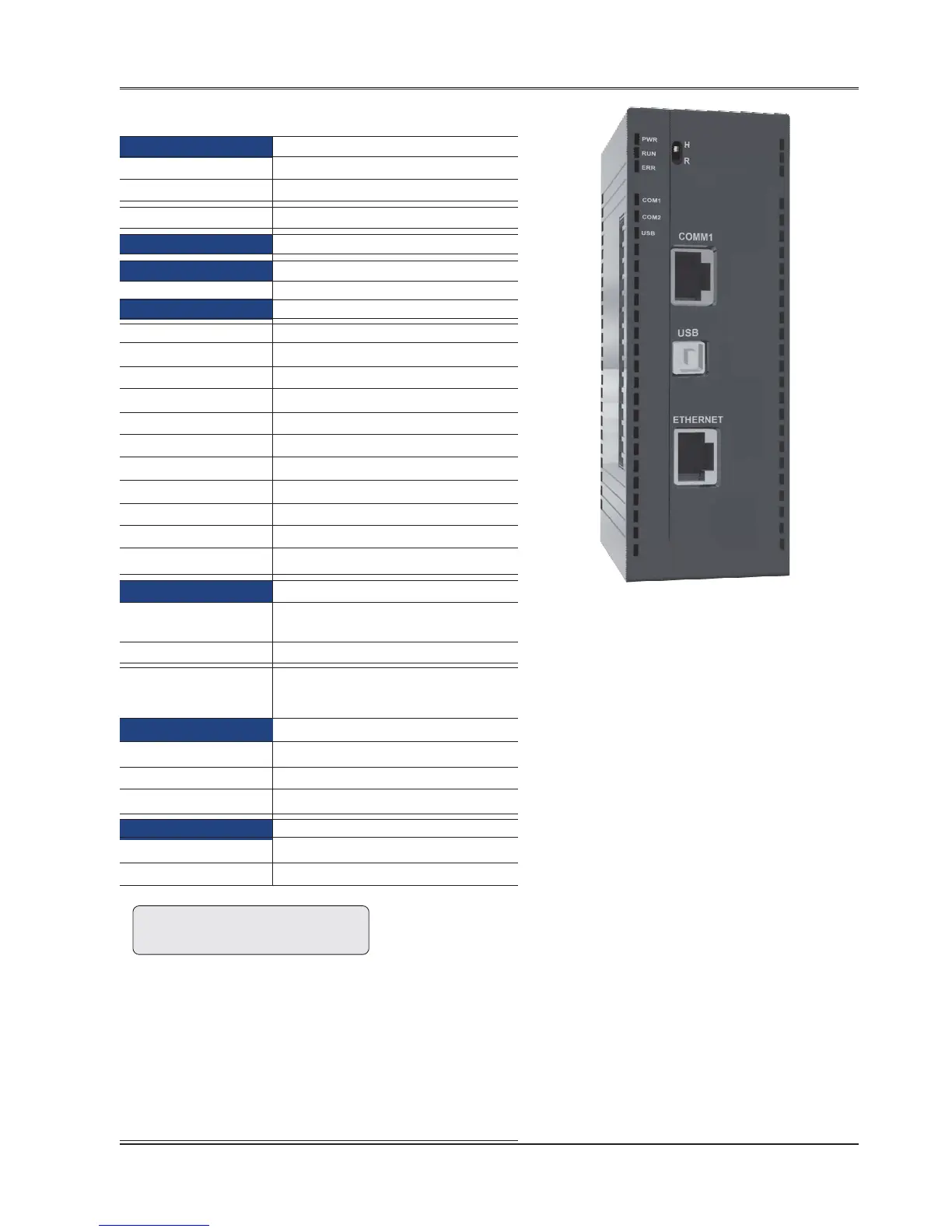

FL050
F
L
0
5
0
Power Supply 24VDC, 150mA
Input per channel NA
Output per channel NA
Standards CE, UL
Memory
Total Program Memory 8K Steps
User Data
Input Registers 400 Words / 6400 pts. (Max.*)
Outout Registers 400 Words / 6400 pts. (Max.*)
Data Registers 4096 words
Retentive Registers 1400 words (EEPROM)
System Registers 256 words
Timer Registers 256 words
Counter Register 256 words
Timer Devices 256 points
System Devices 100 points
Counter Devices 256 points
Configuration Register 1600 Words / 25600 pts. (Max.*)
Communication Ports
2 COM Ports: COM1: RS232/RS485
COM2: 2-wire RS485
1 USB: For programming
1 Ethernet: 10/100 MBBS
For PLC communication and
Configuration
Note:
* : Depends upon I/O allocation.
IO Specifications:
Expansion IO capacity 8 expansion modules
Expansion Bus SPI (1 MHz)
Local I/Os None
General
Mechanical Dimension 100mm X 35mm X 70mm
Weight Approx. 125 gm.
