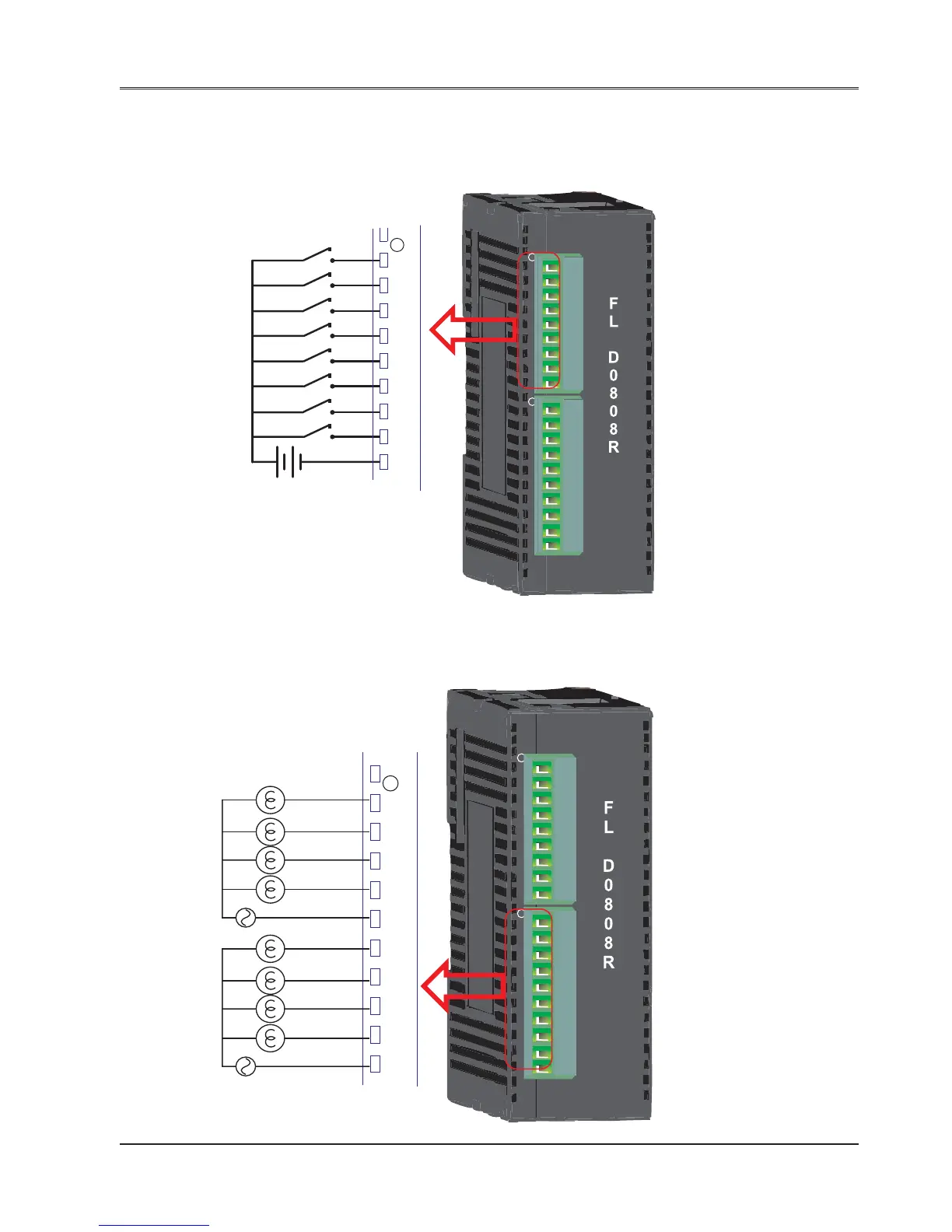

Wiring Diagram for FLD0808R:
1. Wiring diagram for testing digital inputs:
2. Wiring diagram for output connections:
X0
X1
X2
X3
X4
X5
X6
X7
24VDC
+
-
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
C
X
0
1
2
3
4
5
6
7
C
X
0
1
2
3
4
5
6
7
C
Y
PWR
0
1
2
3
C1
4
5
6
7
C2
Closing Swx will turn on respective inputs
X
0
1
2
3
4
5
6
7
C
Y
PWR
0
1
2
3
C1
4
5
6
7
C2
*L1 to L8 are A.C. Load.
Y
0
1
2
3
C1
4
5
6
7
C2
L2
L4
L1
230 VAC
P
N
L3
L6
L8
L5
230 VAC
P
N
L7
