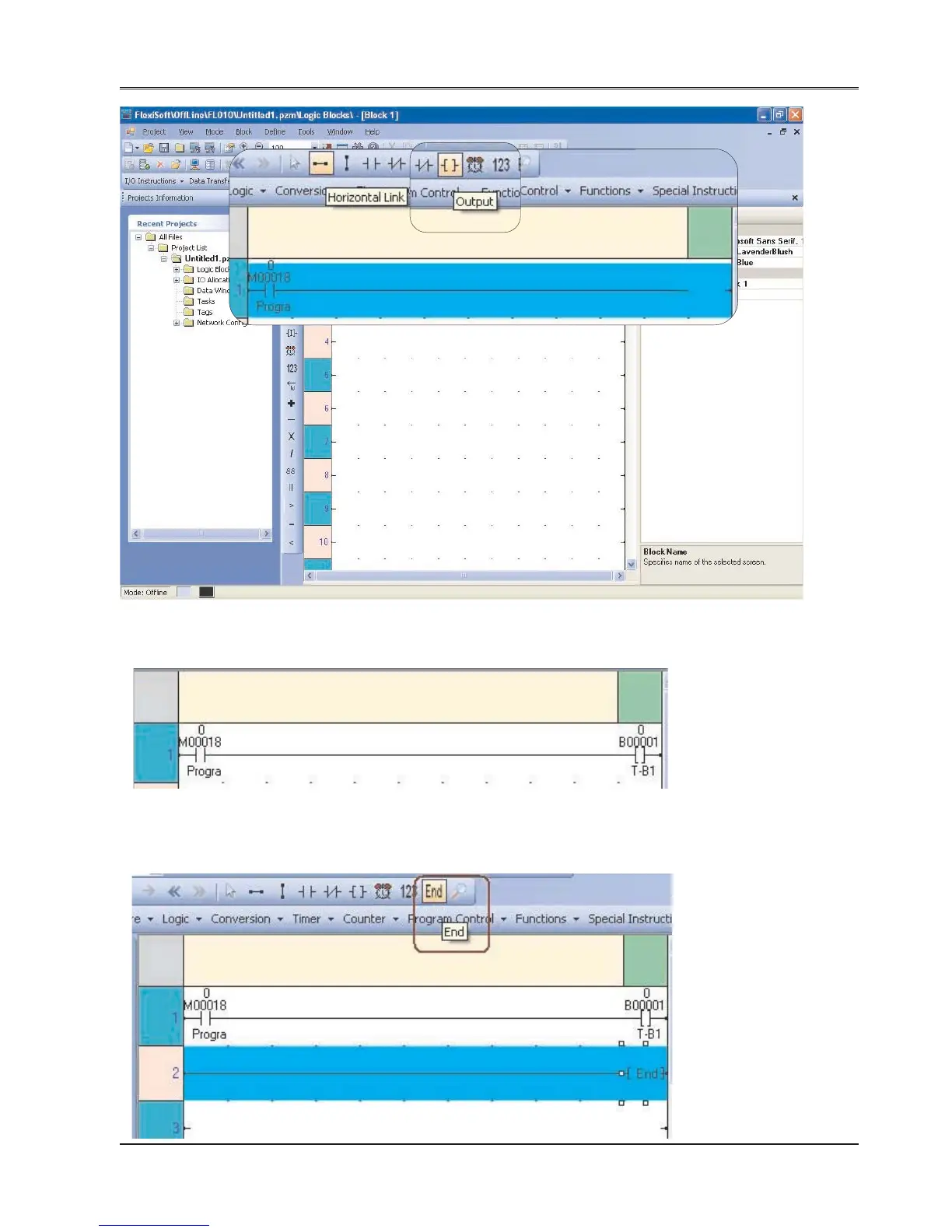

Complete the rail using “Horizontal Link” command, then put “Output” command.
User can also directly put “Output” link to the last right side point of the rail. This will complete the command. as
shown below:
For output command also, define tag address and name from the “Instruction Properties” window seen to the right
side of the application window.
Put “End” instruction as shown below:
