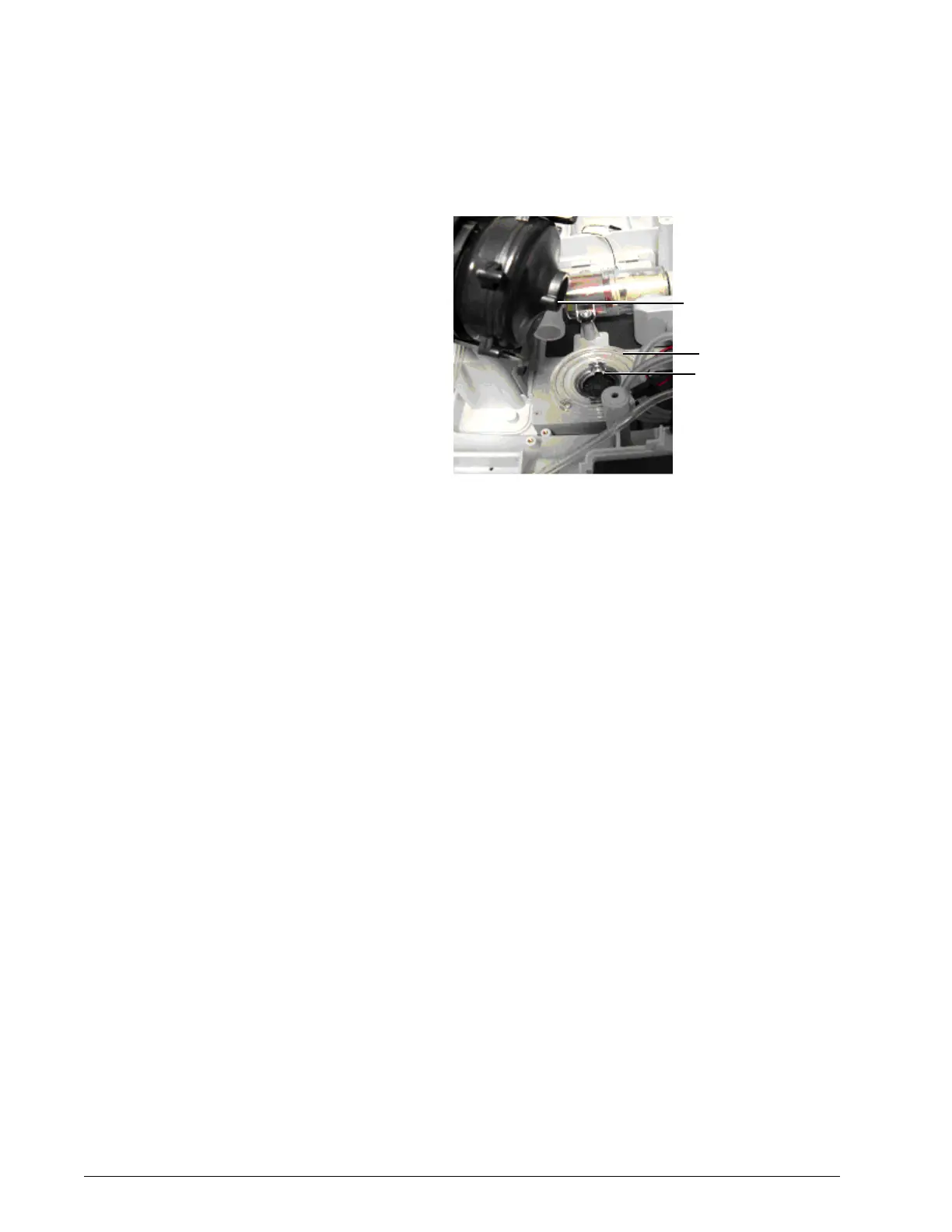

Figure 8-15: Aligning blower tabs
5. Pull the blower from the silicone gasket.
NOTE: When replacing the blower and silicone blower gasket, align the gasket
tabs with the cut-outs in the blower muffler housing, then install the
blower tabs into the gasket cut-outs. Align the blower screw holes with
the screw holes in the muffler.
Blower tab
Silicone gasket
Cut-out in gasket and
muffler housing
