Chapter 4
4-6 BiPAP Focus Ventilator Service Manual © Respironics, Inc. REF 1029568 Rev B
Periodic Maintenance
4.4.4 Fully Depleted Battery
NOTE: Because reconnecting the charged battery is time-sensitive, read these
instructions before beginning this procedure.
BiPAP Focus charging circuitry is designed to detect a battery with a minimum
voltage of 2.80 VDC as measured across the red and black battery connector
wires. If measured battery voltage measured is < 2.80 VDC, use the BiPAP
Focus battery charging cable (P/N 1040421) to provide the initial charge
required to allow the ventilator to recharge a depleted battery:
1. Turn the ventilator OFF (O) and disconnect the power cord from the
rear of the unit (Figure 4-3).

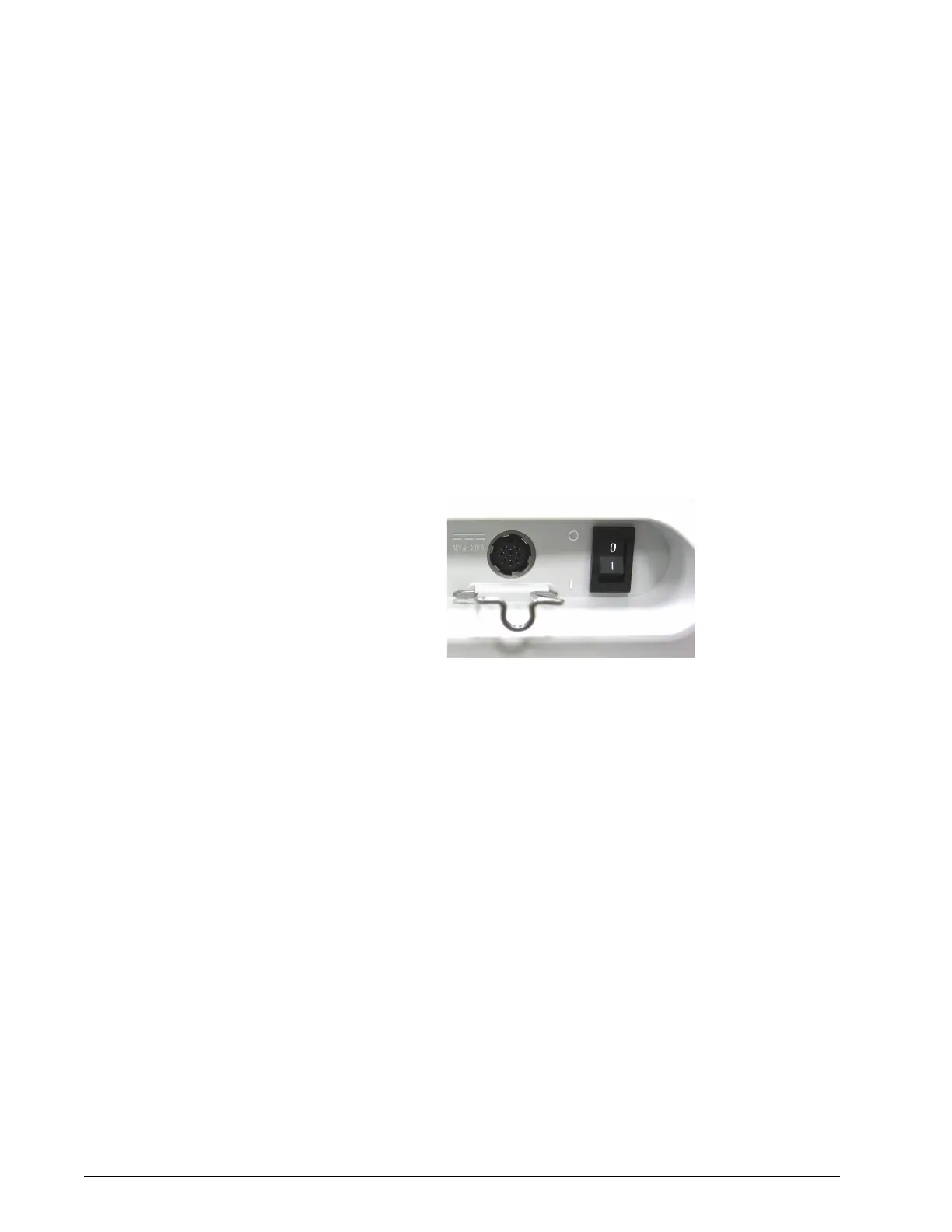

Figure 4-3: Back Panel Connections
AC/DC power
supply input
Power cord strain relief
clip
ON/OFF switch
Shown in the
OFF position
