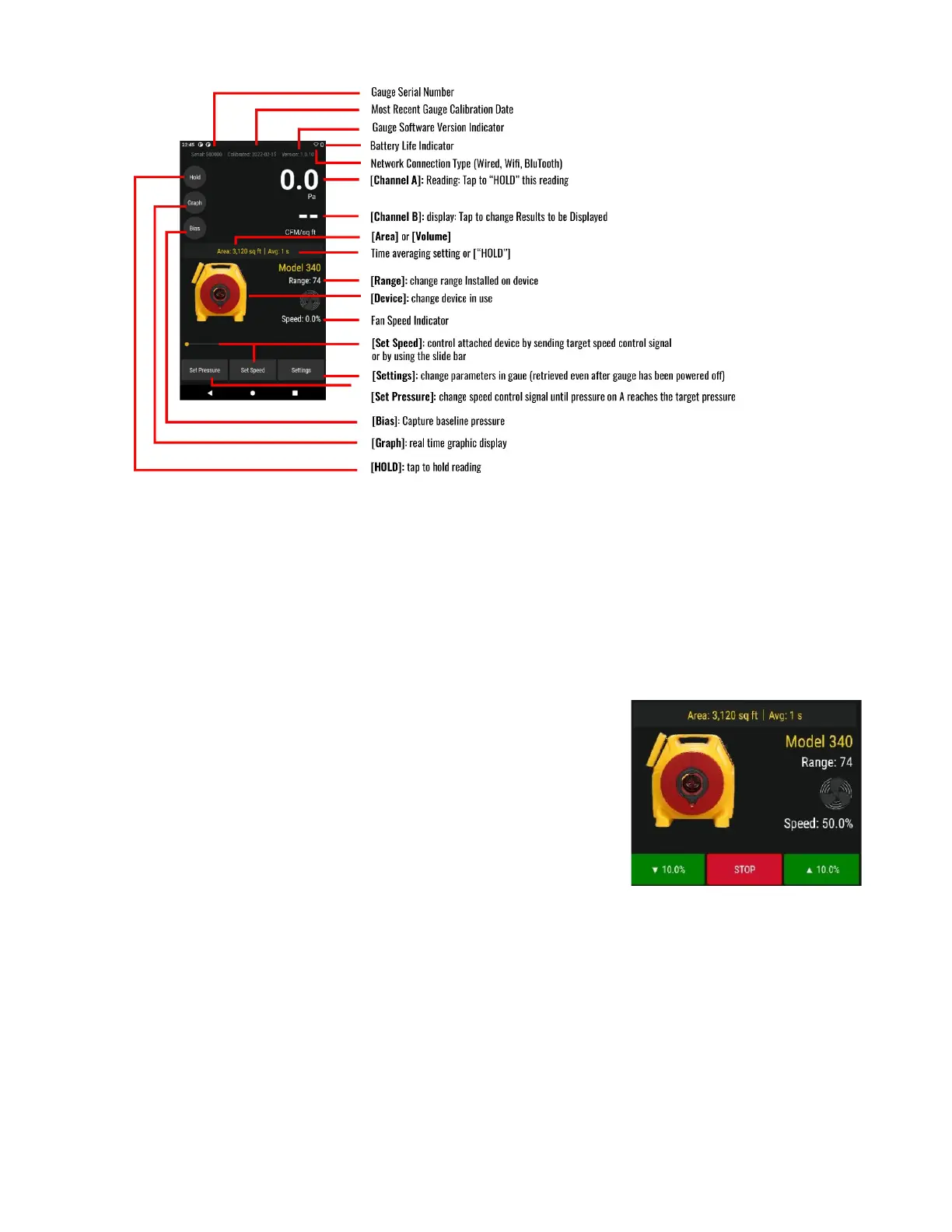

2.5 Observe icons to monitor gauge status
2.5.1. What speed is being sent to the fan on the
“Fan Speed” output?
The % Speed indicates the percentage of the fan’s total speed capacity
that the gauge is directing the fan to achieve (50% Fan Speed shown in
the Fan Speed Image Example).
2.5.2. Over what time period is the Result being
averaged?
When Time Averaging is active, the gauge will display the time that the [Channel A] and [Channel B]
Readings are averaged over. 1 second Time Averaging is shown in 7. Regardless of the time averaging
setting, the display will update every second.
Time Averaging periods of 1s, 5s, 10s, 30s can be selected directly, or another time to spend averaging can
be entered manually.
