© Retrotec 2022
Set gauge to achieve target pressure
Fans manufactured by TEC can also be controlled if the optional Retrotec-TEC speed control Adapter is
connected between the gauge and the TEC fan as shown in the image below. Pressure tubing needs to be
attached to the gauge using the Retrotec conventions described in the Retrotec literature.

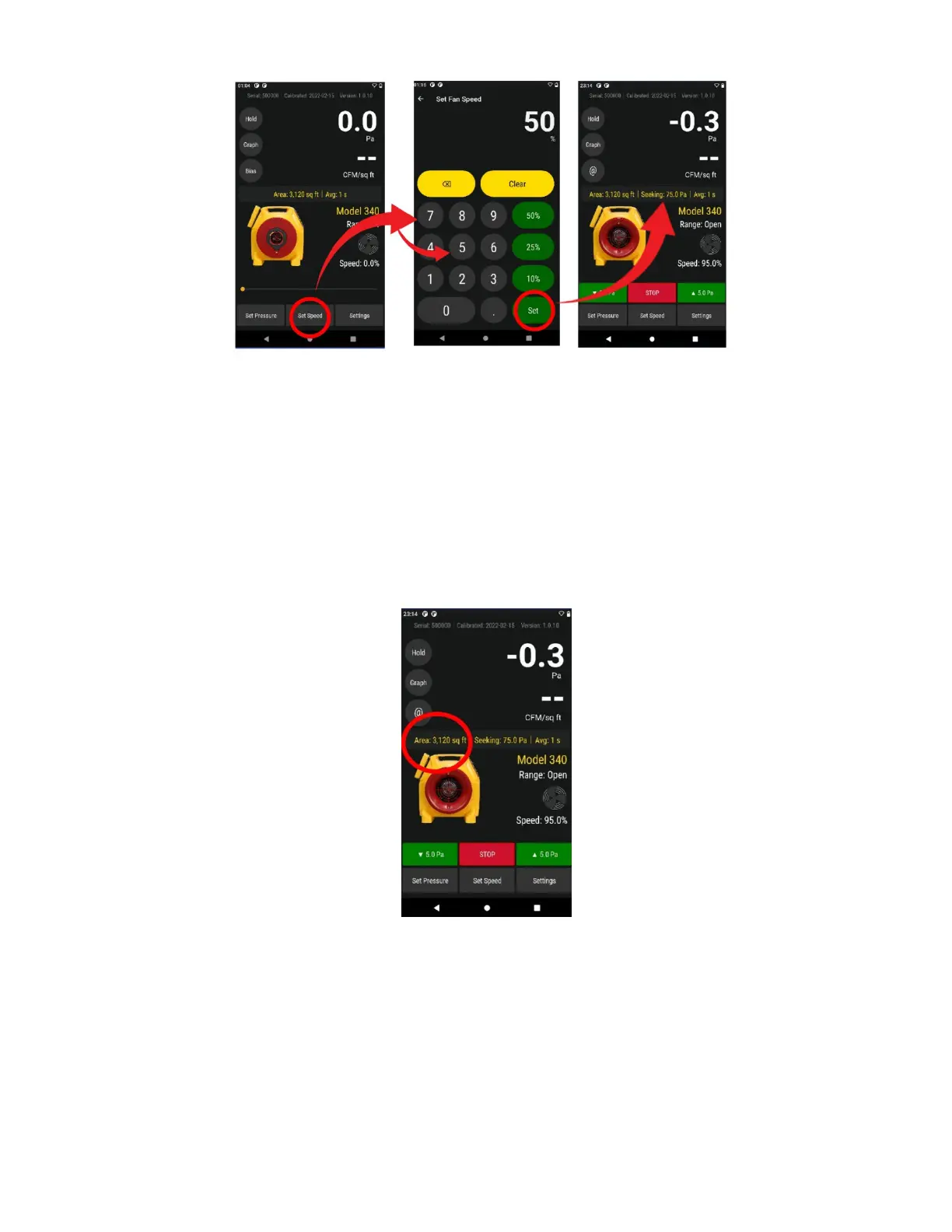

3.3.6. Tap [Area] or [Volume] to enter dimension for particular Results
The [Area] key only appears on the Home screen if one of the permeability results requiring an input of
area for the calculation is selected as the “Result to be displayedon [Channel B].
Enter an [Area] if the Result to be displayed is calculated with an Area
The [Area] key from the Home screen opens the same screen as the [Settings][Area] key combination.
The [Volume] key only appears on the Home screen if “ACH” (Air Changes per hour) is selected as the
Result to be displayed” on [Channel B].
