Reymsa HFC Series - Table A-4: Receiving Flange Type (Quadruple Fan Towers); Figure A-26: Fan Duct Installation for a Quadruple Fan Tower; Figure A-27: Fan Duct Alignment for a Quadruple Fan Tower

REYMSA COOLING TOWERS, INC.
www.reymsa.com
12
Figure A-27: Fan duct alignment for a quadruple fan tower
M. Continue to place fan duct 2 on top of tower section 1, following the same instructions mentioned on
previous step. Follow the same instructions for the remaining fan ducts.
Installation

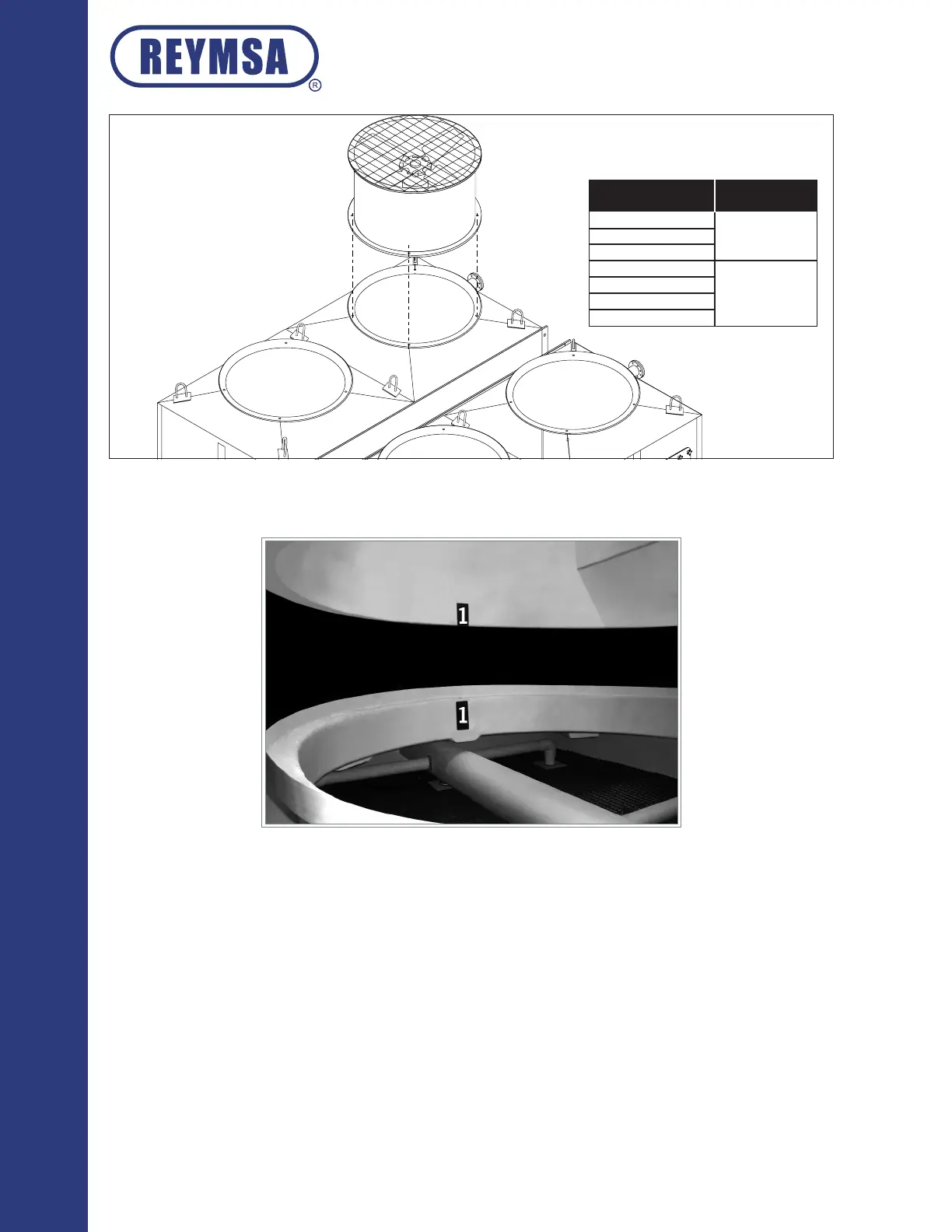

Figure A-26: Fan duct installation for a quadruple fan tower
HFC QUADRUPLE FAN
MODELS
RECEIVING FLANGE
1010
RECESSED FLANGE1212
1414
1616
EXTERNAL FLANGE
1619
1622
1627
Table A-4: Receiving ange type
(quadruple fan towers)
Note: Also applies for low
sound fans.
