18

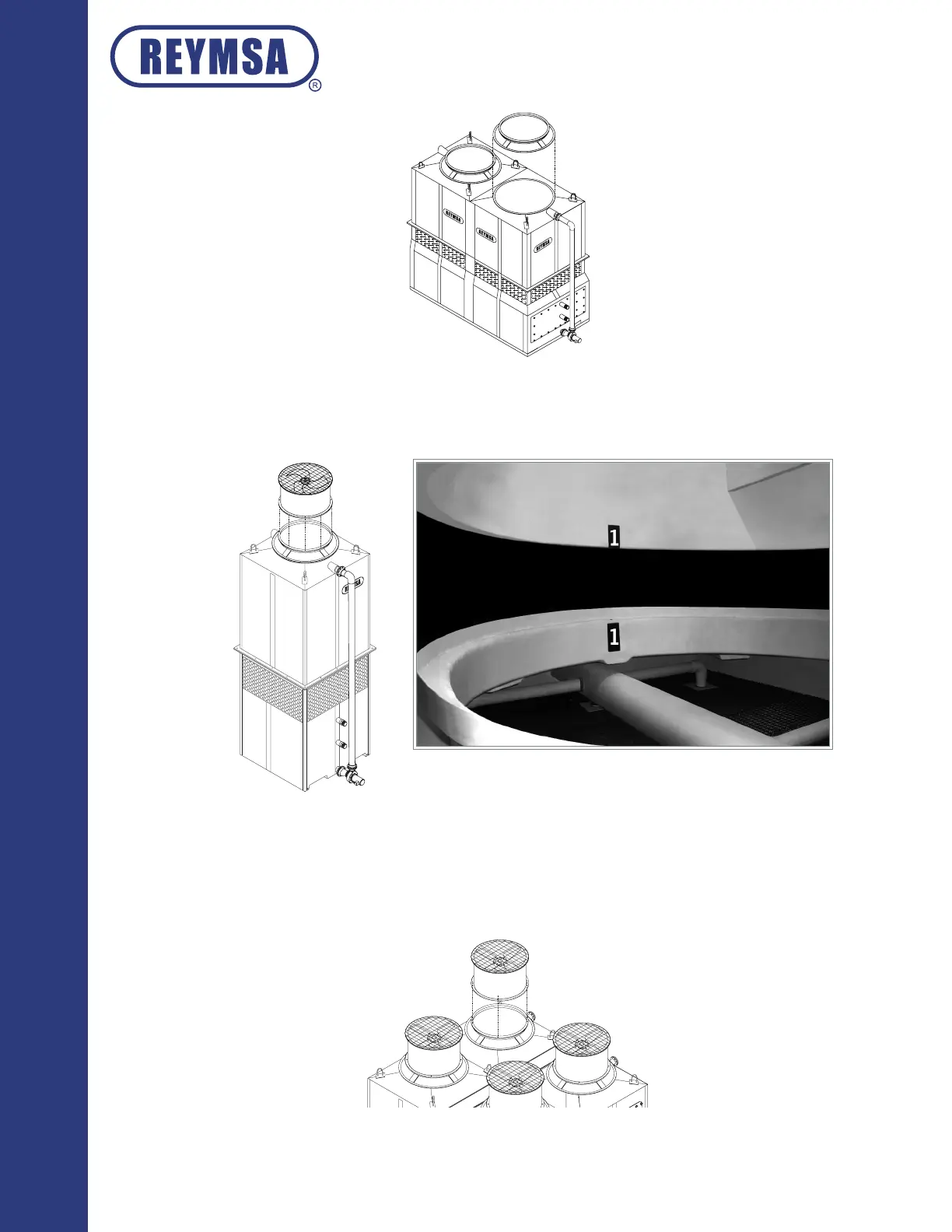

Figure A-38: Fan adaptor 2 installation
C. Then place the Fan Duct on top of the Fan Adaptor (see Figure A-39); make sure the bolt holes and the
marks inside the Fan Duct are aligned (see Figure A-40). Then secure it using the stainless steel nut and
bolt sets supplied by REYMSA.
Figure A-39: Fan duct installation in a fan adaptor
Figure A-40: Fan duct alignment
D. If there is more than one fan, follow the same instructions from previous step to install remaining Fan Ducts
(see an example in Figure A-41). Each fan duct is labeled with a number on the inside of the lower edge;
for a correct installation, this number must match the number on the corresponding fan Adaptor.
Figure A-41: Fan duct installation in a fan adaptor for a quadruple fan tower
Installation
