Reymsa HFC Series - Figure A-57: Pipe Connections for a Single Fan Tower; Figure A-58: Pipe Connections for a Double Fan Tower

REYMSA COOLING TOWERS, INC.
www.reymsa.com
28
Piping should be adequately sized in accordance with accepted engineering principles. All piping and other
external equipment must be self-supported, totally independent from the Closed Circuit Fluid Cooler.
In extreme cold weather, care must be taken to protect all piping located on the exterior of the building
from freezing (refer to section “C.5. COLD WEATHER OPERATION”).

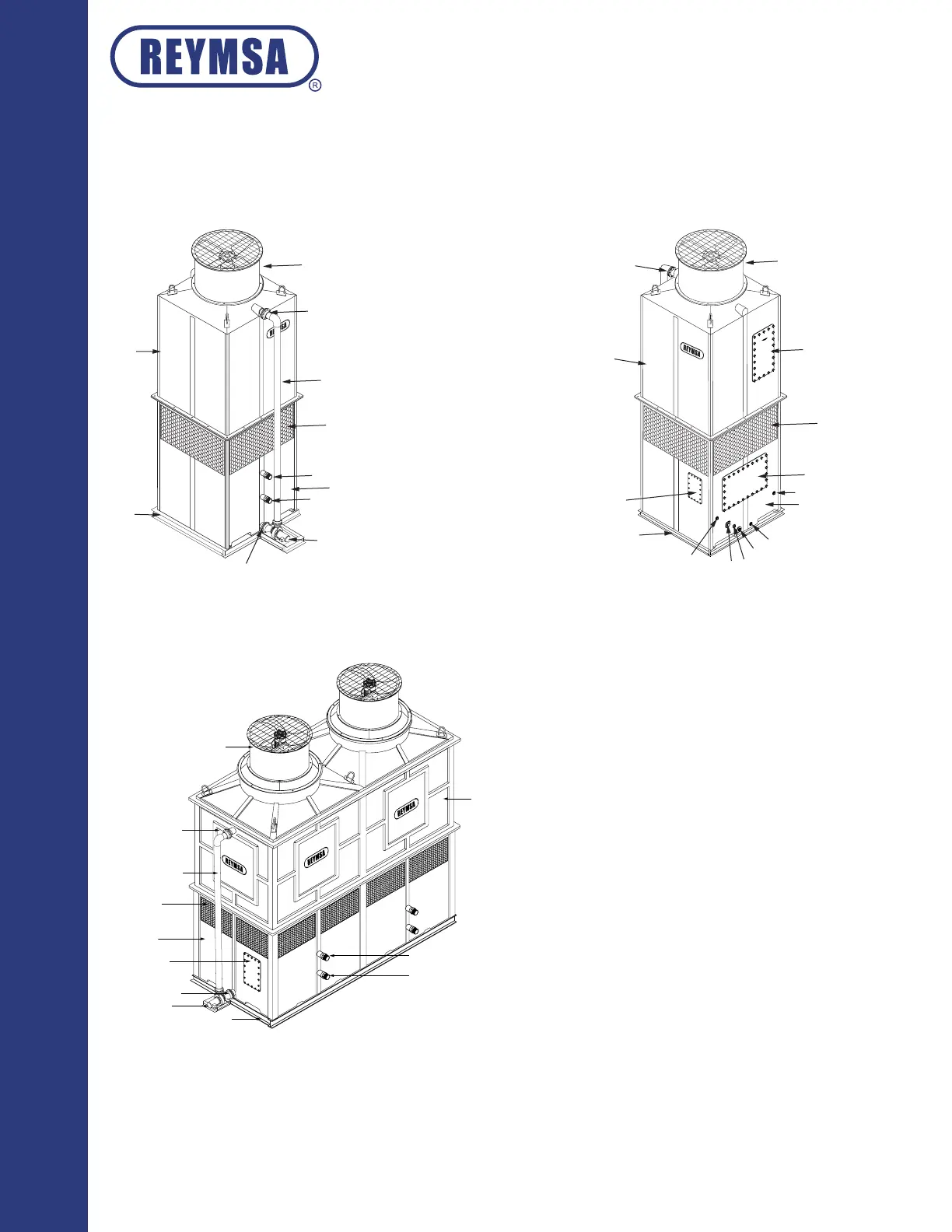

Figure A-58: Pipe connections for a double fan tower
Figure A-57: Pipe connections for a single fan tower
1. FAN SECTION
2. RECIRCULATION WATER INLET
3. AIR INLET LOUVERS
4. UPPER BODY SECTION
5. BASIN SECTION
6. WATER RETURN PIPE
7. RECIRCULATION WATER OUTLET
8. SPRAY PUMP
9. PROCESS FLUID OUTLET
10. PROCESS FLUID INLET
11. STEEL BASE SUPPORT (SUPPLIED BY OTHERS)
12. BODY SECTION ACCESS DOOR (FILL ACCESS)
13. BASIN SECTION ACCESS DOOR (COIL ACCESS)
14. LATERAL ACCESS DOOR (BASIN ACCESS)
15. WATER MAKE-UP
16. OVERFLOW
17. DRAIN
18. PURGE
19. TEMPERATURE SENSOR
20. BASIN HEATER
1
1
2
2
3
6
7
11
11
16
19
20
17
18
8
9
10
5
5
15
4
4
3
12
13
14
1. FAN SECTION
2. RECIRCULATION WATER INLET
3. AIR INLET LOUVERS
4. UPPER BODY SECTION
5. BASIN SECTION
6. WATER RETURN PIPE
7. RECIRCULATION WATER OUTLET
8. SPRAY PUMP
9. PROCESS FLUID OUTLET
10. PROCESS FLUID INLET
11. STEEL BASE SUPPORT (SUPPLIED BY OTHERS)
12. BODY SECTION ACCESS DOOR (FILL ACCESS - BACK SIDE)
13. BASIN SECTION ACCESS DOOR (COIL ACCESS - BACK SIDE)
14. LATERAL ACCESS DOOR (BASIN ACCESS)
15. WATER MAKE-UP (BACK SIDE)
16. OVERFLOW (BACK SIDE)
17. DRAIN (BACK SIDE)
18. PURGE (BACK SIDE)
19. TEMPERATURE SENSOR (BACK SIDE)
20. BASIN HEATER (BACK SIDE)
1
2
3
4
5
6
7
8
9
10
11
14
Installation
