Reymsa HFC Series - Appendix B: Examples of Accessories Assembly Instructions

REYMSA COOLING TOWERS, INC.
www.reymsa.com
The
All-Fiberglass
Cooling Towers
61
Appendix
APPENDIX B: EXAMPLE OF ACCESSORIES ASSEMBLY INSTRUCTIONS.
FOR REFERENCE ONLY
Consult your REYMSA representative for the recommended support of a specic model
FOR REFERENCE ON
LY

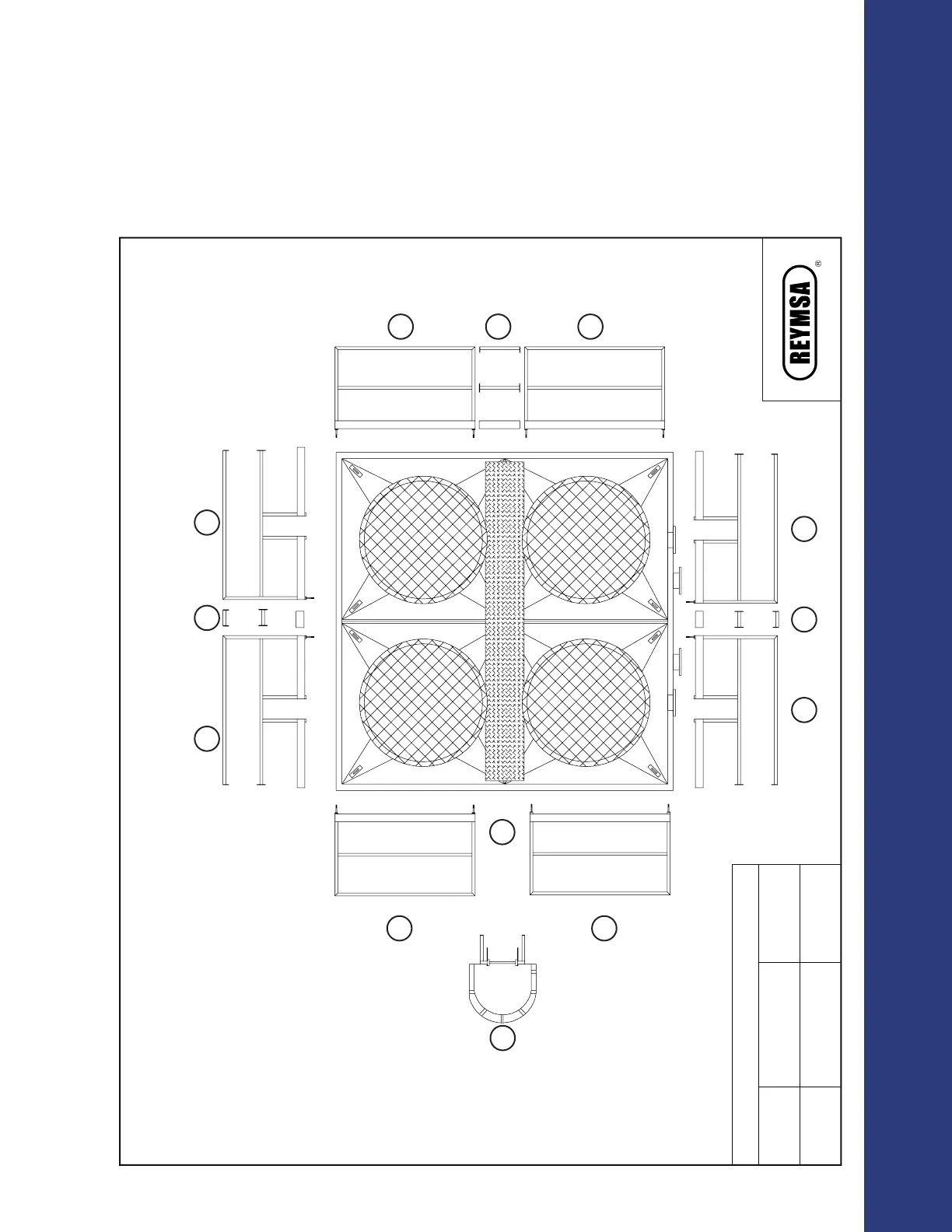

HANDRAIL AND LADDER ASSEMBLY INSTRUCTIONS
REYMSA COOLING TOWERS
REVISED:
DATE:
MODEL:
NAME:
ASSEMBLY INSTRUCTIONS
DIMENSIONS: INCHES:
DWG. No.
0
12
11
10 9 8
6 5
3 42
7
1
