K. Assemble the body section #1 (Upper Body section 1 for RT-D) with the basin section #1 (Lower Body
section 1 for RT-D), making sure that the bolt holes on body section #1 are aligned with the perforations
on basin section #1, then bolt down and secure the horizontal flanges with the stainless steel nut and bolt
supplied by REYMSA. See figure A-30 (wait the final tight until two upper section are on place and you
can tighten the vertical flanges as well). Make sure that the hot water inlet and the cold water outlet are
on the same side.
L. Assemble the body section #2 (Upper Body for RT-D) with the basin section #2 (Lower Body for RT-
D), making sure that the bolt holes on body section #2 (Upper Body for RT-D) are aligned with the
perforations on basin section #2 (Lower Body for RT-D), then proceeds to bolt together the vertical
flanges of body sections (Upper Body for RT-D) 1 & 2; use first the galvanized bolts and nuts to join
sections (supplied by REYMSA), once both sections are well together then replace galvanized bolts with
the stainless steel nut and bolts sets supplied by REYMSA. Make sure that the hot water inlet and the cold
water outlet are on the same side.
M. Now with the two upper sections together, proceed to bolt down and secure horizontal flanges with the
stainless steel nut and bolts sets supplied by REYMSA. See Figure A-31.

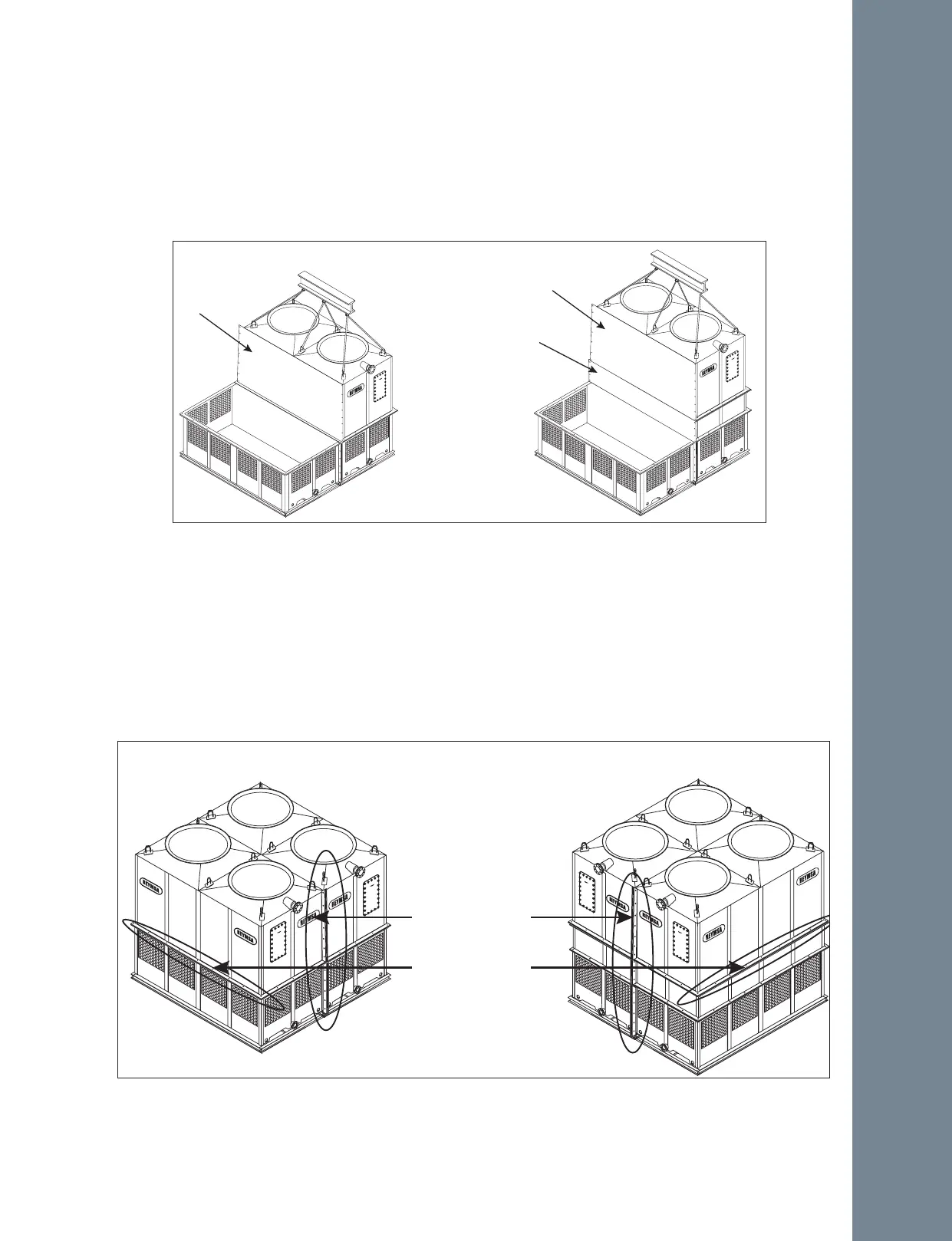

Figure A-30: Body section 1 (Upper Body section 1 for RT-D) on a Quadruple Fan Tower
Body Section
Lower Body Section
Upper Body Section
RT-A, RT-B & RT-C RT-D
Horizontal Flanges
Vertical Flanges
Figure A-31: Body section 2 (Upper Body section 2 for RT-D) on a Quadruple Fan Tower
RT-A, RT-B & RT-C RT-D
