H. Remove fan guard.
I. Then cradle/straddle the fan support with the straps (as shown in figure A-40) so you can lift the fan
duct with a crane and assemble it.
J. Identify each fan duct, they are labeled with a number on the inside of the lower edge. For a correct
installation, this number must match the number on the distribution manifold of the corresponding body
section. Now place fan duct 1 on the correspondent receiving flange on top of the Tower; make sure
the bolt holes and the marks inside the fan duct and the receiving flange are aligned (Figure A-40 and
A-41). Secure it with the stainless steel nut and bolt sets supplied by REYMSA.
K. Follow the same instructions to place fan duct 2.

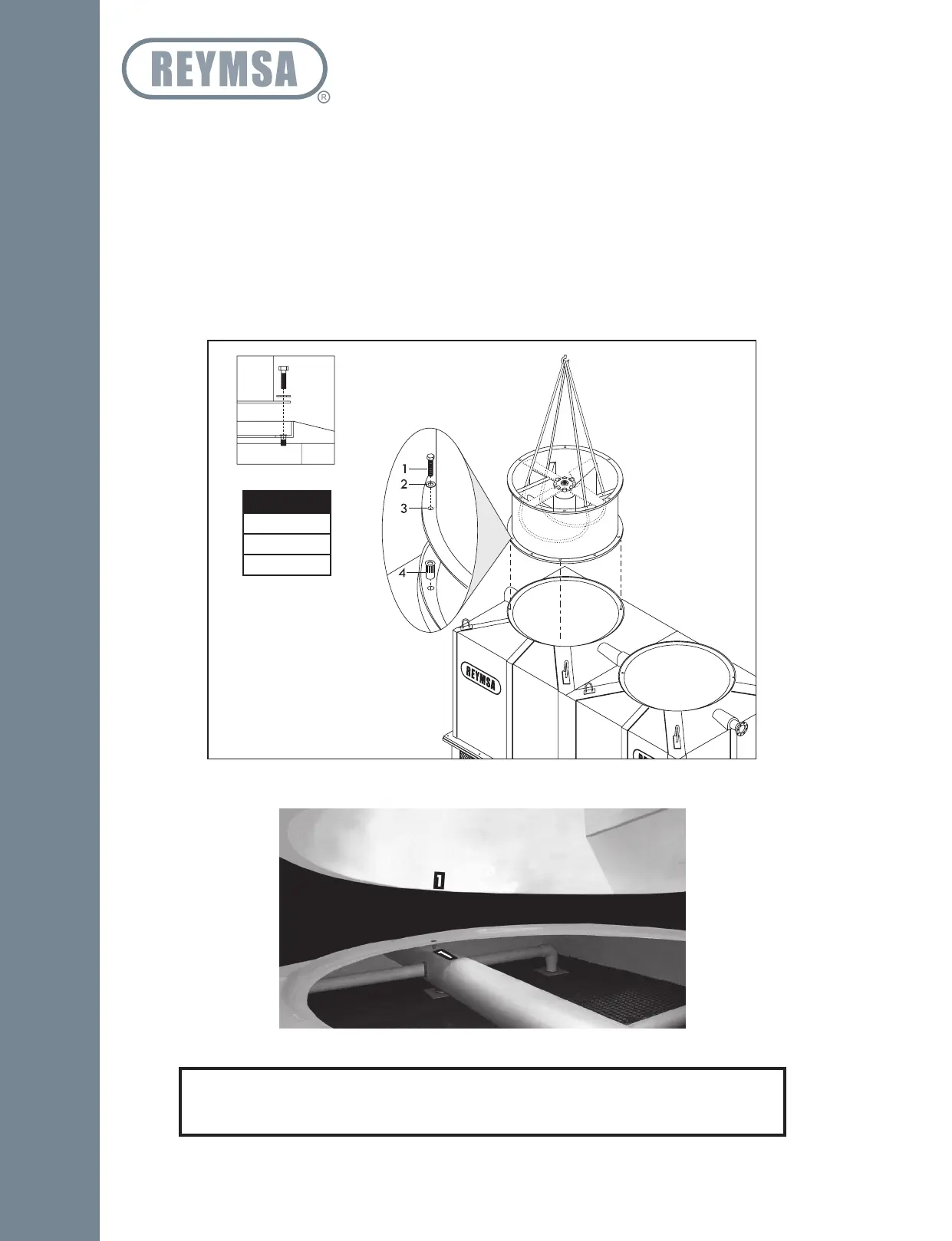

Figure A-41: Fan Duct alignment for a Double Fan Tower
NOTE
If your Tower is for a low sound application and it includes a fan adaptor please see
Section “A.7 LOW SOUND FAN COOLING TOWERS: FAN ADAPTORS”.
Figure A-40: Fan Duct assembly for a Double Fan Tower
RECESSED FLANGE
ASSEMBLY HOLES
1. 1/2” X 2.5” Bolt
2. 1/2” Flat Washer
3. 5/8 Hole
4. 1/2” Screw Insert
(Factory assembled)
MODELS
RTU-714
RTU-816
RTU-819
