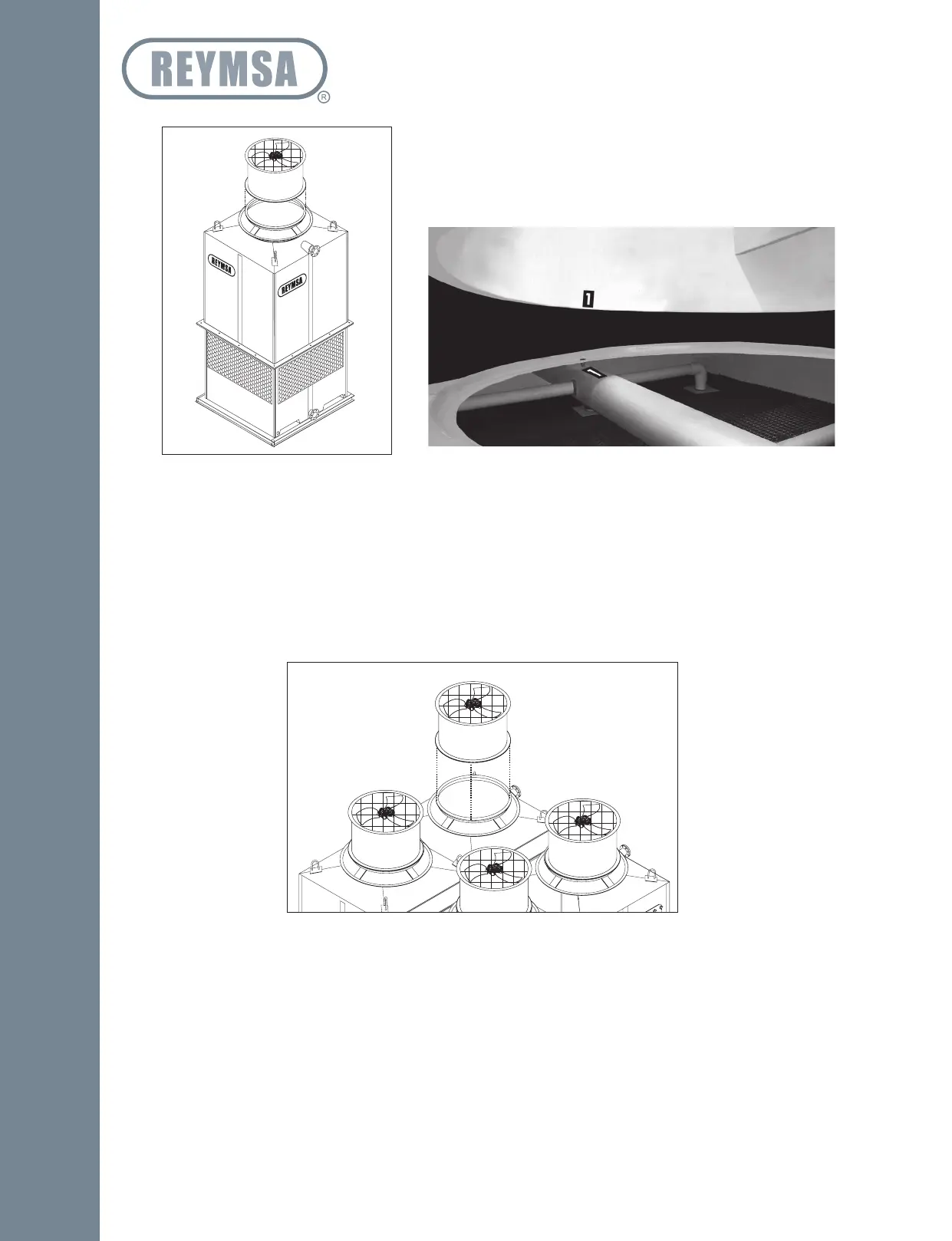

C. Then place the fan duct on top of the fan adaptor; make sure the bolt holes and the marks inside the
fan duct are aligned (see Figure A-96 and A-97). Then secure it using the stainless steel nut and bolt sets
supplied by REYMSA.
D. If there is more than one fan, follow the same instructions from previous step to install remaining Fan
Ducts (see an example in Figure A-98). Each fan duct is labeled with a number on the inside of the lower
edge; for a correct installation, this number must match the number on the corresponding fan adaptor
(see Figure A-97).
Figure A-98: Fan Duct installation on a fan adaptor
for a Quadruple Fan Tower
Installation
Figure A-97: Fan Duct aligment
Figure A-96: Fan Duct installation on a fan adaptor
