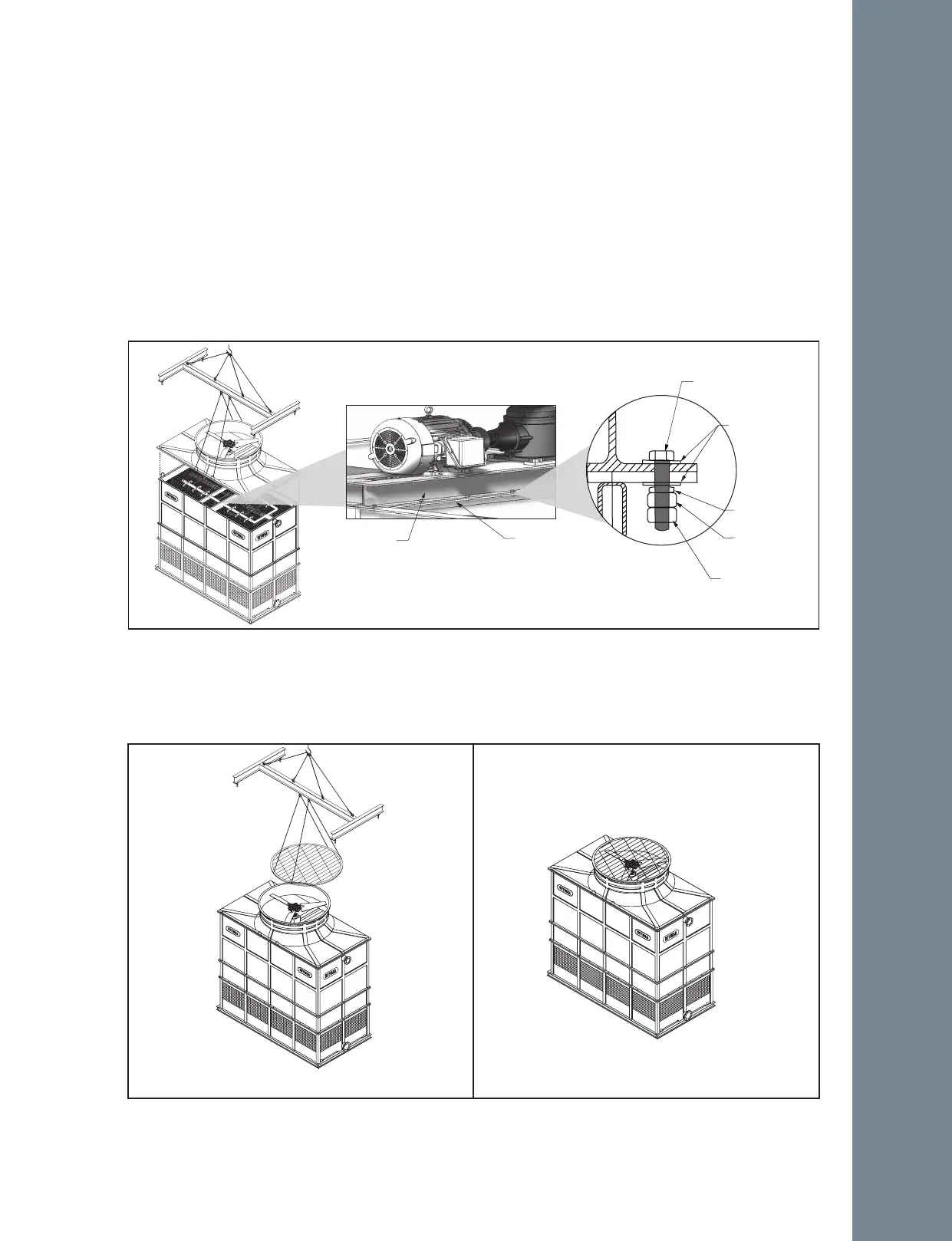

Figure A-51: Fan Deck assembly for an RTG model.
L. RTG models have a section called “Fan Deck” which is at the top of the Tower. The Fan Deck with duct
contains a gear drive fan and a motor mounted in a structural Hot Dip Galvanized Steel, and a corrosion
resistant safety screen mesh. (See Figure A-51).
M. Before the lifting of the Fan Deck Section, remove the safety screen mesh on the floor.
N. Assemble Fan Deck Section with Body Section, making sure that the holes on the Fan Deck Section are
aligned with the holes on the Body Section. Secure it with stainless steel bolts.
O. After The Fan Deck has been set in place, proceed to bolt down the Mechanical Support (Hot Dip
Galvanized Steel) to the Body Section FRP support inside of the Fan Deck Section (see figure A-51).
Installation
1
/
2 ” Flat washer
1
/
2 ” Lock washer
1
/
2 ” Nut
1
/
2 ” Safety nut
1
/
2 ” x 2
1
/
2 ” bolts
P. Place the corrosion resistant safety screen mesh on top of the Fan Deck Section (see figure A-52).
Figure A-52: Screen mesh assembly for an RTG model.
Mechanical Support
(Hot Dip Galvanized Steel)
Body Section
FRP Support
