G. Identify each fan duct, they are labeled with a number on the inside of the lower edge. For a correct
installation, this number must match the number on the distribution manifold of the corresponding body
section. Now place fan duct 1 on the correspondent receiving flange on top of the Tower; make sure the
bolt holes and the marks inside the fan duct and the receiving flange are aligned (see Figure A-71).
Secure it with the stainless steel nut and bolt sets supplied by REYMSA.
H. Follow the same instructions to place the remaining fan ducts (see figure A-72).

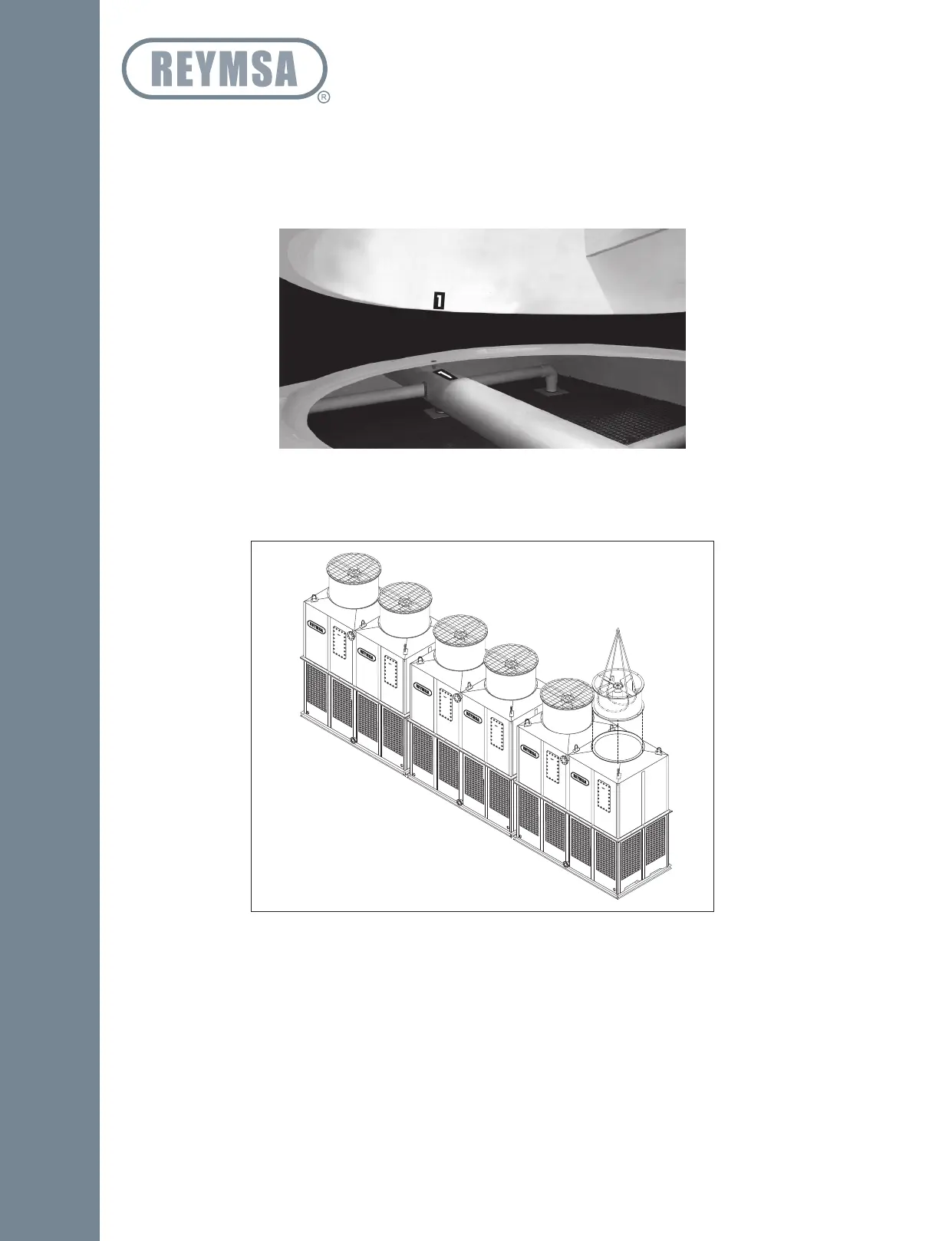

Figure A-72: Fan Duct installation for a Modular Tower (RTM-B-S)
Figure A-71: Fan Duct alignment for a Modular Tower (RTM-B-S)
