A.5.3. SHORT SIDE ARRANGEMENT FOR A MODULAR TOWER (RTM-S)
The following steps are a procedure to install an RTM-B or RTM-D Modular Tower with arrangement by the
short side.
Follow the same instructions from section “A.5.1 GENERAL PROCEDURE” to assemble the modules.
A. Lift the first module using a crane and a spreader bar and place it on top of the isolation pad and the
steel base structure. Secure it with the stainless steel nut and bolts sets (supplied by others) as shown on
Figure A-67.
B. Follow the same procedure to install the next module. This module should have only two air inlets (on the
large sides). See Figure A-68 for reference.
Air inlet louvers
(back side)
Air inlet louvers
(back side)
Air inlet
louvers
NO Air inlet louvers

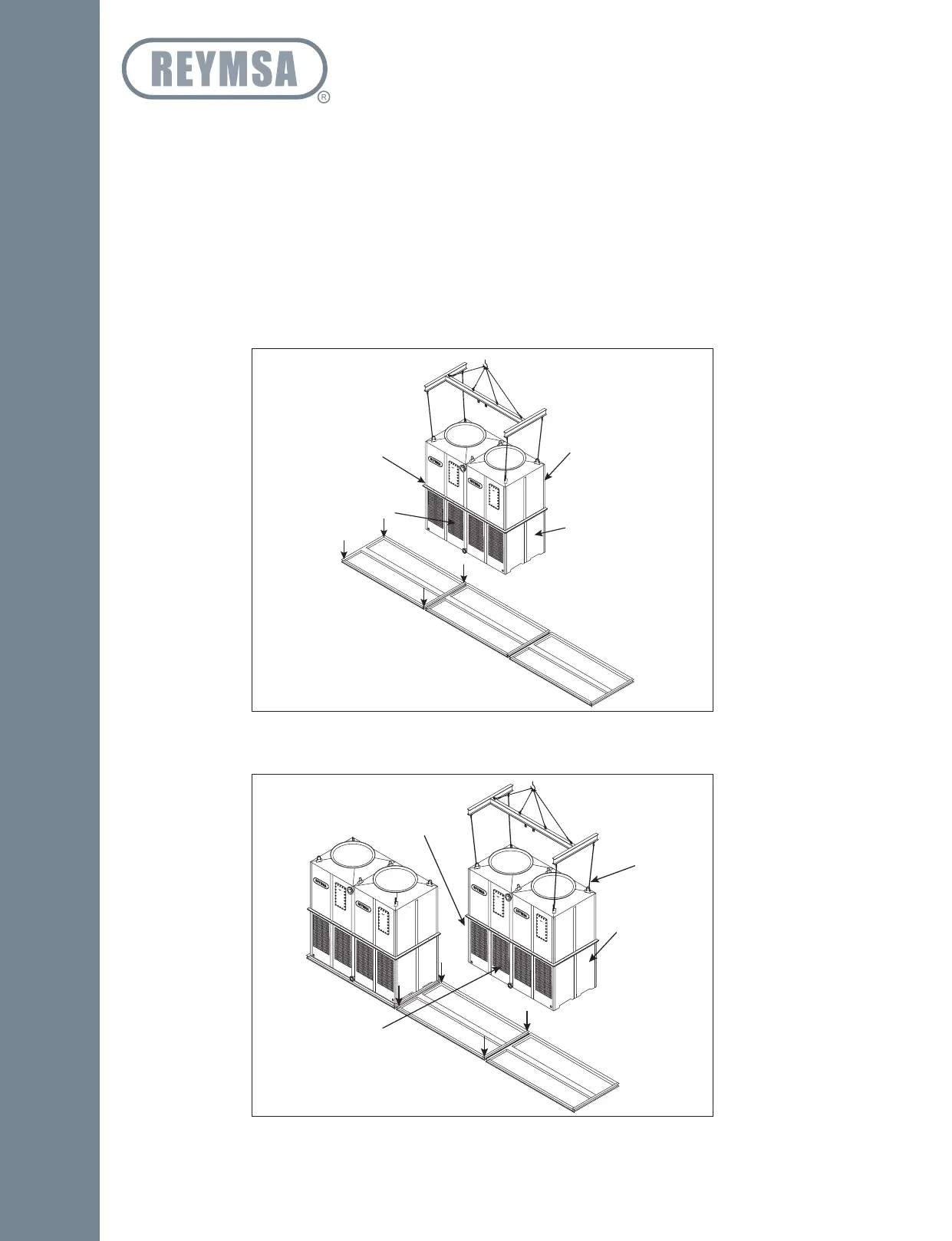

Figure A-67: First module lifting for a short side arrangement (RTM-B-S)
Figure A-68: Second module lifting for a short side arrangement (RTM-B-S)
Air inlet
louvers
NO air inlet louvers
(back side)
Air inlet louvers
(back side)
NO air inlet
louvers
Installation
