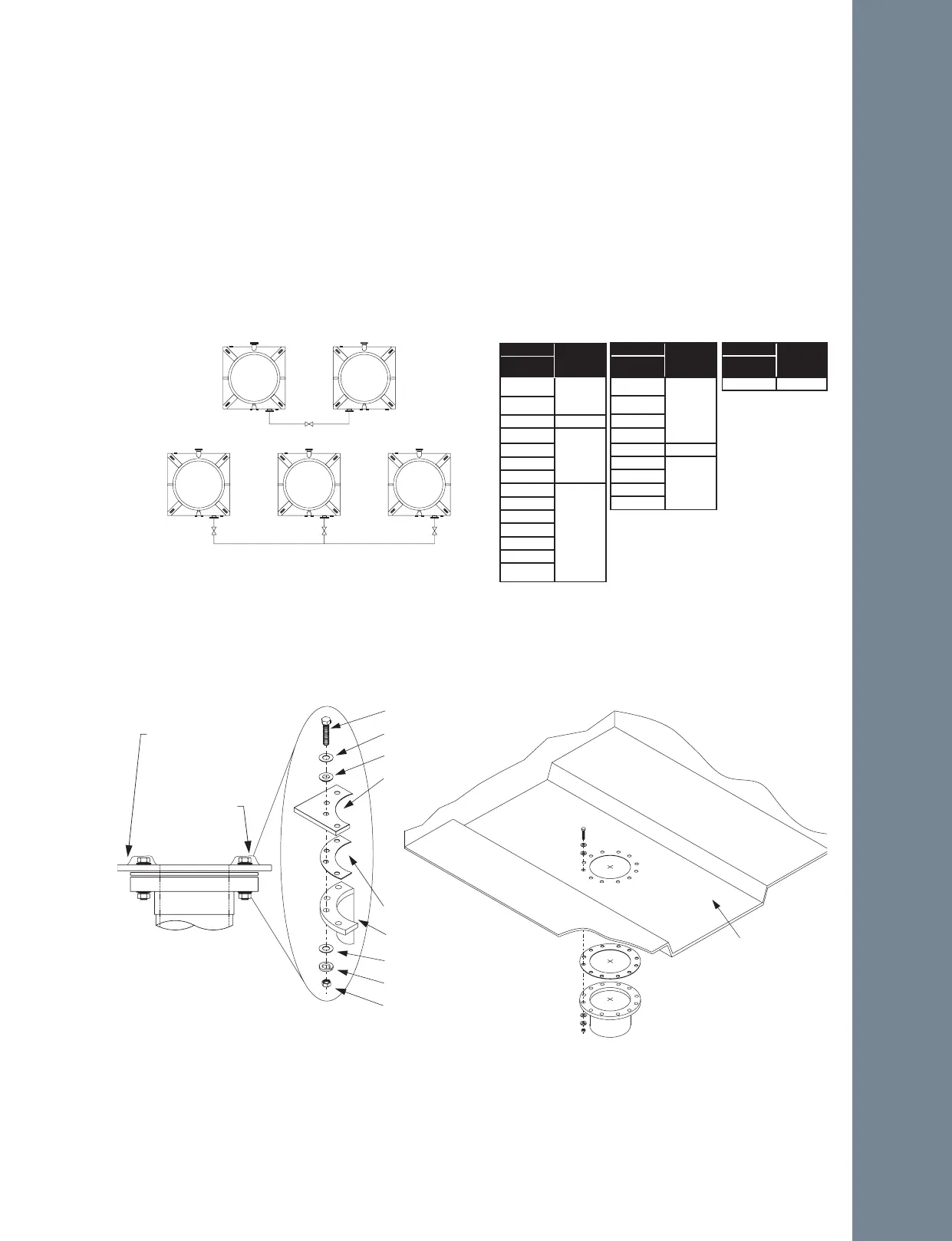

A.8 EQUALIZER LINE INSTALLATION
Some application will require multiple towers or basins feeding a common system. Care must be taken when
multiple systems are operating together. Please observe the following recommendations:
▪ Install an equalizer line between towers, to maintain the same water level at the basins (see Figure
A-99). Table A-2 shows the recommended sizes for the Equalizer connections.
▪ Install the overflow at the same level for each Tower as well as manual valves at the inlet and outlet of
each Tower.
▪ An isolation valve on the equalizer line between each Tower is recommended for maintenance purposes.
A.9 BOTTOM OUTLET CONNECTION
For applications using a bottom outlet flange, follow this drawing with the instructions for connecting the
outlet piping and tightening the bolts. (See Figure A-100).
Notes: All piping must be independently supported. The Tower is not designed for any piping weight load;
some deflection in the basin may ocur. All metallic elements must be stainless steel. An isolation valve is
recommended (supplied by others).
Figure A-99: Equalizer Line Installation
MODEL
Ø SIZE
RT & RTU
303
2”
404
505 3”
606
4”
707
708
709
808
6”
809
810
811
812
714
816
MODEL
Ø SIZE
RT & RTU
819
8”
822
824
827
1616 6”
1619
8”
1622
1624
1627
MODEL
Ø SIZE
RTG
All 8’’
Table A-2: Equalizer Connection Sizes
Cover all bolt heads
and flat washers
with caulking after all
bolts are tightened
Liberally apply the
3M 5200 marine
sealant to Flange,
to fill bolt cavity
Figure A-100: Bottom outlet connection view
Bolt
Flat washer
Rubber grommet
Tower basin
Full Face Gasket ¼”
Outlet Piping & Hardware
Flat washer
Lock washer
Nut
Depressed section of
cold water basin
