Reymsa RT-404 - Figure A-75: Body Section Installation for a Modular Tower (RTGM-B)

REYMSA COOLING TOWERS, INC.
www.reymsa.com
32
I. Assemble body section #1 (for RTGM-B) with the basin section #1, making sure that the bolt holes on
body section #1 are aligned with the perforations on basin section #1, then bolt down and secure the
horizontal flanges with the stainless steel nut and bolt sets supplied by REYMSA (see Figure A-75 for
reference).
J. Only for RTGM-D & RTGM-E models: Assemble Lower Body section #1 on top of basin section #1,
make sure that the bolt holes on Lower Body section #1 are aligned with the perforations on basin
section #1, then bolt down and secure the horizontal flanges with the stainless steel nut and bolt sets
supplied by REYMSA (see Figure A-76).
K. Only for RTGM-D & RTGM-E models: Remove U-bolts from Lower Body section before installing the next
section (see Figure A-77).
L. Only for RTGM-D & RTGM-E models: Place Upper Body section #1 on top of Lower Body section
#1, making sure that the bolt holes are aligned (see Figure A-78). Bolt down and secure the horizontal
flanges with the stainless steel nut and bolt sets supplied by REYMSA.
M. Only for RTGM-D & RTGM-E models: Remove U-bolts from top of the Upper Body section (see Figure A-79).

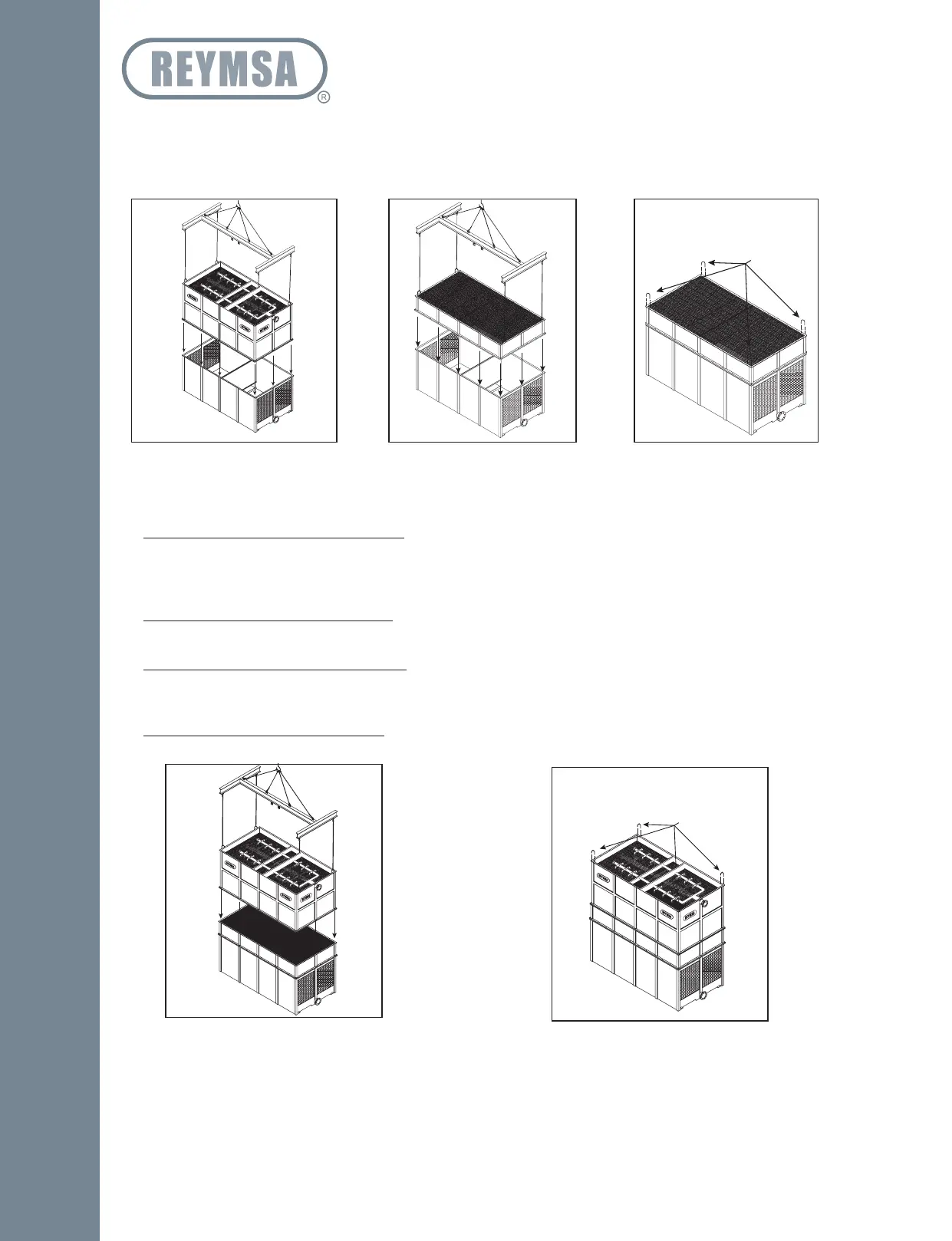

Figure A-75: Body section installation
for a modular tower (RTGM-B)
Figure A-76: Lower body section
assembly for a modular tower
(RTGM-D & RTGM-E)
Figure A-77: Removing U-bolts
from the Lower Body section for a
modular tower (RTGM-D & RTGM-E)
Remove
Installation
Remove
Figure A-79: Removing U-bolts from the Upper Body
section of a modular tower (RTGM-D & RTGM-E)
Figure A-78: Upper Body section installation for
a modular tower (RTGM-D & RTGM-E)
