R. Place the corrosion resistant safety screen mesh on top of the Fan Deck Section (see figure A-81).
N. RTGM models have a section called “Fan Deck” which is at the top of the Tower (see Figure A-80). The
Fan Deck with duct contains a gear drive fan and a motor mounted in a structural Hot Dip Galvanized
Steel, and a corrosion resistant safety screen mesh.
O. Before the lifting of the Fan Deck Section, remove the safety screen mesh on the floor.
P. Assemble Fan Deck Section with Body Section, making sure that the holes on the Fan Deck Section are
aligned with the holes on the Body Section. Secure it with stainless steel bolts.
Q. After The Fan Deck has been set in place, proceed to bolt down the Mechanical Support (Hot Dip
Galvanized Steel) to the Body Section FRP support inside of the Fan Deck Section (see figure A-80).
Installation

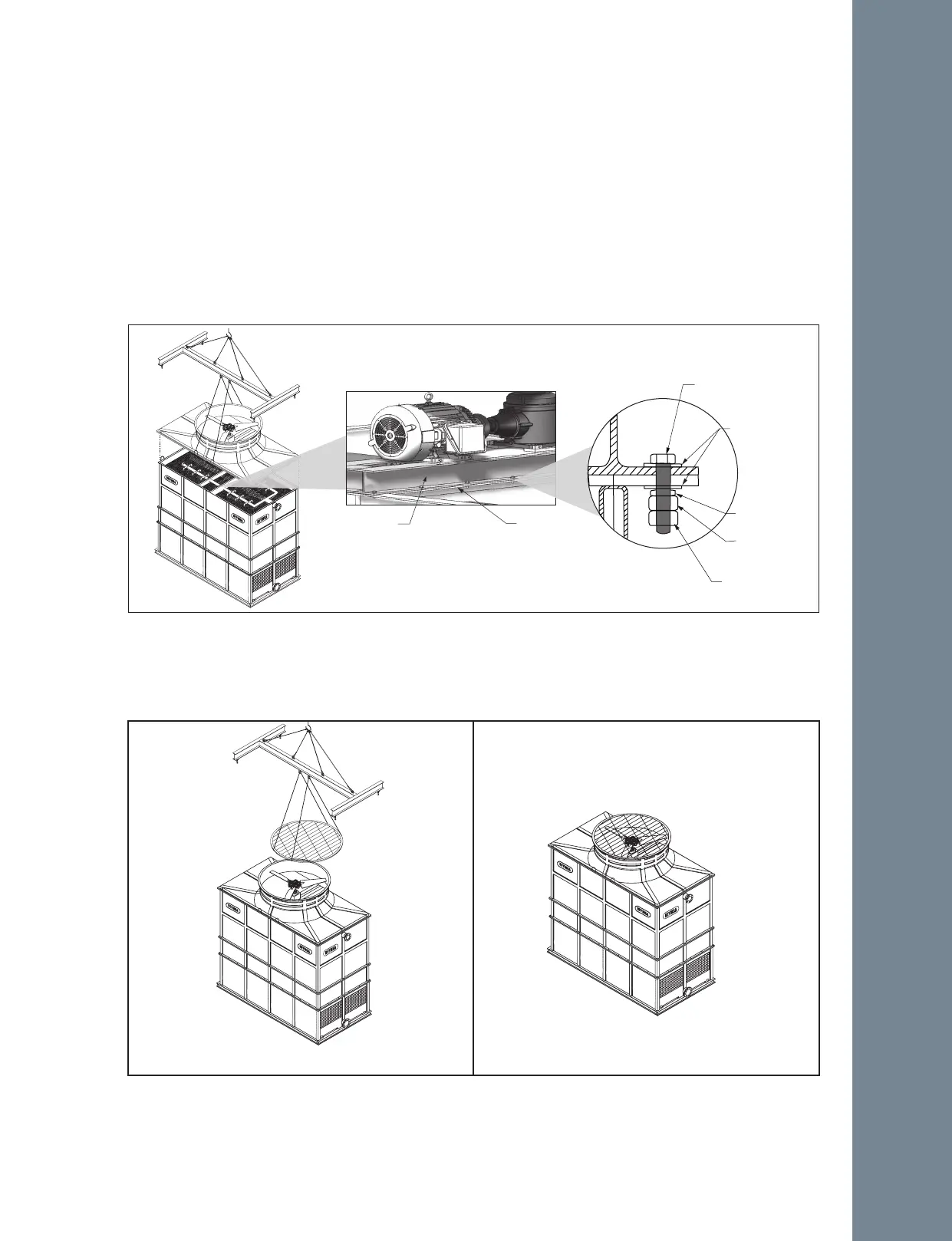

Figure A-81: Screen mesh assembly for an RTGM model.
Figure A-80: Fan Deck assembly for an RTGM model.
1
/
2 ” Flat washer
1
/
2 ” Lock washer
1
/
2 ” Nut
1
/
2 ” Safety nut
1
/
2 ” x 2
1
/
2 ” bolts
Mechanical Support
(Hot Dip Galvanized Steel)
Body Section
FRP Support
To Next Page
