REYMSA COOLING TOWERS, INC.
www.reymsa.com
86
MODEL
BETWEEN TOWERS ONE WALL TWO WALLS THREE WALLS (A) THREE WALLS (B)
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
SHORT SIDE
“DW”
LONG SIDE
“DL”
303 3 3 3 3 3 3 3 3 3 3
404 3 3 3 3 3 3 3 3 3 3
505 3 3 3 3 3 3 3 3 3 3
606 3 3 3 3 3 3 3 3 3 3
707 4 3 3 3 3 3 4 3 3 3
708 4 4 3 3 3 3 4 3 4 3
709 4 5 3 3 3 3 4 3 4 3
808 4 4 3 3 3 3 4 3 4 3
810 5 5 3 3 3 3 4 3 4 3
812 5 6 3 3 3 4 5 4 5 3
714 4 6 3 3 3 4 4 4 5 3
816 5 7 3 4 4 4 5 4 5 4
819 6 8 3 4 4 5 6 5 6 4
822 5 8 3 4 4 5 6 5 6 4
824 5 9 3 5 4 5 6 5 6 4
827 5 9 3 5 4 5 6 5 6 4
1414 8 9 4 5 5 5 6 5 7 5
1616 10 10 5 5 6 6 8 6 8 6
1619 11 11 6 6 7 7 9 7 8 7
1622 11 13 6 7 7 8 9 8 9 7
1624 11 13 6 7 7 8 9 8 9 7
1627 11 14 6 7 7 8 9 8 9 7
LOW SOUND & SUPER LOW SOUND MODELS
707 4 3 3 3 3 3 3 3 3 3
708 4 4 3 3 3 3 4 3 4 3
709 4 4 3 3 3 3 4 3 4 3
808 4 4 3 3 3 3 4 3 4 3
810 5 5 3 3 3 3 4 3 4 3
812 5 6 3 3 3 4 5 4 5 3
714 4 6 3 3 3 4 4 4 4 3
816 5 7 3 4 4 4 5 4 5 4
819 6 8 3 4 4 5 6 5 6 4
822 5 8 3 4 4 5 6 5 6 4
824 5 8 3 4 4 5 6 5 6 4
827 5 8 3 4 4 5 6 5 6 4
1414 8 9 4 5 5 5 6 5 6 5
1616 10 10 5 5 6 6 7 6 7 6
1619 11 11 6 6 7 7 8 7 8 7
1622 11 12 6 6 7 8 9 8 9 7
1624 11 13 6 7 7 8 9 8 9 7
1627 11 13 6 7 7 8 9 8 9 7

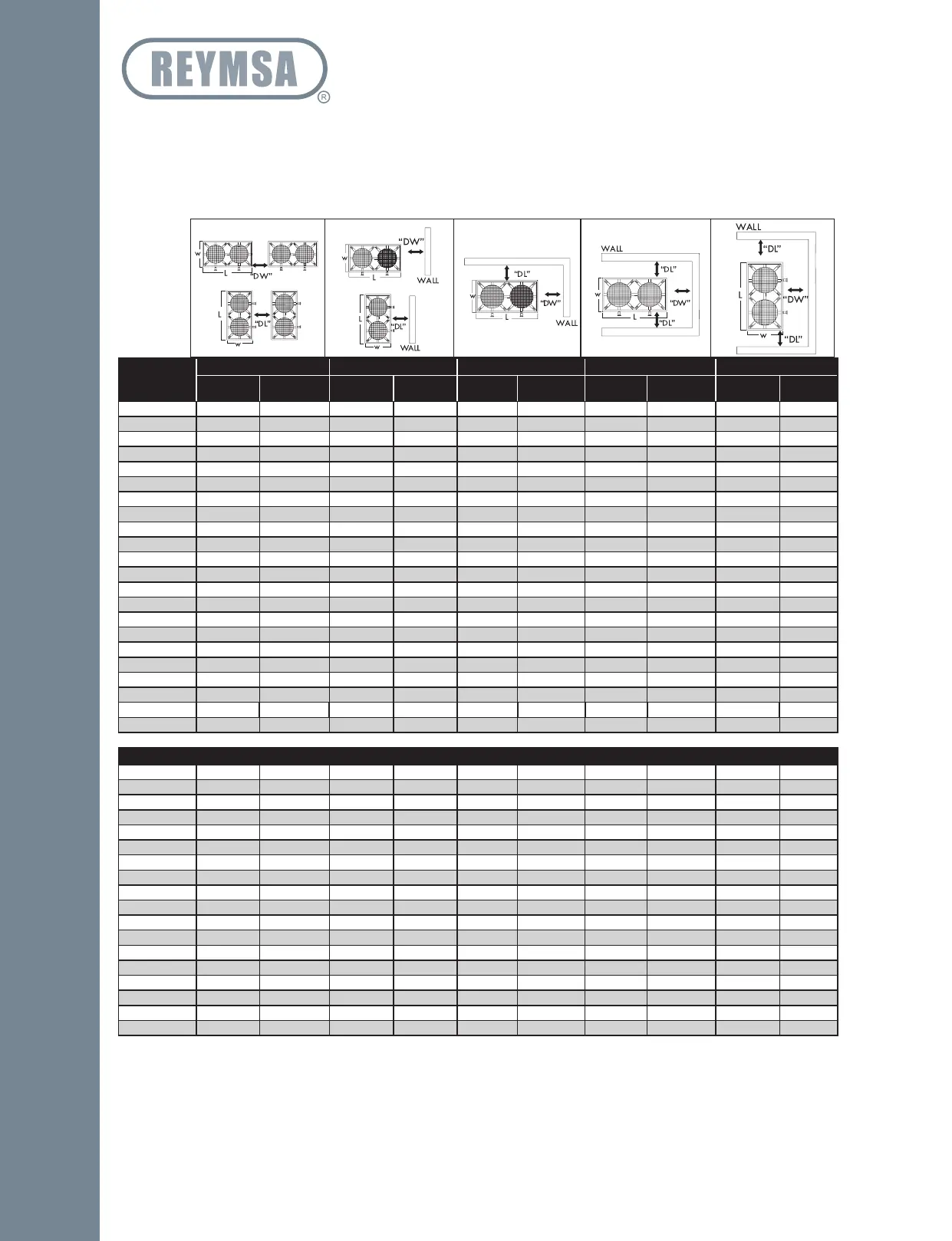

APPENDIX E: MINIMUM DISTANCE BETWEEN TOWERS AND OBSTRUCTIONS.
For RT-D models
Projects that involves Modular arrangement (RTM& RTGM models), please contact your local REYMSA representative for assistance.
Suggested clearances, conditions can vary.
All clearances are expressed in feet.
Appendix
