Setting Originals
49
2
Setting Originals
The following explains the procedure for placing originals on the exposure glass
and in the ARDF, and setting the scan area and orientation according to how you
have set your originals.
To correctly display the top/bottom orientation of the scanned original on a cli-
ent computer, the placement of the original and the settings made on the control
panel and scanner driver must match.
Placing Originals
Place originals in one of the two orientations show in the table below.
Important
❒ Normally, an original is or , but the table below uses a square original to
make orientation easier to understand. Even if the shape of your original is
different to that shown in the table, the combination of original orientation
and the orientation specified on the control panel or scanner driver does not
change.

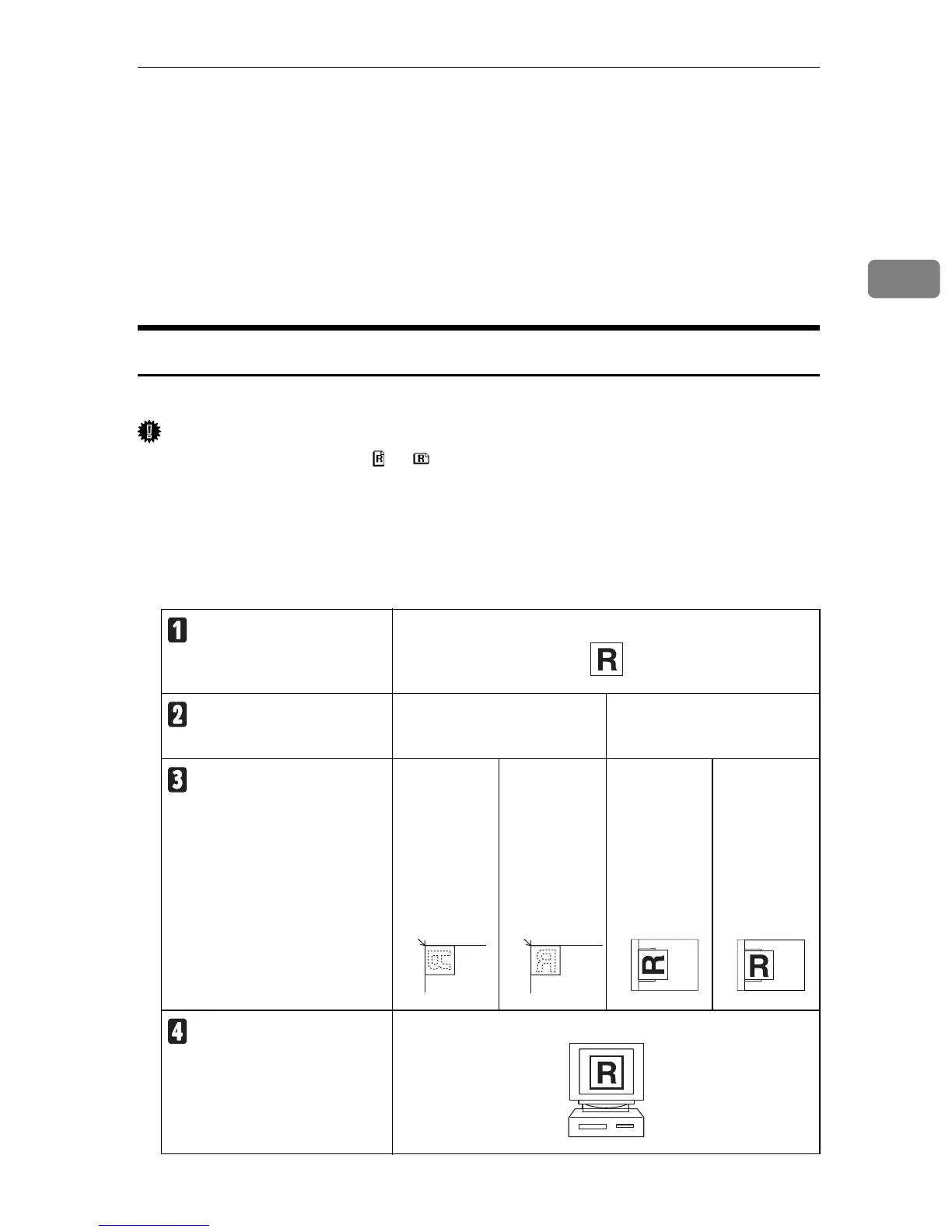

❖ Specifying original orientation and setting originals
An original to be scanned
Decide the placement method.
Exposure glass ARDF
Place the original.
(There are two original orien-
tations.)
Place the
original so
that the top
edge touches
the top left of
the expo-
sure glass.
Place the
original so
that the top
edge touches
the rear of
the exposure
glass.
Place the top
edge of the
original first.
Place the
original so
that the top
edge touches
the back of
the ARDF.
The original displayed on a
computer
To Next Page
