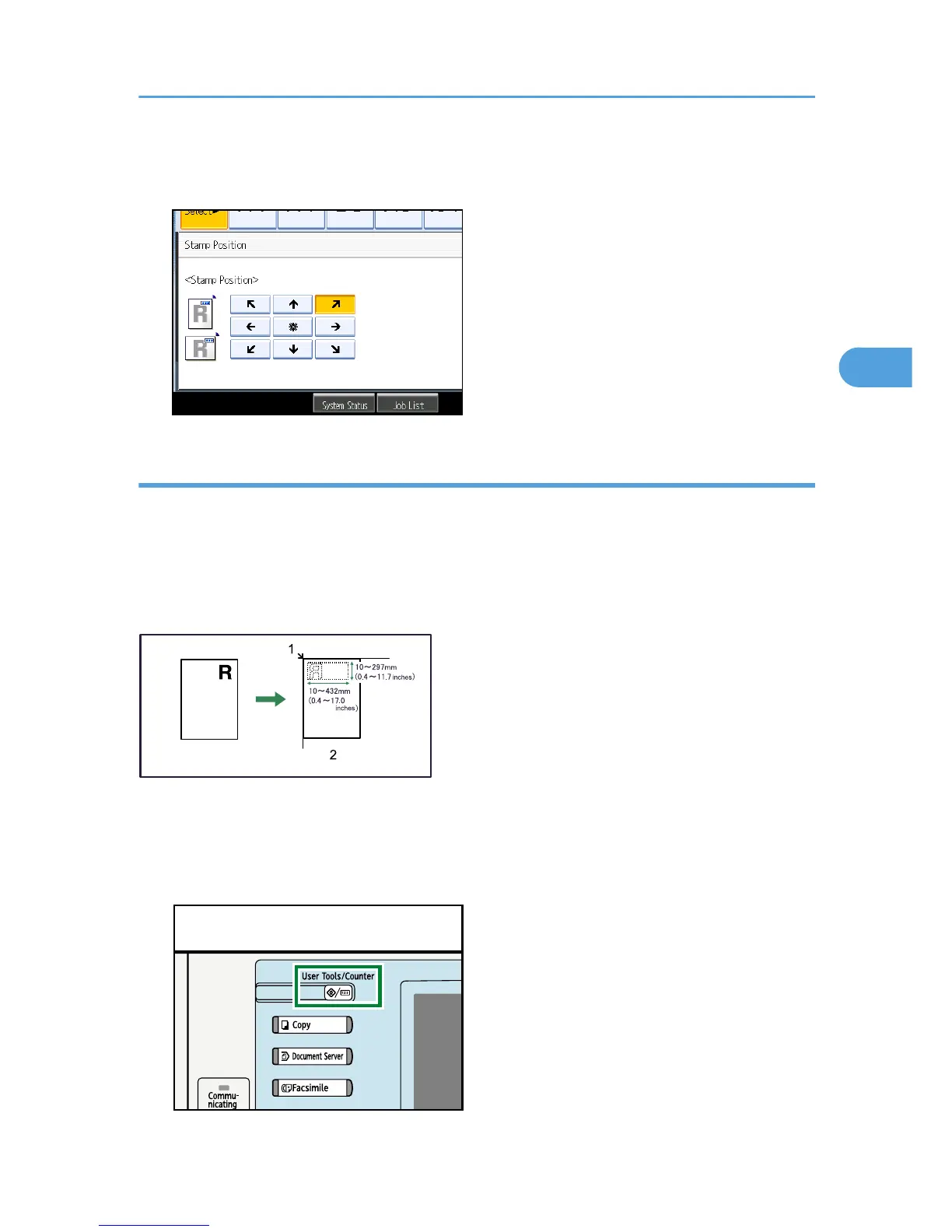

1. Press [Change] under Stamp Position.
2. Select the stamp position, and then press [OK].
Registering the user stamp
Scans an image that is used as a user stamp.
The range of stamp images is 10 - 297 mm (0.4 - 11.7 inches) high and 10 - 432 mm (0.4 - 17.0 inches)
wide. However, if the value exceeds the maximum value of the area (5,000 mm
2
, 7.75 inch
2
), it is corrected
within the range of the area automatically.
Up to four frequently used images can be stored in memory.
BAT075S
1. Base point
2. Exposure glass
1. Press the [User Tools/Counter] key.
BAT183S
Stamps
107
