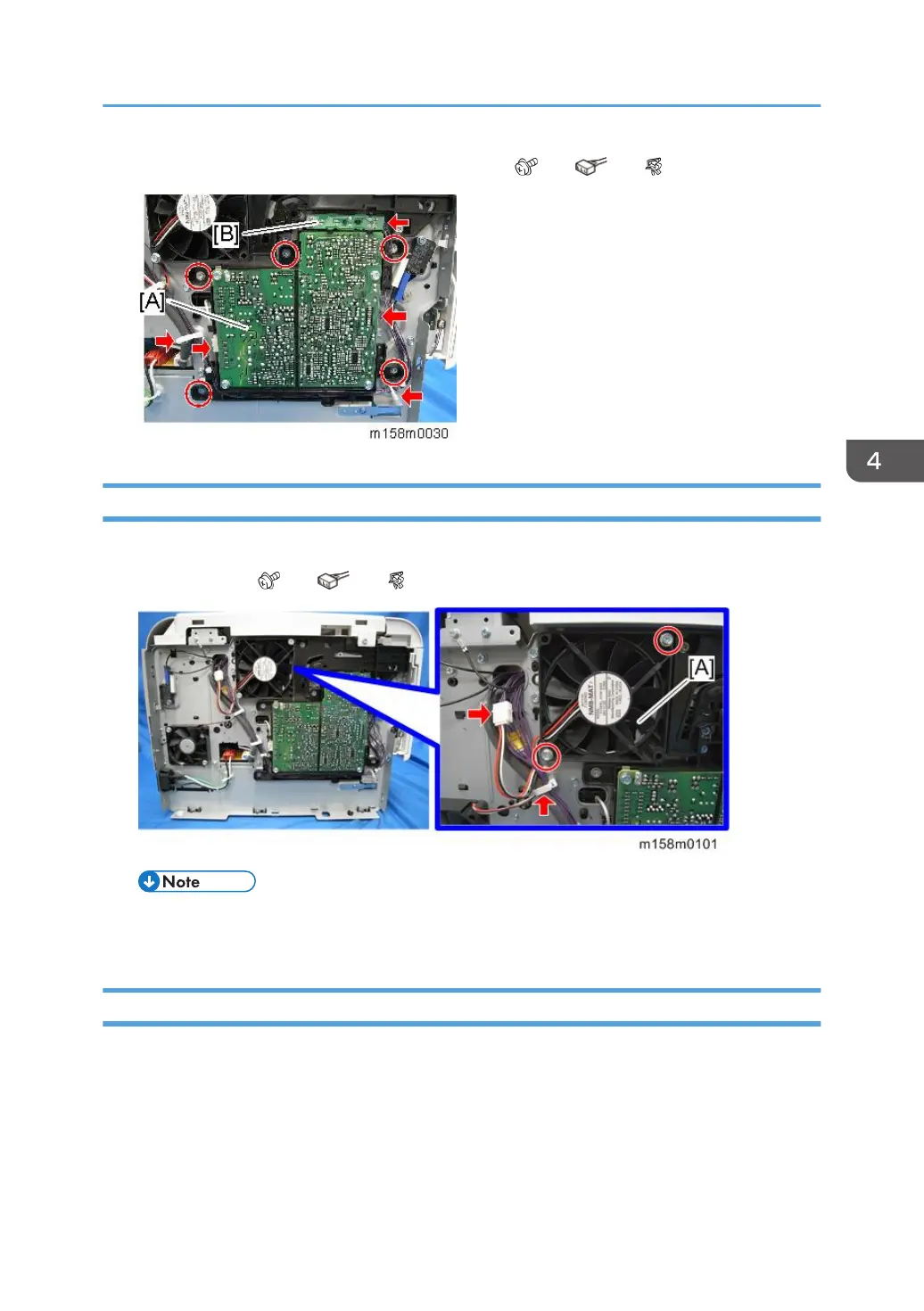

2. Toner End Sensor [B] and HVPS [A] with Bracket ( x 5, x 3, x 2)
Fusing Fan
1. Left Cover (page 37 "Left Cover")
2. Fusing Fan [A] ( x 2, x 1, x 1)
• When you reattach the Fusing Fan, attach it correctly (as shown above, the face of the fan
with the sticker is on the outside).
PCDU Cooling Fan
1. Right Cover (page 39 "Right Cover")
Electrical Components
99
