Common Procedures
SM 1 D429
D429 Internal
Finisher
Type C2550
1. REPLACEMENT AND ADJUSTMENT
1.1 COMMON PROCEDURES
 The finisher must be removed from the machine for these procedures except
"Output Tray Lower Cover" removal procedure. The following covers cannot be
removed while the finisher is attached to the machine.

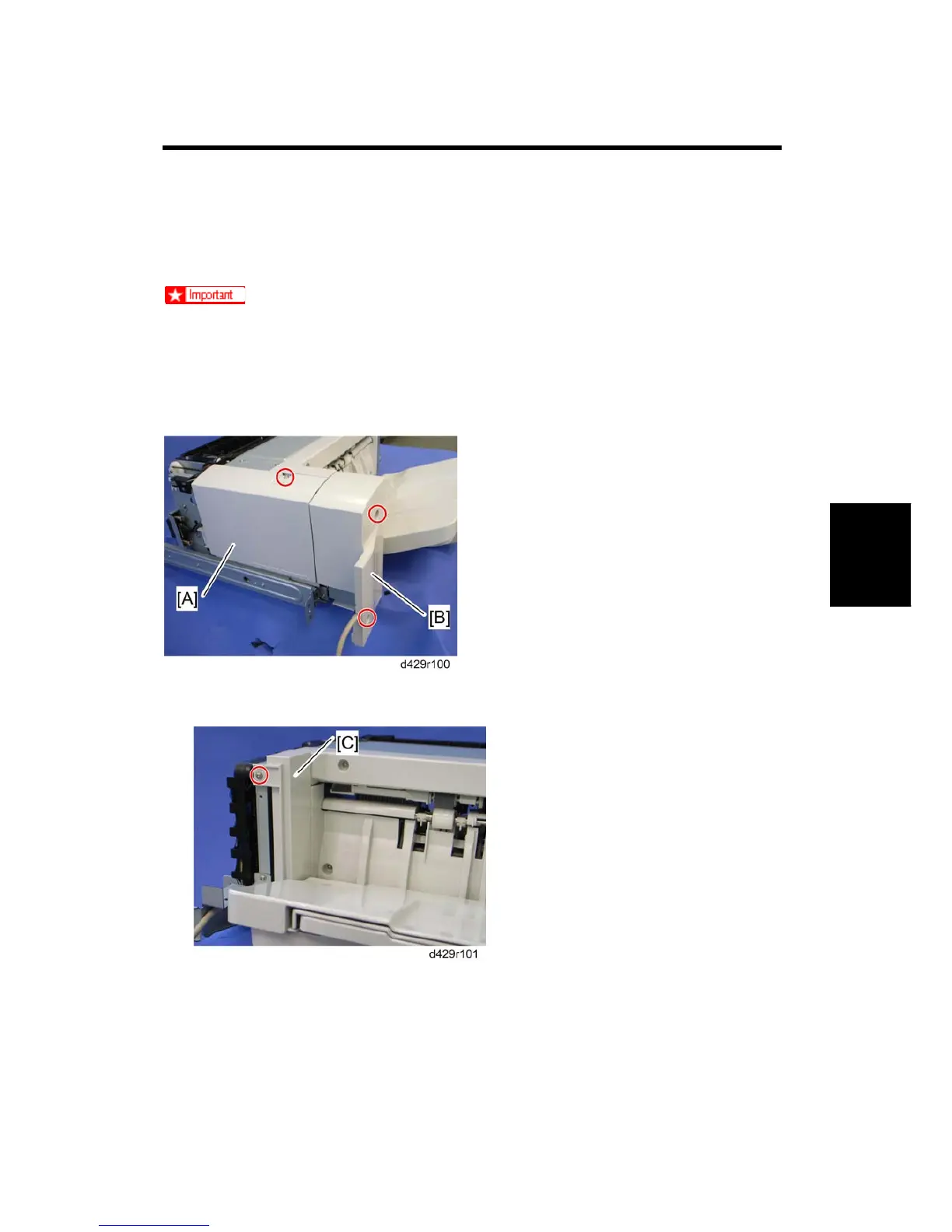

1.1.1 REAR, LEFT REAR AND REAR INNER COVER
1. Rear cover [A] ( x 1)
2. Left rear cover [B] ( x 2)
3. Rear inner cover [C] ( x 1)
To Next Page
