Paper Exit
SM 4-1
13
D037/D038/D040/D041
Repla
cement
& Adjustment
4.

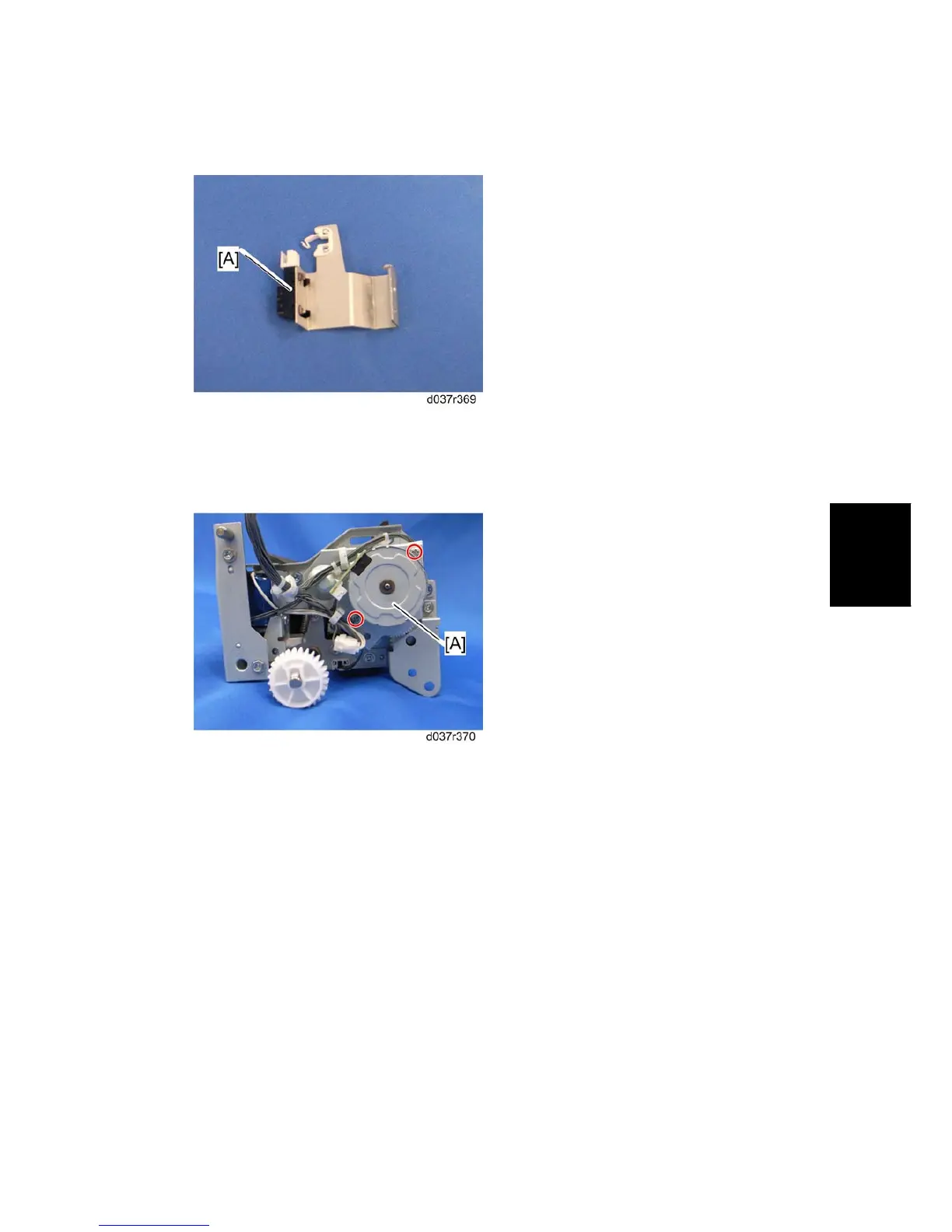

Move the sensor assembly [A] to
the cutout [B], and then remove it (
=
x1
,
x 1)
5.
Inverter sensor [A] (hooks)
4.13.6 INVERTER
MOTOR
1.
Paper exit unit (
Section: Paper Exit Unit)
2.
Inverter motor [A] (
x 2,
x 1)
282
284
