Electrical Components
SM 4-133 D037/D038/D040/D041
Replacement
& Adjustment
4.15.9 HVPS: TTS BOARD
1. Rear cover ( Section: Rear Cover)
2. Open the controller box ( Section: Controller Box)

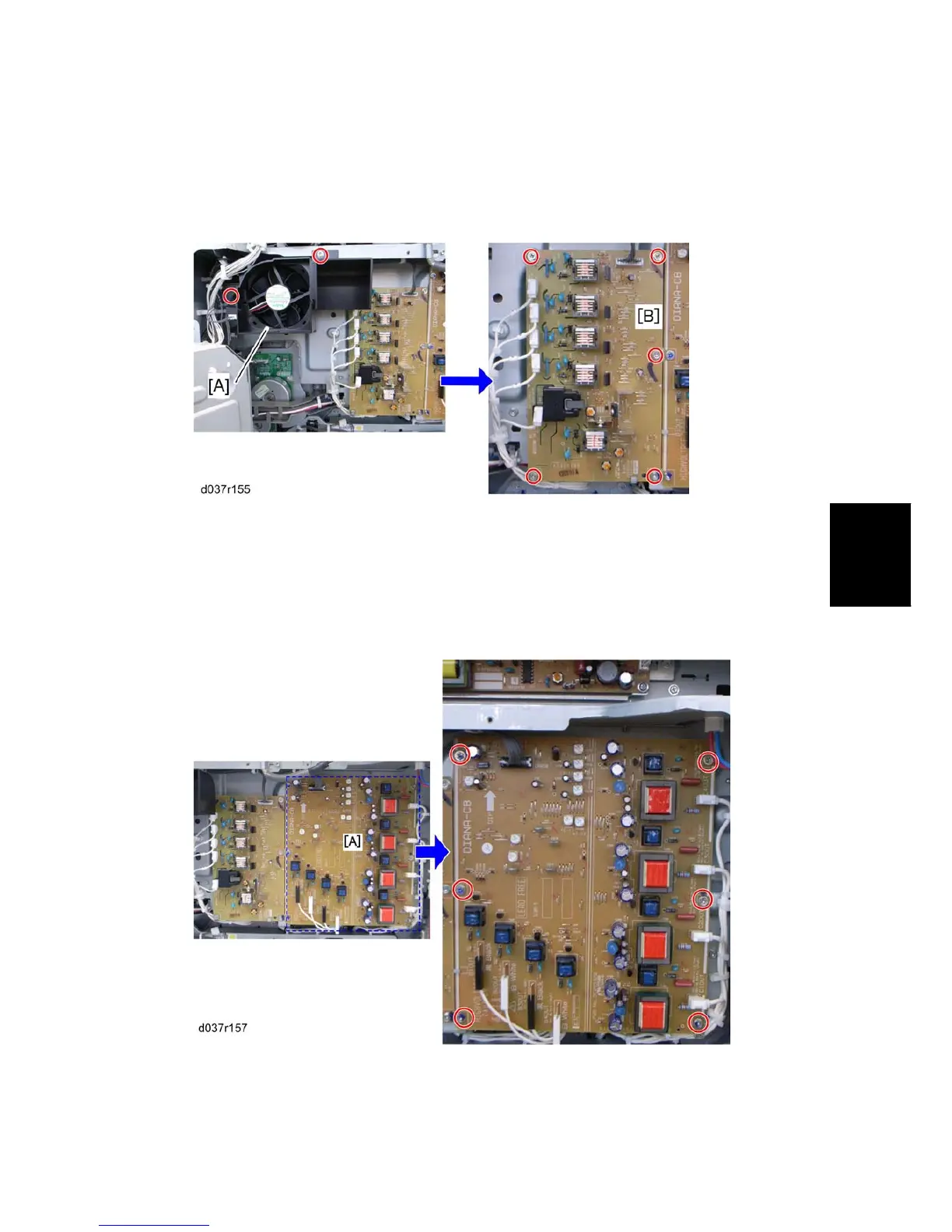

3. Fusing rear fan [A] ( x 2, = x 1, x 1)
4. HVPS: TTS board [B] ( x 5, x all)
4.15.10 HVPS: CB BOARD
1. Rear cover ( Section: Rear Cover)
2. Open the controller box ( Section: Controller Box)
3. HVPS: CB board [A] ( x 6, All s)
