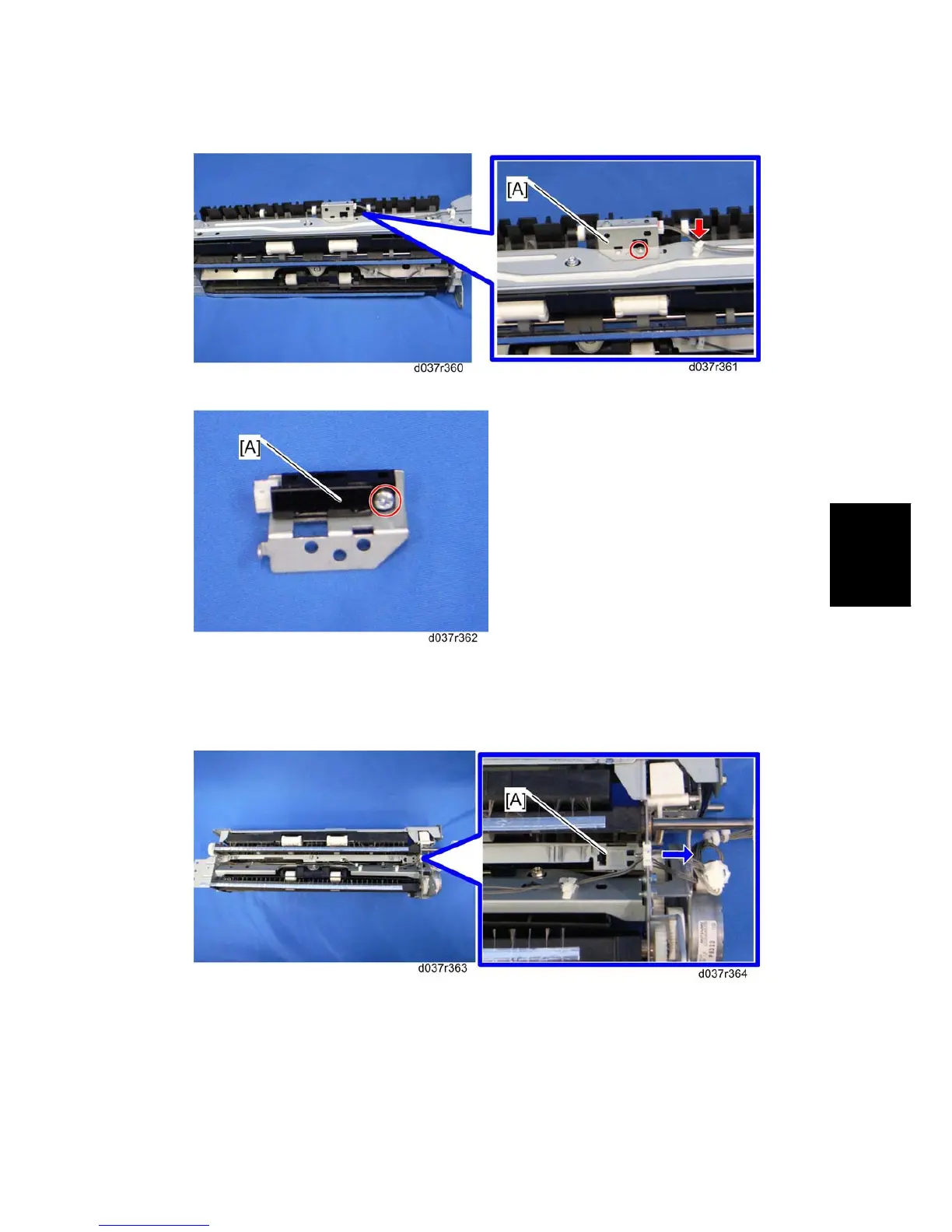

Paper Exit
SM 4-1
1
1
D037/D038/D040/D041
Repla
cement
& Adjustment
2.
Sensor assembly [A] (
x 1,
=
x 1,
x 1)
3.
Fusing exit sensor [A] (
x 1)
4.13.4 PAPER
EXIT
SENSOR
1.
Paper exit unit (
Section: Paper Exit Unit)
2.
Paper exit sensor [A] (hooks,
x 1)
280
282
