Drive Unit
SM 4-77 D037/D038/D040/D041
Replacement
& Adjustment
 Do not remove the PCDUs when you replace the drum motor-CMY.
1. Rear cover ( Section: Rear Cover)
2. Rear lower cover ( Section: Rear Lower Cover)
3. Open the controller box ( Section: Controller Box)

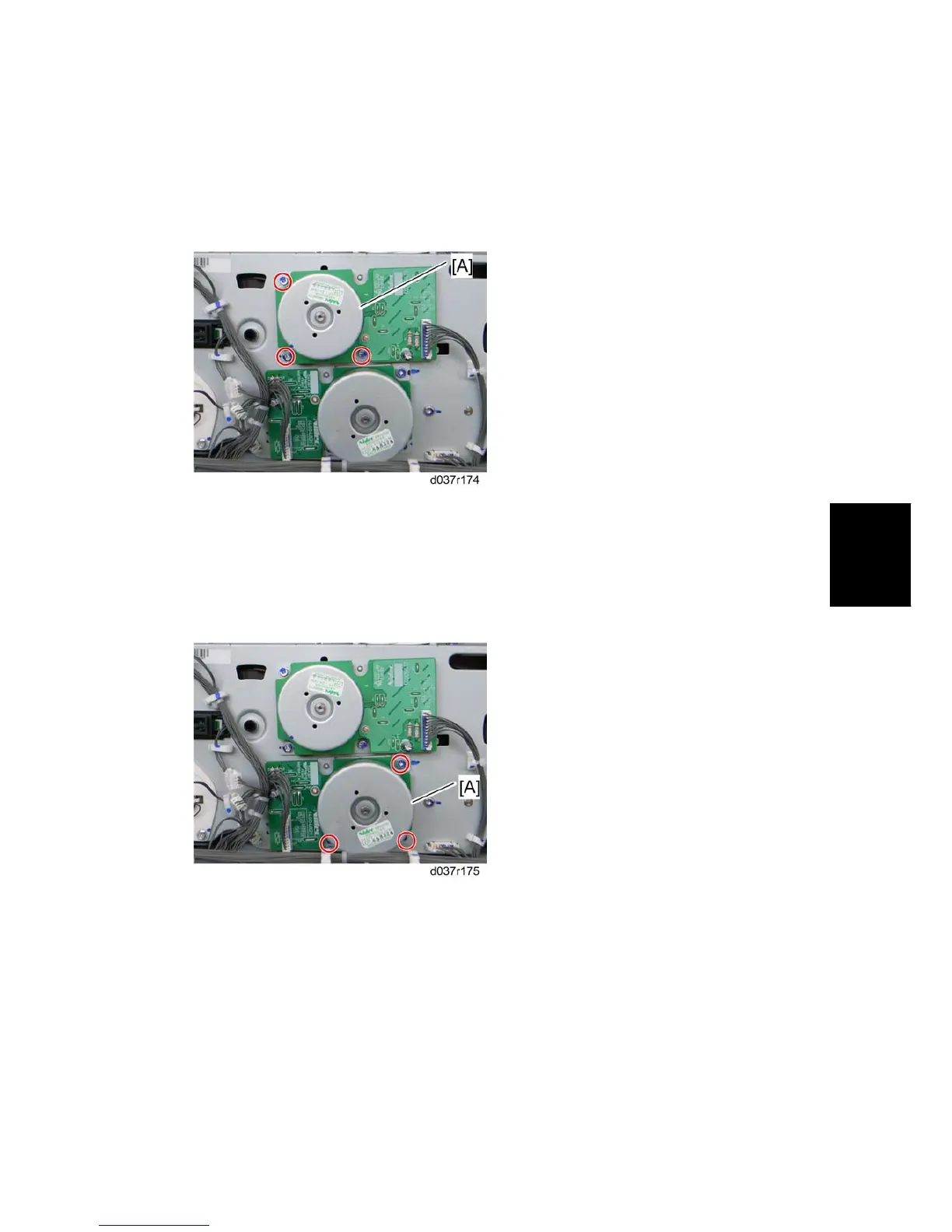

4. Drum motor: CMY [A] ( x 3,  x 1)
4.10.6 DEVELOPMENT MOTOR: CMY
1. Rear cover ( Section: Rear Cover
2. Rear lower cover ( Section: Rear Lower Cover)
3. Open the controller box. ( Section: Controller Box)
4. Development motor: CMY [A] ( x 3,  x 1)
4.10.7 DRUM/DEVELOPMENT MOTOR: K
1. Rear cover ( Section: Rear Cover)
1. Rear lower cover ( Section: Rear Lower Cover)
2. Open the controller box. ( Section: Controller Box)
