Controller Options
SM 2-93 D037/D038/D040/D041
Installaion

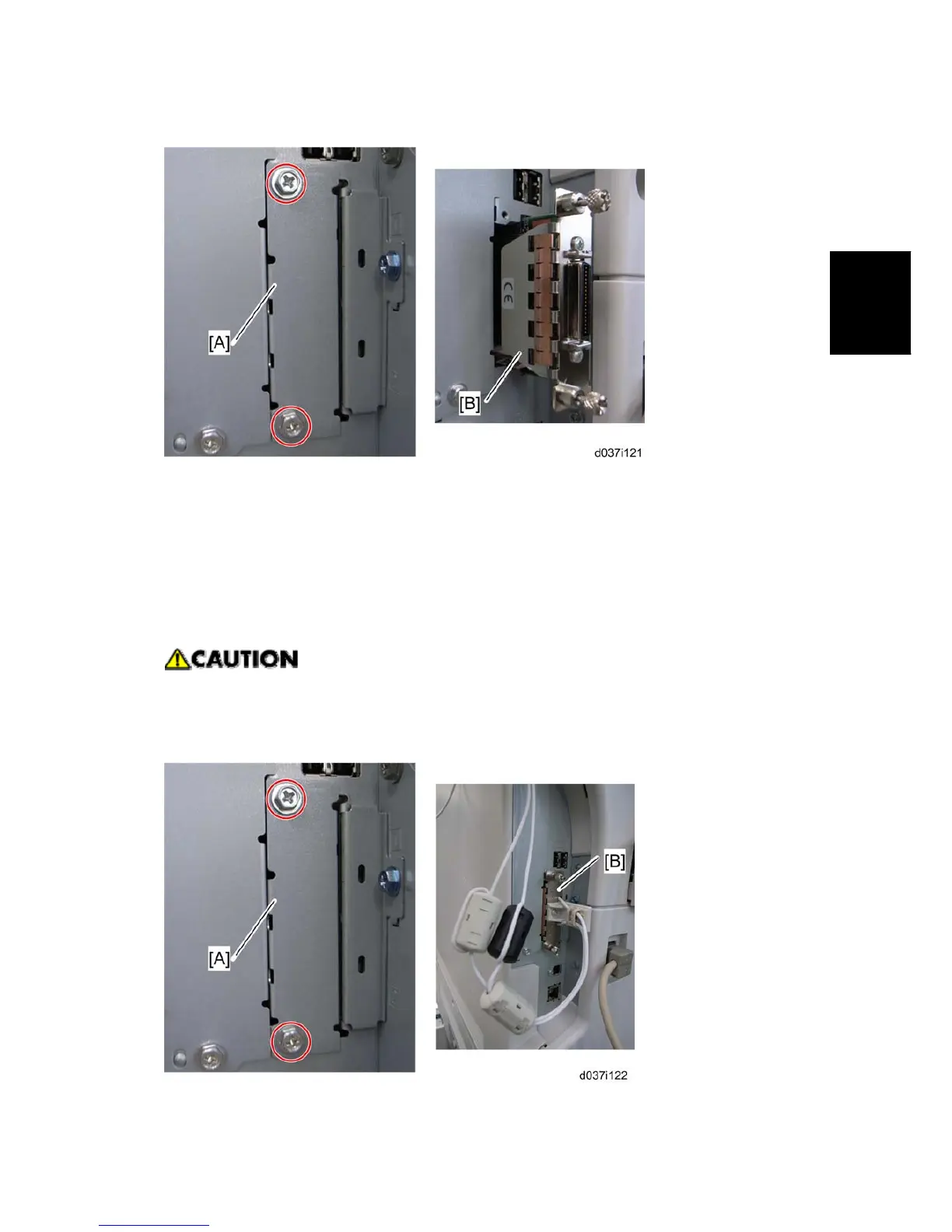

1. Remove the I/F-slot cover [A] ( x 2).
2. Install the interface board [B] (Knob-screw x 2) into the I/F-slot.
3. Make sure that the machine can recognize the option (see ‘Check All Connections’ at
the end of this section).
2.22.6 IEEE 802.11 A/G, G (WIRELESS LAN: D038/D041 ONLY)
Installation Procedure
 Unplug the main machine power cord before you do the following procedure.
You can only install one of the following network interfaces at one time: (IEEE 802.11 a/g, g
(Wireless LAN), IEEE1284, Bluetooth).
To Next Page
