Scanner Unit
D037/D038/D040/D041 4-34 SM
4.5.8 PLATEN COVER SENSOR
1. Scanner rear cover ( Section: Exposure Lamp)

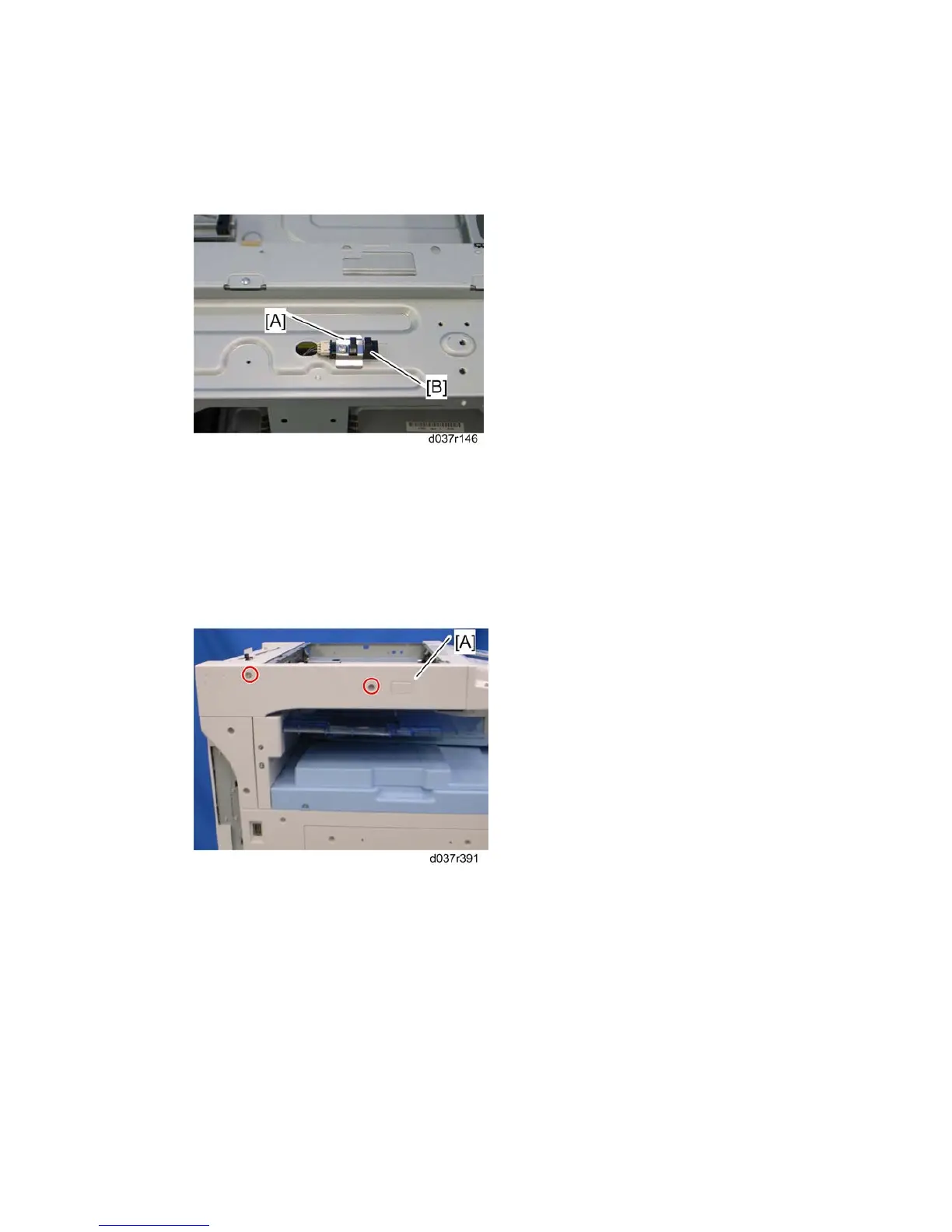

2. Holder bracket [A] ( x 1)
3. Platen cover sensor [B] ( x 1)
4.5.9 FRONT SCANNER WIRE
1. Rear Cover ( Section: Rear Cover)
2. Operation panel ( Section: Operation Panel)
3. Exposure glass ( Section: Exposure Glass)
4. Scanner left cover [A] ( x 2)
To Next Page
