Electrical Components
D331 8 SM

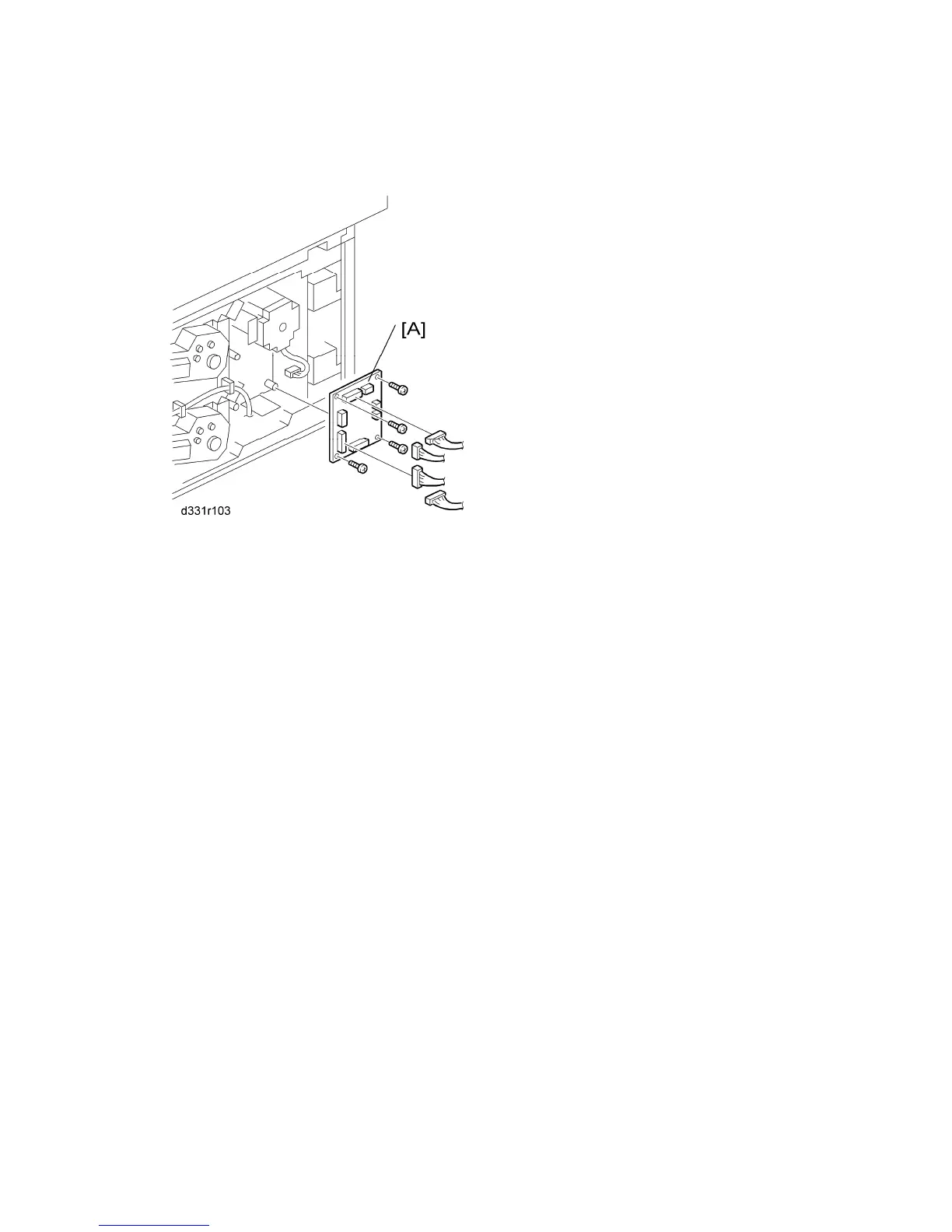

1.3.4 TRAY MAIN BOARD
1. Rear cover ( "Covers")
2. Tray main board [A] ( x 4, all 's)
