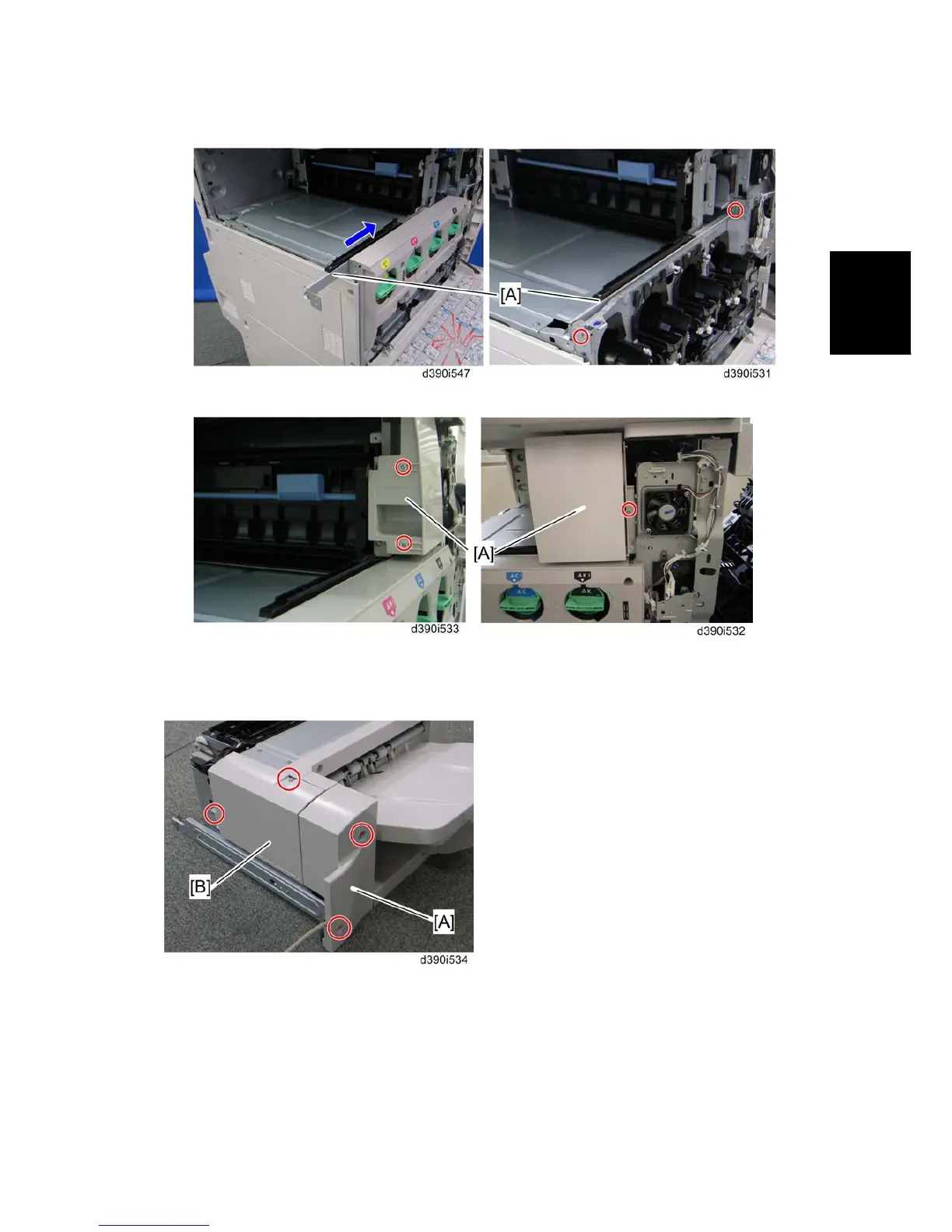

Punch Unit (D390)
SM 2-55 D037/D038/D040/D041
Installaion
5. Install the guide rail [A] on the front edge of the inner bottom plate ( x 2).
6. Install the punch cover [A] ( x 3: M3x6).
Preparing the Internal Finisher
1. Remove the left rear cover [A] and the rear cover [B] of the internal finisher ( x 2
each).
