1-Bin Tray Unit (D426)
SM 2-39 D037/D038/D040/D041
Installaion

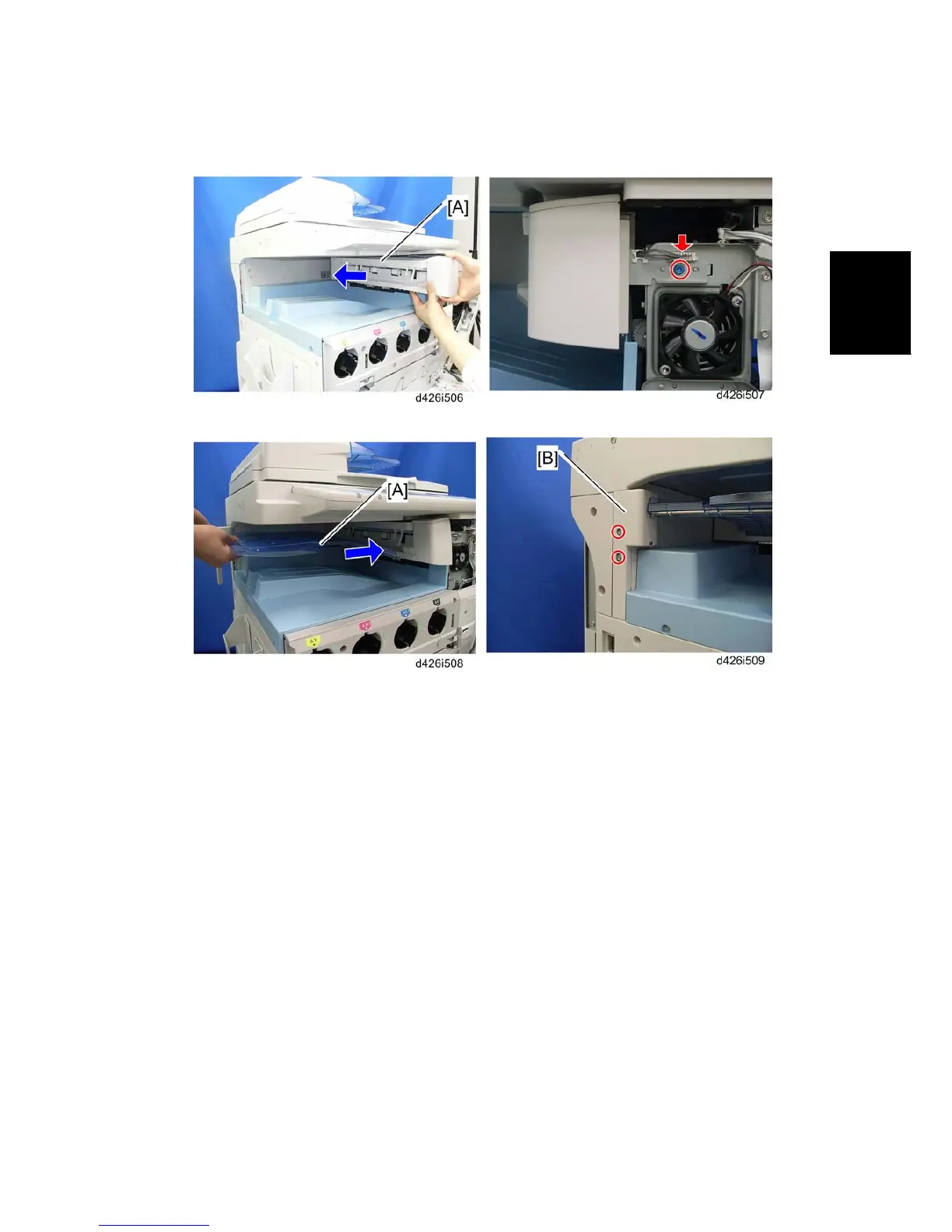

7. Remove the left frame cover [B] ( x 1).
8. Install the 1-bin tray unit [A] ( x 1: M3x6 blue, x 1).
9. Install the tray [A] (with the tray support bar) in the machine.
10. Attach the tray support cover [B] ( x 2: M3x8 in the accessories and one screw
removed in step 7).
11. Reassemble the machine.
12. Turn on the main power switch of the machine, and check the 1-bin tray unit operation.
