Ricoh Scanner User Manual

Items for Specifying Scan Settings
111
6

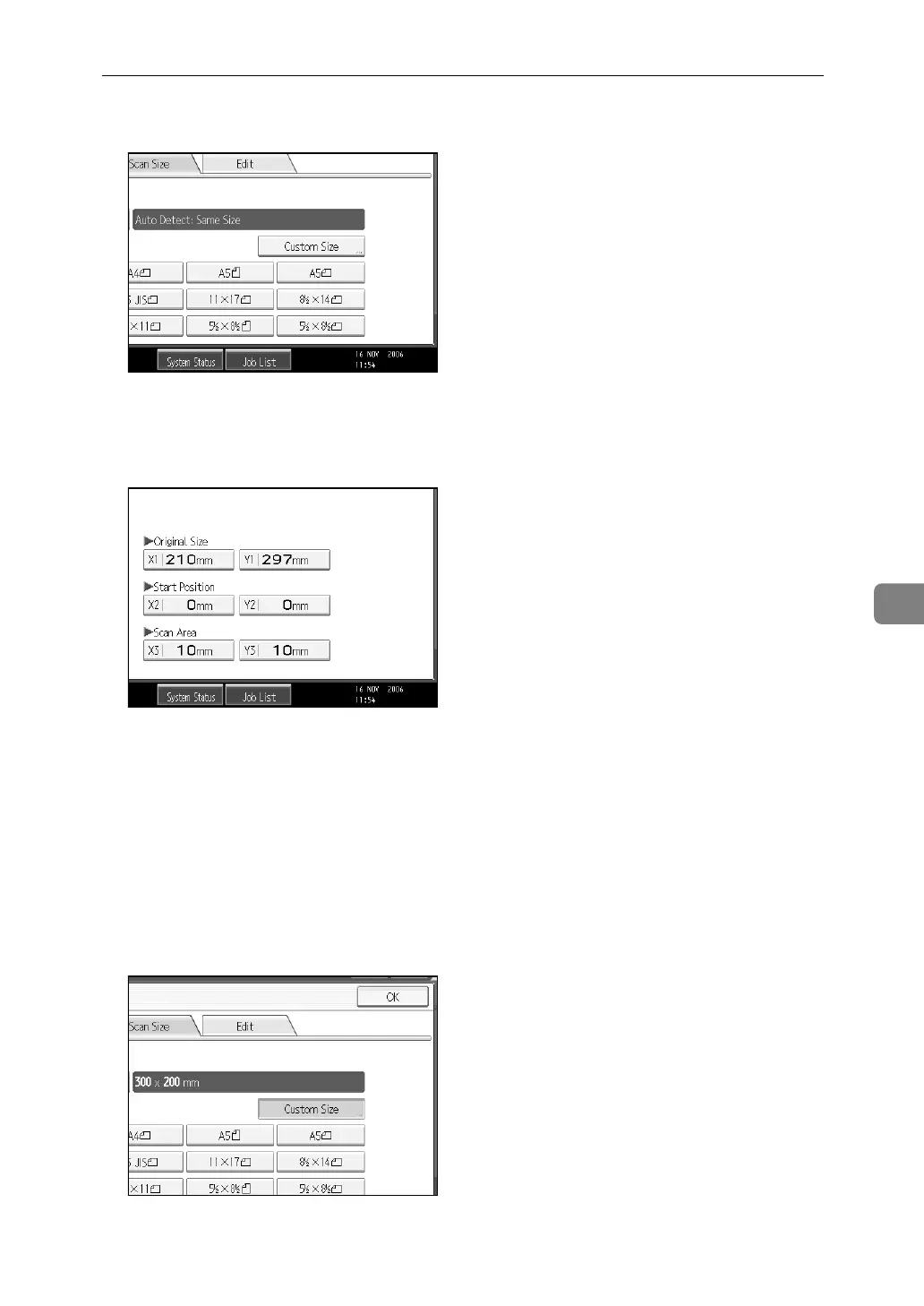

C Press [Custom Size].
D Specify Original Size (X1 and Y1) using the number keys, and then press
{q}.
For example, set X1 to 300 mm and Y1 to 200 mm.
E Set Start Position (X2 and Y2) to 0 mm, and then press {q}.
For example, set X2 and Y2 to 0 mm, and press {q}.
F Specify Scan Area (X3 and Y3) using the number keys, and then press {q}.
For example, set X3 to 300 mm and Y3 to 200 mm.
G Press [OK].
H Check Scan Area (X3 and Y3) displayed above [Custom Size], and then press
[OK].
