4.5 PAPER FEED
4.5.1 PAPER FEED ROLLER
1. Pull out the standard paper tray.
2. Front cover (page 4-3 "Front Cover")
3. AIO

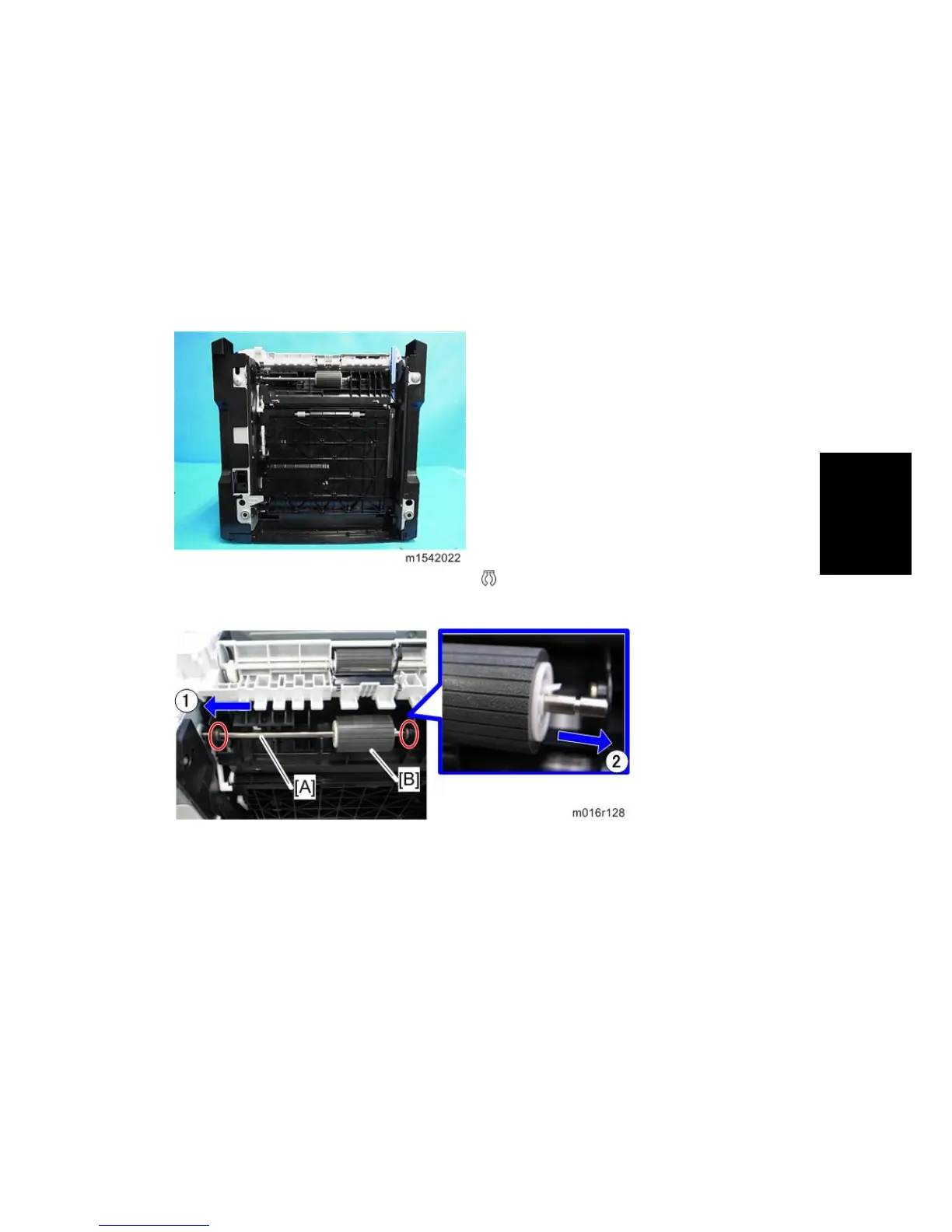

4. Set the machine with the rear side facing down, resting on the table.
5. Slide the paper feed shaft [A] to the left side (
x 2).
6. Slide the paper feed roller [B] to the right side, and remove it (hook).
After installing a new paper feed roller
1. Enter the "Printer Configuration" in the SOM.
2. Select the "SP Mode 3" tab.
3. Click "Clear Paper Feed Roller EM Counter" and then click "OK".
4. Exit the SOM.
