Electrical Components
SM 4-43 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment
Replacement Procedure M154/M155/M147/M175

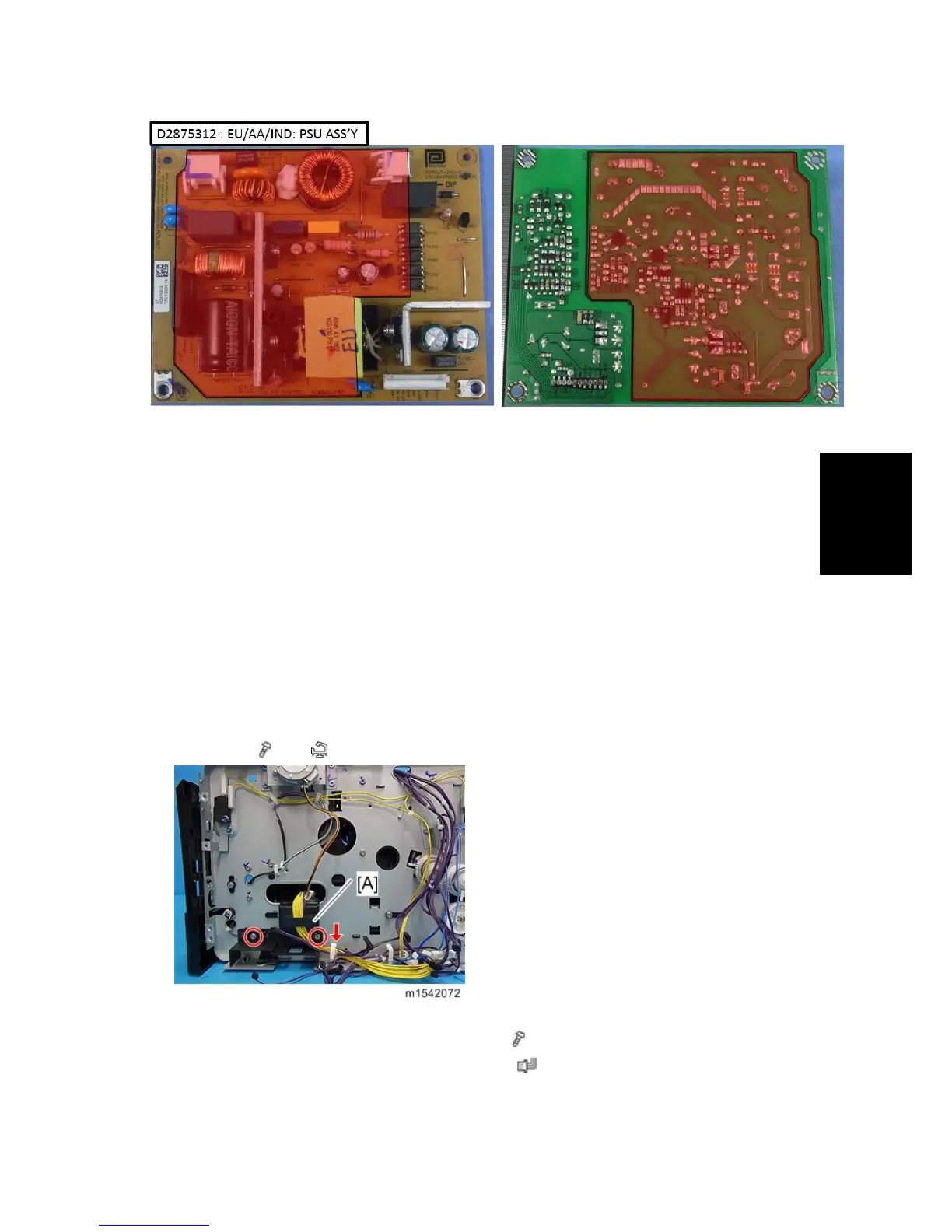

1. Pull out the standard paper tray.
2. Front cover (page 4-3 "Front Cover")
3. Rear cover (page 4-7 "Rear Cover")
4. Left cover (page 4-5 "Left Cover")
5. Right cover (page 4-8 "Right Cover")
6. Top cover (page 4-10 "Top Cover")
7. Main board (page 4-40 "Main board")
8. Drive unit (page 4-37 "Drive Unit")
9. Bracket [A] (
x 2, x 1)
10. Disconnect three connectors on the left frame.
11. Main power switch bracket [A] on the right frame (
x 2)
12. Remove the main power cord [B] as shown below(
x 2, ground screw x 1).
