Ricoh SP 310DN User Manual

Paper Feed
SM 4-17 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment
4.5.4 BY-PASS FEED ROLLER
1. Front cover (page 4-3 "Front Cover")
2. Left cover (page 4-5 "Left Cover")
3. Right cover (page 4-8 "Right Cover")
4. Pull out the paper tray.

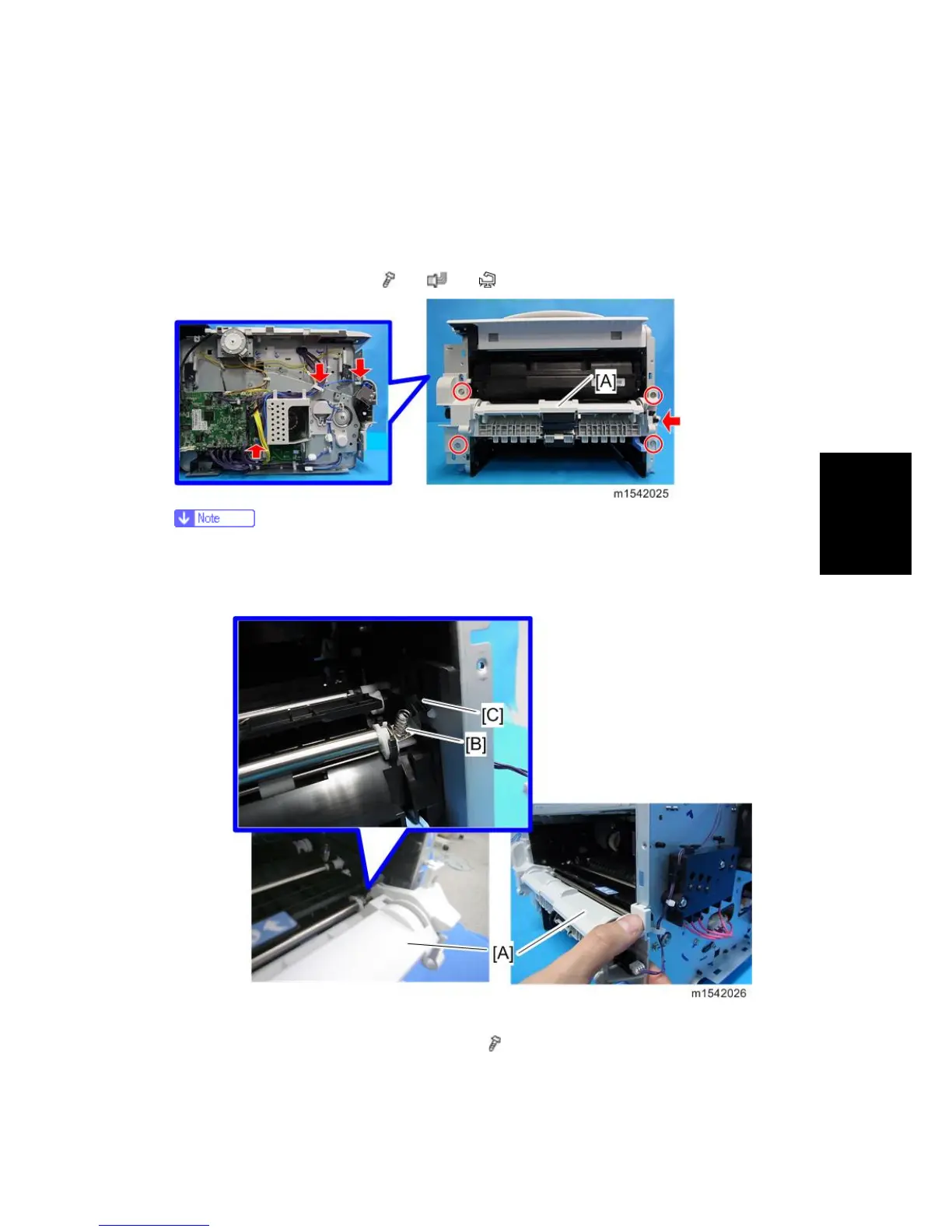

5. By-pass lower guide plate [A] (
x 4, x 2, x 2)
 Reinstall the by-pass lower guide plate [A] while pressing the spring [B].
 Be careful that the spring [B] and the ground plate [C] do not fall inside the machine
during reinstallation.
6. By-pass upper guide plate [A]
7. By-pass solenoid cover, by-pass solenoid [B] (
x 1)
8. Gear [C] (hook)
