Ricoh SP 310DN

Image Transfer
SM 4-27 M154/M155/M174/M175/A0A7/M287/M0BB
Replacement
and Adjustment
4.6.3 QUENCHING LAMP
1. Front cover (page 4-3 "Front Cover")
2. Top cover (page 4-10 "Top Cover")
3. AIO

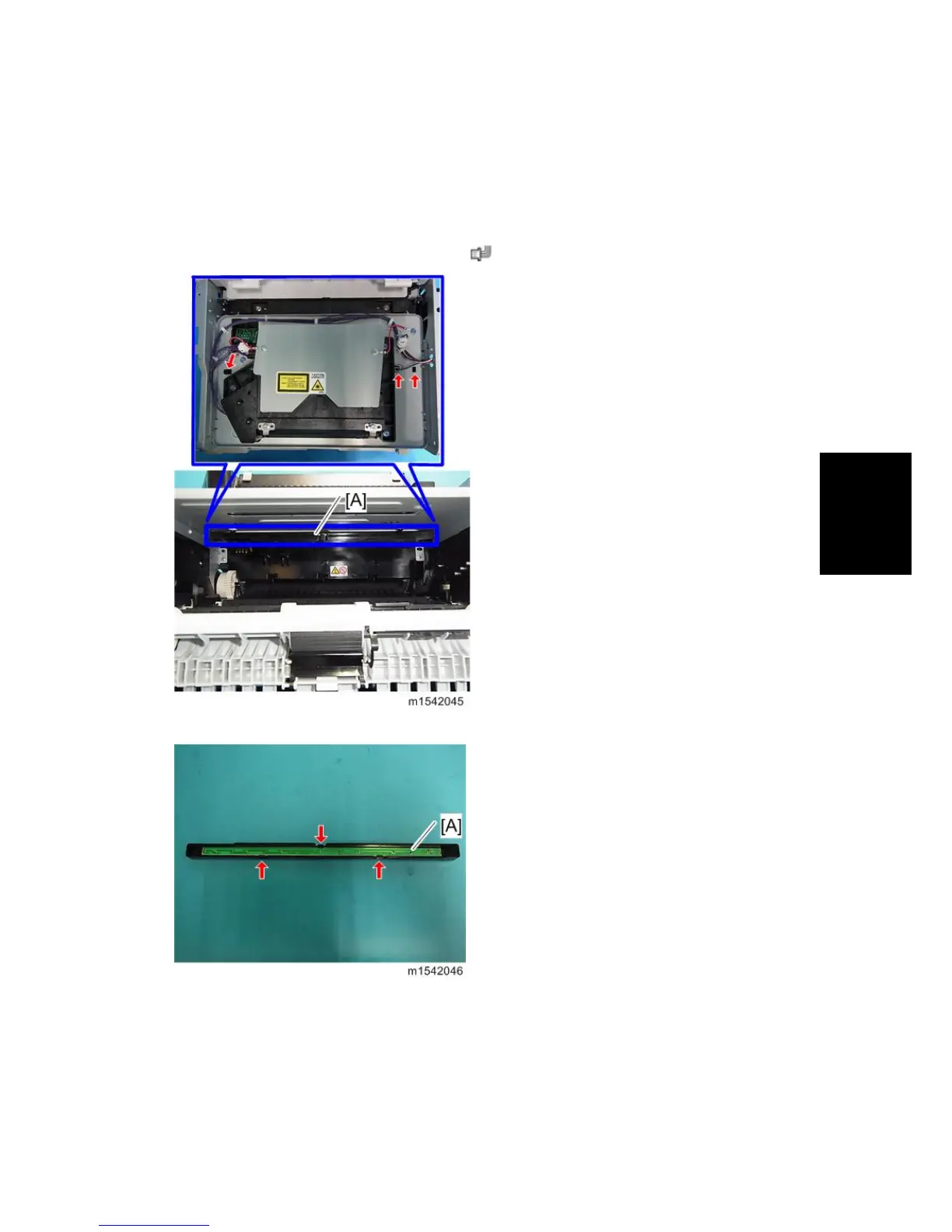

4. Quenching lamp with the case [A] (2 hooks,
x 1).
5. Remove the quenching lamp [A] from the case (3hooks).
